- Type:
- Rock Splitter
- Applicable Industries:
- Farms, Construction works , Energy & Mining
- Condition:
- New
- Motor Type:
- DC Motor, AC motor
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Dimension(L*W*H):
- 450*410*700MM
- Certification:
- ISO9001
- Warranty:
- 1 Year
- After-sales Service Provided:
- Free spare parts, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, No after-sales service
- Name:
- Rock Splitter
- Depth:
- 300-800mm
- Work Flow:
- 5m
- Working Pressure:
- 55-60Mpa
- Capacity of tank:
- 25-45L
- Application:
- Stone, concrete
- Working Medium:
- 46 or 68 anti-wear
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 35X50X60 cm
- Single gross weight:
- 68.0 kg
- Package Type:
- export standard wooden box
- Lead Time:
Quantity(Set) 1 - 1000 >1000 Est. Time(days) 7 To be negotiated

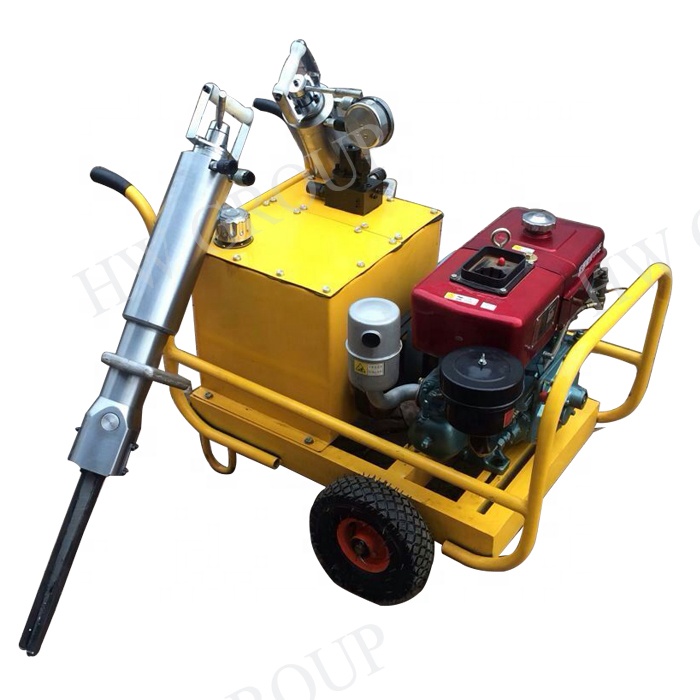

Darda type hydraulic rock splitter / stone used rock splitterRock+splitterfeather wedge machine with gasoline engine
Rocksplitter is our newly developed Product which is a powerful and extremely cost-effective alternative to other conventional demolition tools. Rock splitter can develop a very huge splitting force (Maximum 1000T) when it put into the pre-drill holes of rock or concrete, and crack it into pieces within several seconds.
Now it is widely used in mineral mining (cave mining), civil engineering construction and demolition.
It is also an indispensable tool in construction, river dredging, salvation etc. Our main Models of hydraulic pump and cylinder are as follows. If you are interested in, please let us know which type of pump and cylinder you need. We will offer a very competitive price for you.
SPECIFICATIONS FOR ROCK SPLITTER GUN PARAMETER | |||||||||||
model | HW80-250 | HW80-350 | HW80-450 | HW90-250 | HW90-350 | HW90-450 | |||||
piston diameter | 80mm | 80mm | 80mm | 80mm | 80mm | 80mm | |||||
drilling diameter | Φ42mm | Φ45mm | Φ50mm | Φ42mm | Φ45mm | Φ50mm | |||||
drilling depth | 500mm | 550mm | 600mm | 500mm | 550mm | 600mm | |||||
cheese block length | 250mm | 350mm | 450mm | 250mm | 350mm | 450mm | |||||
crack width | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm | 10~40mm | |||||
splitting time | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s | 5~15s | |||||
Theory of separatist | 600T | 600T | 600T | 800T | 800T | 800T | |||||
The actul split force | 480T | 480T | 480T | 480T | 480T | 480T | |||||
weight | 28Kg | 29Kg | 30Kg | 31Kg | 32Kg | 33Kg |
PUMP PACK PARAMETERS | PUMP PACK PARAMETERS | ||||||||
electric motor | gasoline engine | diesel engine | |||||||
100kg | 130kg | 140kg | |||||||
40L | 65L | 40L | |||||||
4KW | 7Hp | 8HP | |||||||
55-60 | 55-60 | 60Mpa | |||||||
2-13 | 2-13 | 2-13L/min | |||||||
2-7 | 3-8 | 1-8 |
Main Features
1. The quarrying and mining industry (mining chunk of blocks, chunks of blocks divided, remove chunks of waste rock, etc.)
2.Construction engineering (tunneling, underground tunnel excavation, artificial river mining, artificial rivers, rock digging ditches, etc.)
3.Demolition works (concrete and reinforced concrete demolition, demolition of old buildings, old pier demolition, etc.)
4.Chemical, metallurgical production and overhaul works (smelting furnace overhaul, various kiln bricks construction demolition materials engineering, etc.)
5, the various rescue and relief (earthquakes, mine clearing and other work, traffic accidents rescue work)
