2. Free Spare Parts are available;
3. Engineers are available for site teaching and debugging;
4. Strong after-sales service, no worry about machine using and working;
Product Description
3m/4m/6m hydraulic rotary press piling machine is multifunctional pile driving machine for mine, with 360 degrees of freedom to rotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.
Construction engineering hydraulic pile driving machine sale in Vietnam market
Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion, high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the national quality the first, market share rate of the first brand.
Construction engineering hydraulic pile driving machine sale in Vietnam market
Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion, high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the national quality the first, market share rate of the first brand.
Model | HWL600R | Remark | ||||
Hammer impact | 780J | Joule,we can make more powrful impact as your demand | ||||
Pile length | 0-6000 | mm | ||||
Duplex gear pump pressure | 20 | Mpa | ||||
Duplex gear pump displacement | 40 | ml/r | ||||
Hydraulic system pressure | 20 | Mpa | ||||
Main valve flow | 120 | L/Min | ||||
Overall Machine weight | 6 | T | ||||
Diesel engine power | 80 | KW | ||||
Rated Speed | 2400 | R/min | ||||
Starting Voltage | 24 | V | ||||
Rotation angle | 360 | ° | ||||
Rotation semi diameter(rotating shaft to Pod distance) | 1925 | mm | ||||
Effective press pile stroke | 0.-3000 | mm | ||||
Dimension(LXWXH) | 6200×2200×2850 | mm | ||||
Track shoe | 350 | mm | ||||
Walking motor total displacement | 1575 | ml/m | ||||
Walking motor rated pressure | 18 | Mpa | ||||
Walking motor output torque | 4300 | N.M | ||||
Walking motor rotate speed | 50 | r/min | ||||
Press Pile Diameter | 0-600 | mm | ||||
Drilling Depth | 0-6000 | mm | ||||
Operating Speed (m/min) | 1.5 | 90s/per pile | ||||
Number of impacts / strokes per 1 minute | 900 | times/min | ||||
Maximum lengh of Piles to be rammed | 6 | M | ||||
Walking speed | 5-10 | Km/hr | ||||
Gradeability | 0-35 | ° | ||||
Oil tank capacity | 200 | L | ||||
Hydraulic tank capacity (L) | 500 | L | ||||

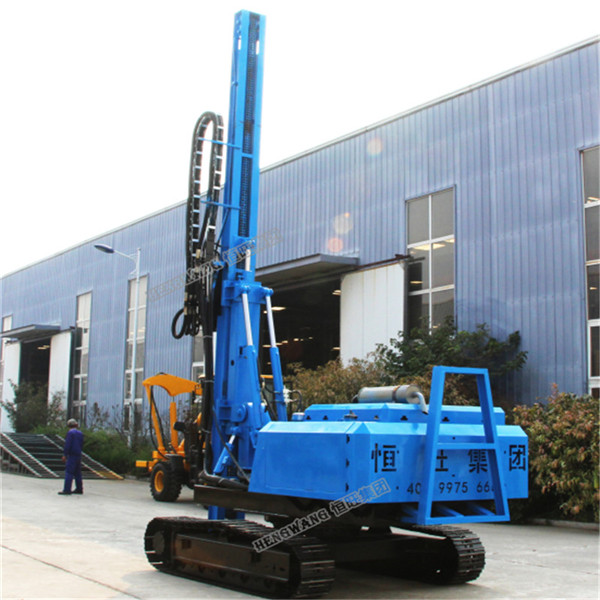

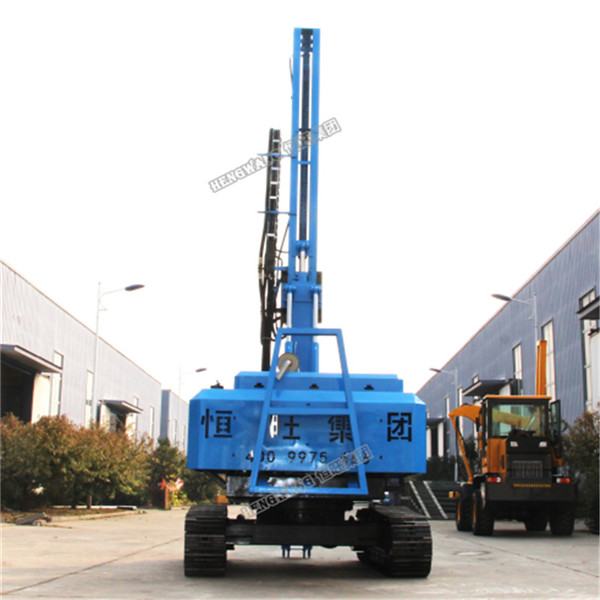

Detailed Images
Related Products
Packing&Shipping
After Sales Service
Engineer in Customer Working Site
1. we machine warranty is one year;
