Hydraulic lifting platformPortable electric mid-rise scissor car lift chinaPortable electric mid-rise scissor car lift china

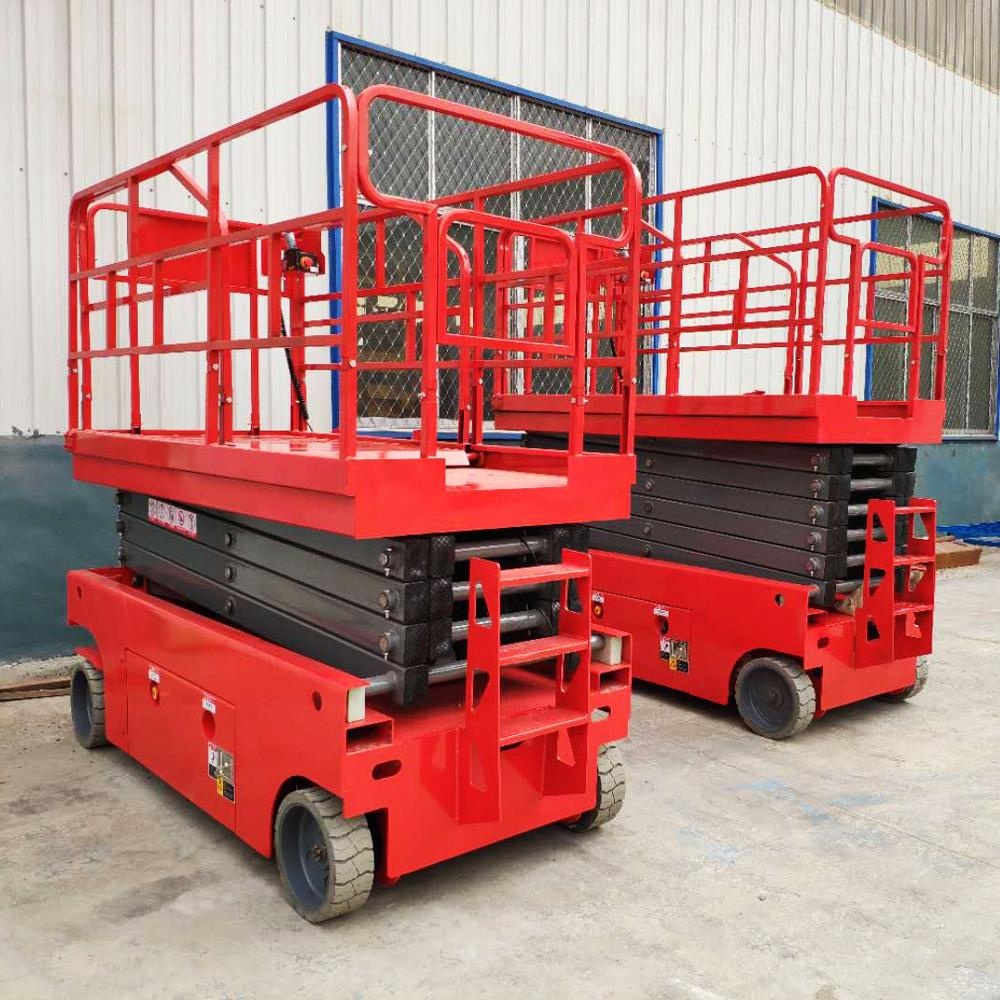

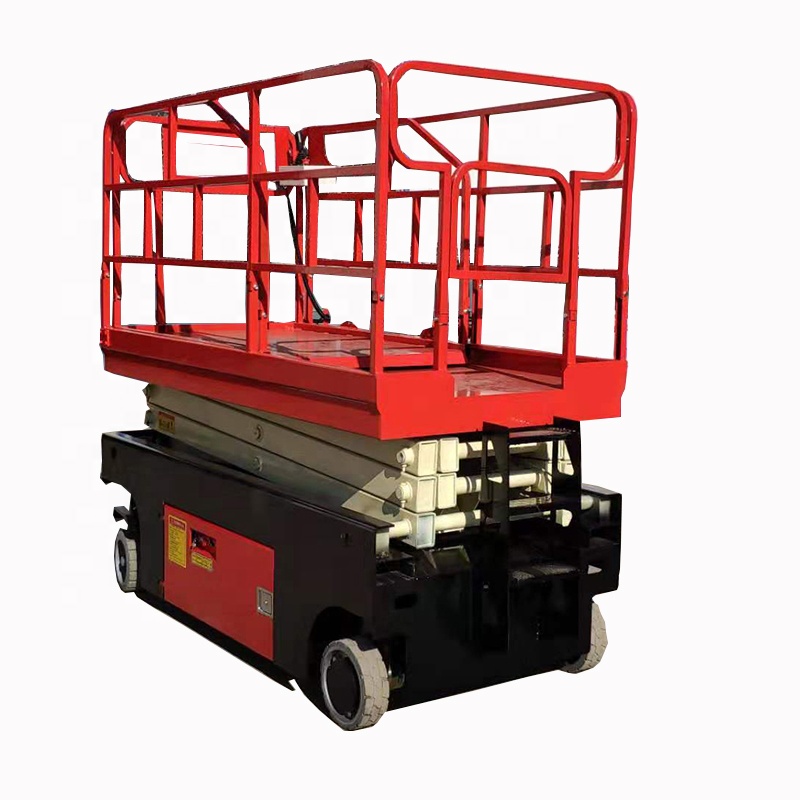

The self-propelled walking platform has the functions of walking and lifting. The steering wheel is used to control the walking direction. The walking speed can be adjusted and the brake device is installed. Battery-driven DC motor can be used for walking and lifting, alternating current motor or diesel engine can also be used for walking and lifting, and radio electronic remote controller can be used for lifting and lifting, without manual traction, without external power supply, flexible and convenient movement, which makes high-altitude operation more convenient and fast, and is an ideal high-altitude operation equipment for modern enterprises with high efficiency and safe production.
Fully self-propelled lifting platform has the function of automatic walking. It can walk fast and slowly under different working conditions. Only one machine can be operated at high altitude to complete continuous movements such as long drop, forward, backward and steering. Compared with traditional hydraulic platform, it greatly improves working efficiency, reduces the number of operators and labor intensity. Suitable for airport terminal, station, wharf, shopping mall, stadium, residential property, factory and mining workshop and other large-scale high-altitude continuous operation.
SPECIFICATIONS FOR HYDRAULIC LIFTING PLATFORM | ||||||
Safety working load | 320kg | Minimum turning radius (inner wheel) | 0 | |||
Maximum number of workers | 2 | inimum turning radius (outer wheel) | 2.2m | |||
Maximum working height(A) | 6m | Lifting Motor/Driving Motor | 24v/3.0kw | |||
Maximum Platform Height(B) | 4m | Machine speed (closed state | 3.5km/min | |||
Machine size | 2300*1100*1500mm | Machine speed (hoisting state) | 0.8km/min | |||
Working platform size | 2400mm*1170mm | Up/Down Speed | 80/90 sec | |||
Minimum ground clearance (closure state) | 0.1m | Battery | 4×6V/250Ah | |||
Minimum ground clearance (lifting status) | 0.019m | Charger | 24v/25A | |||
Wheelbase | 1.89m | Max Climb Capability | 25% | |||
Maximum allowable working angle (indoor/outdoor) | 2°/3° | tyre | φ381*127 | |||
Main Features
1. The pedal lifting platform can be spread out to the operating point at high speed.
2. The foldable fence reduces the volume of the whole body.
3. Minimum turning radius (inner wheel 0m) and compact design are convenient to operate in narrow space.
4.25% climbing ability, can climb the slope smoothly;
5. Rotary chassis is easy to maintain.
6. Fault code display is convenient for maintenance.
