2. Free Spare Parts are available;
3. Engineers are available for site teaching and debugging;
4. Strong after-sales service, no worry about machine using and working;
Overview
Quick Details
- Piling Speed(m/min):
- 1m/min
- Efficiency:
- 200pics per day
- After-sales Service Provided:
- Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
- Warranty:
- 1 Year
- Applicable Industries:
- Retail, Construction works
- Condition:
- New
- Place of Origin:
- Shandong, China
- Brand Name:
- HW
- Weight:
- 6000kg
- Dimension(L*W*H):
- 6200*2200*2850
- Certification:
- ISO
- UNIQUE SELLING POINT:
- Long lifetime
- Name:
- Piling Machine
- Usage:
- Pressing Pile
- Pile Length:
- 6m
- Hammer impact:
- 780J
- Hydraulic hammer weight:
- 230 KGS
- Impacting frequency:
- 500-900 bpm
- Operating Speed (m/min):
- 90s/per pile
Product Certification Verified
- CE Certified.
Supply Ability
- Supply Ability:
- 1000 Set/Sets per Year Hydraulic solarhammer pile post driver machine for Indonesia,
Packaging & Delivery
- Packaging Details
- 40GP FOR Hydraulic solarhammer pile post driver machine for Indonesia, Vietnam, Philippine
- Port
- Qingdao

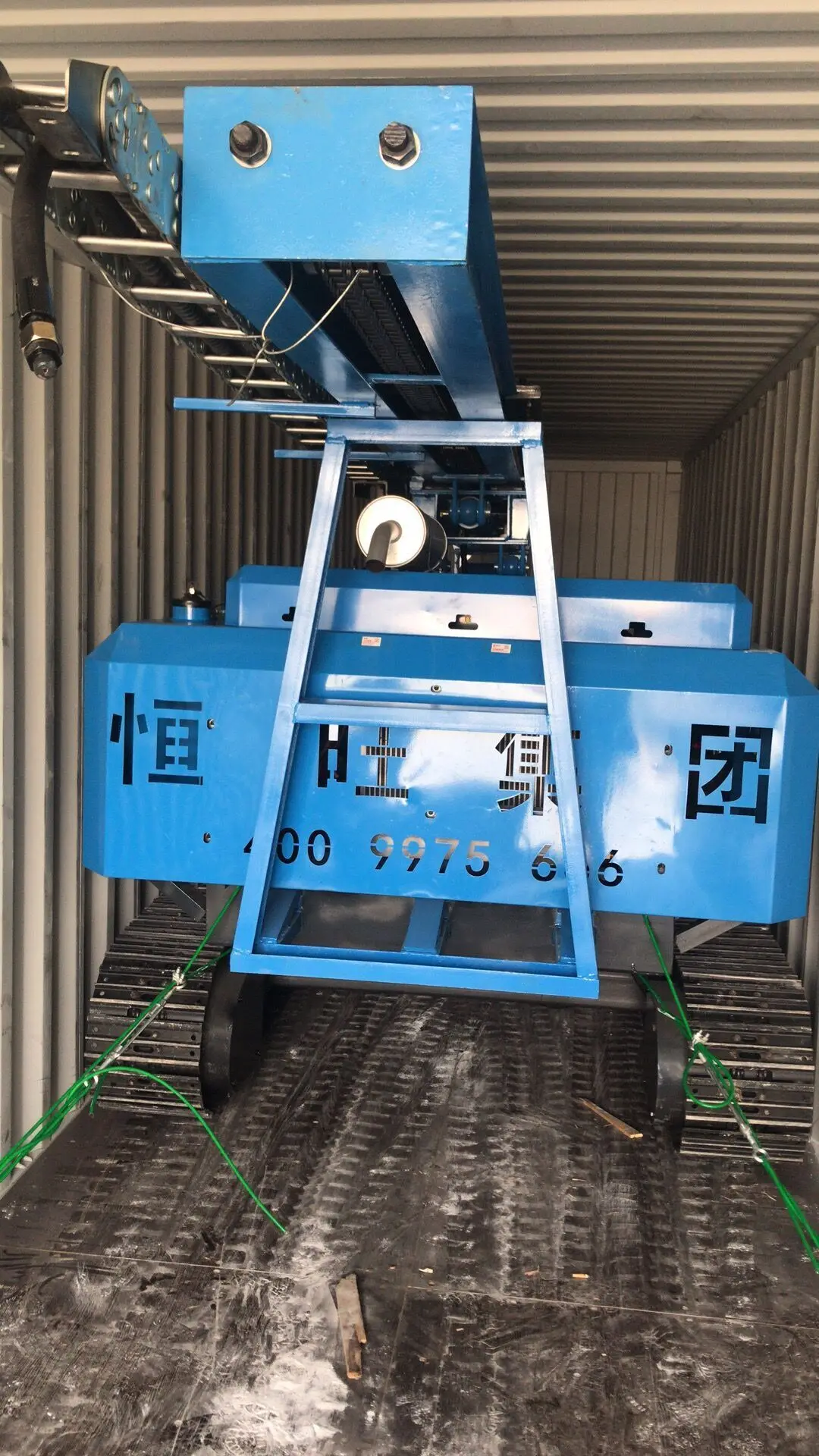

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 7 To be negotiated
Product Description

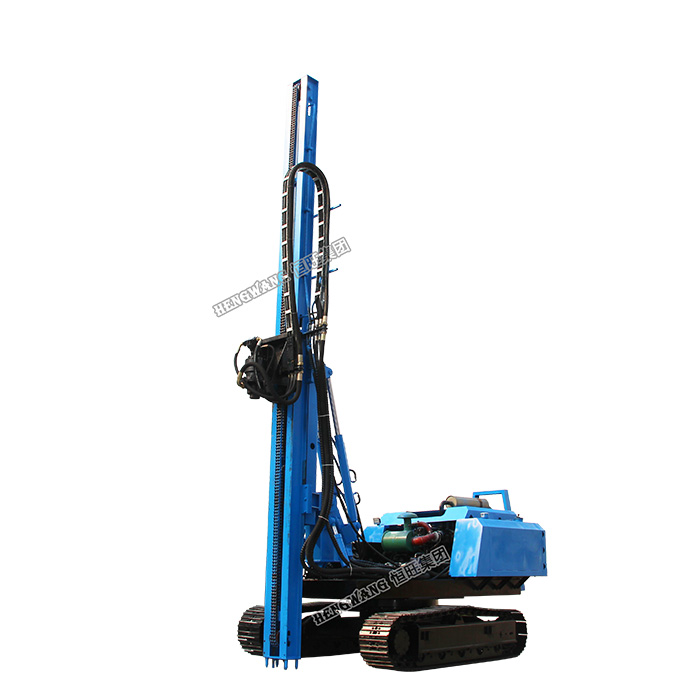

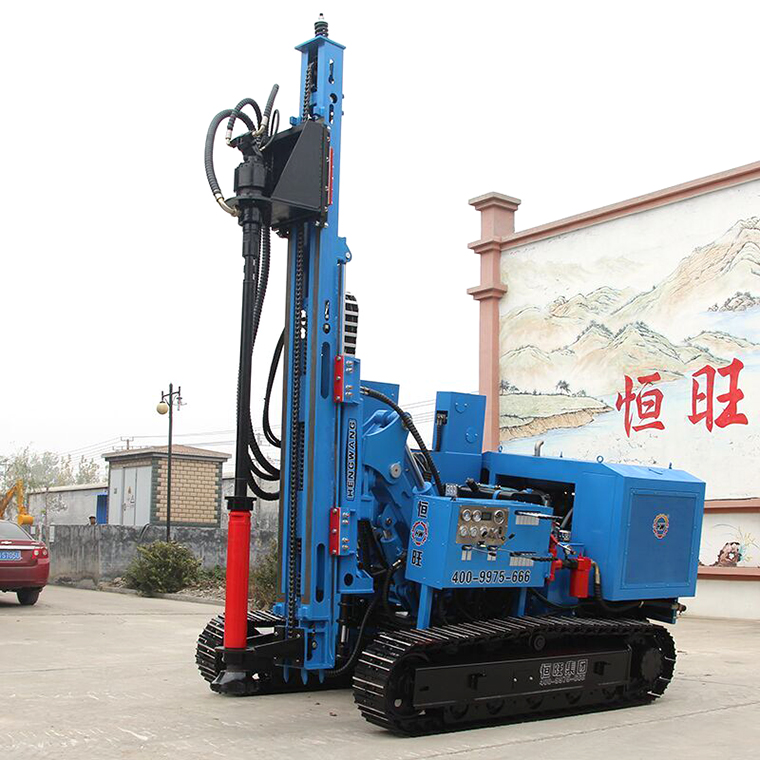

3m/4m/6m hydraulic rotary press piling machine is multifunctional pile driving machine for mine, with 360 degrees of freedom to rotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.
Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion, high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the national quality the first, market share rate of the first brand.
Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion, high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the national quality the first, market share rate of the first brand.
Model | HWL600R | Remark | ||||
Hammer impact | 780J | Joule,we can make more powrful impact as your demand | ||||
Pile length | 0-6000 | mm | ||||
Duplex gear pump pressure | 20 | Mpa | ||||
Duplex gear pump displacement | 40 | ml/r | ||||
Hydraulic system pressure | 20 | Mpa | ||||
Main valve flow | 120 | L/Min | ||||
Overall Machine weight | 6 | T | ||||
Diesel engine power | 80 | KW | ||||
Rated Speed | 2400 | R/min | ||||
Starting Voltage | 24 | V | ||||
Rotation angle | 360 | ° | ||||
Rotation semi diameter(rotating shaft to Pod distance) | 1925 | MM | ||||
Effective press pile stroke | 0-3000 | MM | ||||
Dimension(LXWXH) | 6200×2200×2850 | MM | ||||
Track shoe | 350 | MM | ||||
Walking motor total displacement | 1575 | ml/m | ||||
Walking motor rated pressure | 18 | Mpa | ||||
Walking motor output torque | 4300 | N.M | ||||
Walking motor rotate speed | 50 | r/min | ||||
Press Pile Diameter | 0-600 | MM | ||||
Drilling Depth | 0-6000 | MM | ||||
Operating Speed (m/min) | 1.5 | 90s/per pile | ||||
Number of impacts / strokes per 1 minute | 900 | times/min | ||||
Maximum lengh of Piles to be rammed | 6 | M | ||||
Walking speed | 5-10 | Km/hr | ||||
Gradeability | 0-35 | ° | ||||
Oil tank capacity | 200 | L | ||||
Hydraulic tank capacity (L) | 500 | L | ||||
Advantages
1.the machine can 360 degree rotary , it is very convenient for working.
2.the working speed is fast, it only takes 90s can finish one pile.
3.our machine can work on the big gradient.
Detailed Images
Related Products
Packing&Shipping
After Sales Service
Engineer in Customer Working Site
1. we machine warranty is one year;
Company Introduction
Working Case
FAQ
Q1.What is the main function of our pile driver?
Ans.: It has different models used for all kinds of PV post install, it is the best choice forsolar power station
construction.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our products coming with the certificates of CE, ISO9001.
