Click on the image to view the original image
- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Model Number:
- GB001H
- Power Source:
- Electric
- Application:
- Boat
- Product name:
- 2200W boat electric anchor winch horizontal windlass
- Motor power:
- 2200W
- Max. Load (kg):
- 190
- Weight:
- 160kg
- Max. Pull (kg):
- 600
- Max.Line Speed(m/min):
- 30m/min
- Power supply:
- 220V 380V
- chain Size:
- 12.5mm
- Usage:
- Cable Pulling Machine
- usage:
- boat/ship/yacht/marine
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 87X86X48 cm
- Single gross weight:
- 160.0 kg
- Package Type:
- Netural packing
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 30 >30 Est. Time(days) 7 To be negotiated

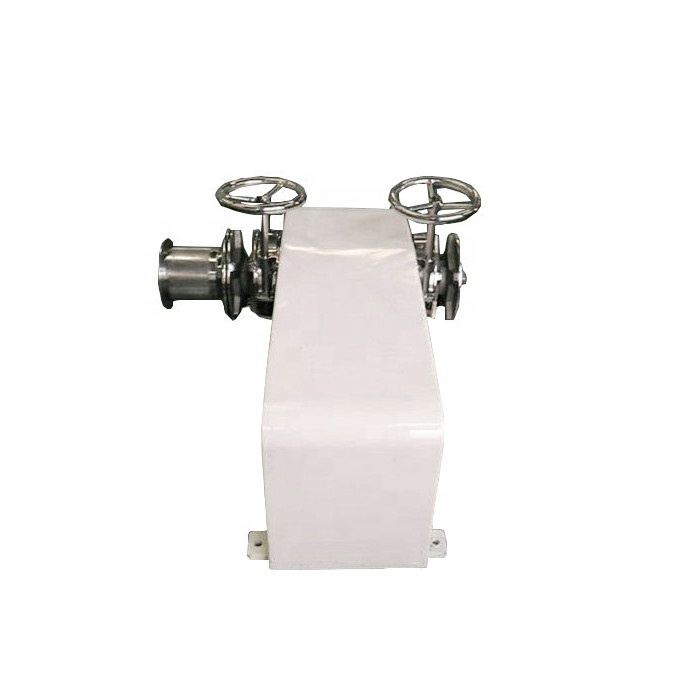

2200W boat electric anchor winch horizontal windlass
| Model | Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| SH400 | 13.5 | 12V/24V | 600W | 600 | 22m/min | 6/7mm | |||
| SH1000 | 18 | 1000W | 750 | 25m/min | 8mm | ||||
| JVH-011 | 16 | 12V/24V | 600W | 50A | 190 | 600 | 30m/min | 12-14mm | 6-7mm |
| JVH-012 | 25.5 | 1000W | 90A | 350 | 750 | 25m/min | 14-16mm | 8-10mm | |
| JVH-013 | 32 | 1400W | 125A | 520 | 1100 | 25m/min | 18-20mm | ||
| JVH-014 | 34 | 1600W | 140A | 660 | 1400 | 20m/min | 20-24mm | 10-12mm | |
| JVH-015 | 36 | 220V/380V | 2000W | 6A | 900 | 2000 | 10-13mm | ||
| JVH-016 | 38 | 3000W | 9A | 1200 | 2500 | 10-13mm | |||
| EB2000 | 8.5 | 12V/24V | 6 feet/min | ||||||
| EB3000 | 11 | ||||||||
| GB001H | 160 | 2200W | 190 | 600 | 30m/min | 12.5mm | |||
| GB002H | 260 | 3500W | 350 | 750 | 25m/min | 14mm | |||
| GB003H | 320 | 4000W | 520 | 1100 | 16mm | ||||
| GB004H | 410 | 5000W | 660 | 1400 | 20m/min | 17.5mm | |||
| GB005H | 490 | 6000W | 900 | 2000 | 19mm | ||||
| GB006H | 530 | 7500W | 1200 | 2500 | 20.5mm |
Features:
1.Twin gypsy, twin brakes, one capstan, but you also choose twin capstans.
2.Independent operation of capstans and gypsy by declutching the drive.
3.Simple deck mounted installation with no under deck parts.
4.Simplified maintenance with ability to strip the running gear (chain-wheel and drum) from the windlass without disturbing the windlass mounting.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
Address:3Rd Buliding, Xinke International Building,Yubei District, Chongqing, China
