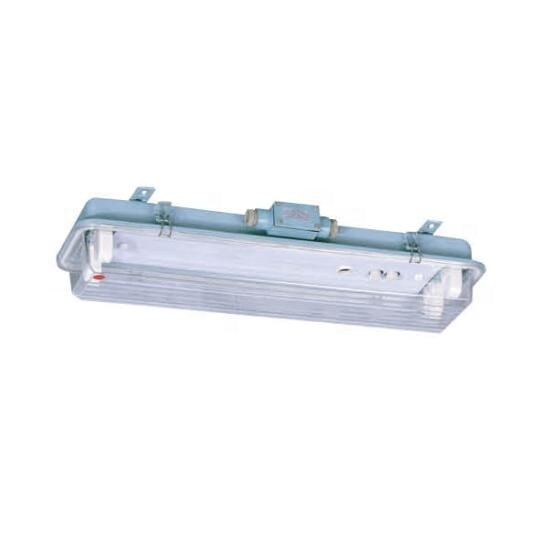

2x20W 24V Marine watertight fluorescent pendant light
The scope of application
Applied to illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather deck etc
2. The environmental temperature for work is-20℃+55℃.
Products characteristic
1. The shell adopts good quality steel plate tensioned, lampshade adopts injection of PC, and has the seal structure.
2. In order to prevent from electric shocking, equipped with a copper earthing rod with the mark in the lights.
3. Plug-in type lamp holder, equipped wiring terminal inside, convenient to connect
4. The lamp has the emergency device, equipped Bl5d lamp holder, 24V/15W small emergency bulb, the edge of lampshade marks the in the light.
5. Equipped compensating capacitance inside the lamp, also has the good effect of start.
Adopt standard
Conform to CB/3857-1999 standard.
Production authentication
Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
Specifications
| Type | Power | Voltage | Compensating capacitance | Power factor | Lamp holder | Cable outside diameter | Protection class | Weight |
| JCY26-1 | 1×20W | 110V/60Hz 220V/50Hz 220V/60Hz | 4.75µf | >0.85 | G13 | φ12-φ16 | IP56 | 7.2kg |
| JCY26-2 | 2×20W | 7.5µf | ||||||
| JCY26-2E | 2×20W 24V/15W | 7.5µf | ||||||
| JCY26-2EF | 7.5µf |
