Click on the image to view the original image
- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Part:
- boat capstan winch
- Product name:
- 12V 24V 600W boat ship yacht rope capstan winch
- Motor:
- 600W
- Power Supply:
- 12V 24V
- Max. Load:
- 190kg
- Max. Pull:
- 400kg
- Rope Size:
- 12mm
- Line Speed:
- 25m/min
- Weight:
- 10kg
- Feature:
- rope only
- Material:
- stainless steel
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 30X35X28 cm
- Single gross weight:
- 10.0 kg
- Package Type:
- Netural packing
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 30 >30 Est. Time(days) 7 To be negotiated

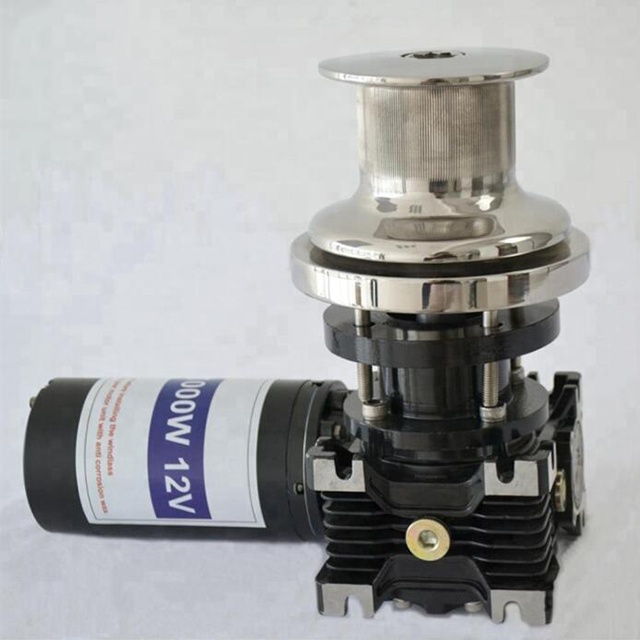

12V 24V 600W boat ship yacht rope capstan winch
| Model | Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| JVVC-001 | 9.5 | 12V/24V | 600W | 190 | 400 | 25m/min | 12mm | - | |
| JVVC-002 | 14 | 12V/24V | 1000W | 350 | 680 | 25m/min | 14-16mm | - | |
| JVVC-005 | 21 | 12V/24V | 1600W | 520 | 1230 | 20m/min | 16-20mm | - | |
| JVVC-006 | 32 | 380V | 2000W | 680 | 1760 | 20m/min | 20-24mm | - | |
| JVVC-007 | 48 | 380V | 3000W | 890 | 2130 | 20m/min | 24-30mm | - | |
| JVVC-003 | 7 | 12V/24V | 400W | 30A | 125 | 420 | 30m/min | 12mm | 6-7mm |
| JVVC-004 | 9 | 12V/24V | 600W | 60A | 210 | 600 | 25m/min | 12mm | 6-7mm |
Features:
1.Designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels.
2.Line hauling from any direction.
3.Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade stainless steel bolts.
4.Compact, reliable gearbox, made of corrosion resistant material.
5.Heavy duty, dual direction motors, designed for marine winches.
6.Easily disassembled for servicing.
7.Fit include hand-switch, foot-switch, solenoid and circuit breaker.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
Address:3Rd Buliding, Xinke International Building,Yubei District, Chongqing, China
