- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Model Number:
- JVSW-006
- Power Source:
- Hand
- Application:
- Boat
- Product name:
- marine mooring sailboat rope sail winch
- Line Entrymm:
- 115
- Weight kg:
- 19.5
- SWLkg:
- 1480
- Line Size mm:
- 8-16mm
- Gear Rati 1 st:
- 3:1
- Gear Rati 2nd:
- 11.5:1
- Power Ratio1 st:
- 139:1
- Power Ratio2nd:
- 55:1
- Material:
- Stainless Steel 316
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 21X21X23 cm
- Single gross weight:
- 28.0 kg
- Package Type:
- Neutral packing
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 50 >50 Est. Time(days) 7 To be negotiated

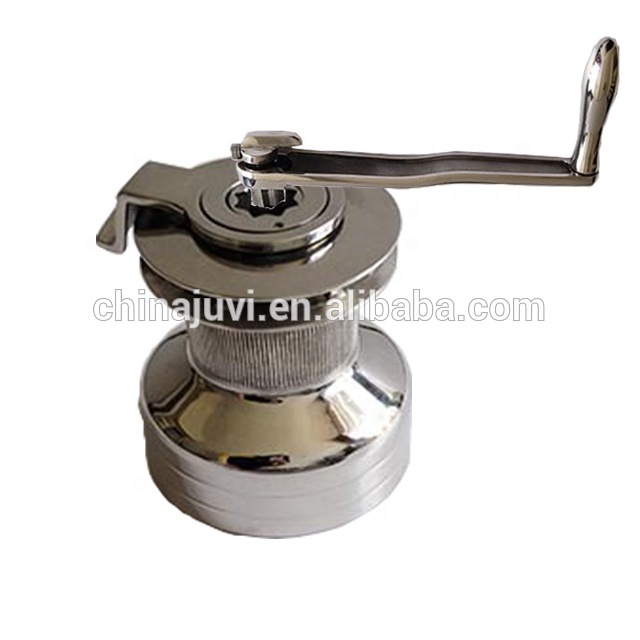

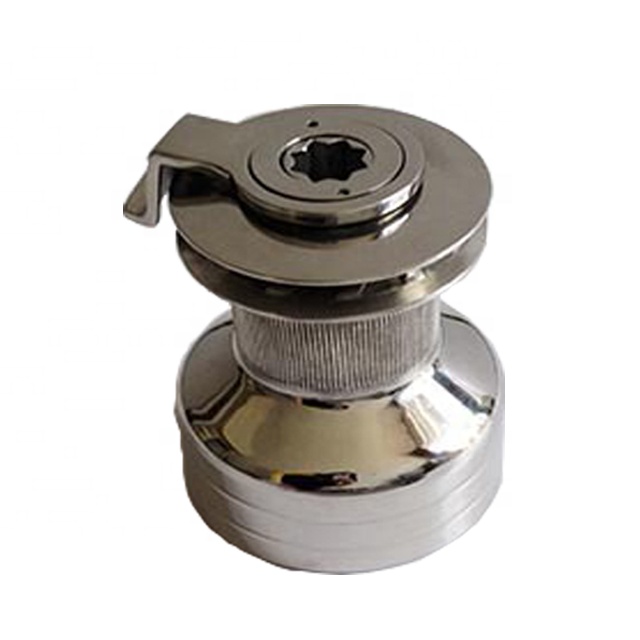

marine mooring sailboat rope sail winch
| Model | Weight kg | SWL kg | Line Entry mm | Line Size mm | Gear Ratio | Power Ratio | ||
| 1 st | 2nd | 1 st | 2nd | |||||
| JVSW-001 | 3.8 | 570 | 58 | 8-12 | 2:1 | 16:01 | ||
| JVSW-002 | 5.5 | 690 | 69 | 8-12 | 2:1 | 4.5:1 | 14.2:1 | 29:1 |
| JVSW-003 | 6.5 | 790 | 79 | 8-12 | 1.8:1 | 6:01 | 13.5:1 | 40.5:1 |
| JVSW-004 | 9.5 | 1200 | 84 | 8-14 | 2.5:1 | 7.8:1 | 13.8:1 | 44.6:1 |
| JVSW-005 | 16.5 | 1250 | 86 | 8-14 | 2.8:1 | 9.2:1 | 13.8:1 | 48.8:1 |
| JVSW-006 | 19.5 | 1480 | 115 | 8-16 | 3:01 | 11.5:1 | 13.9:1 | 55:1 |
| JVSW-007 | 23 | 1700 | 122 | 8-18 | 3.2:1 | 15:01 | 13.5:1 | 65:1 |
Features:
1. Simple servicing: no tools are required to service the winches.
2. Gripping surface drum: the drum’s gripping surface is shaped for each winch size and drum material and features ribs to maximize gripping power and greatly reduce line wear.
3. Whole mirror-polished: the whole winch mirror-polished, whole stainless steel.
4. Wave spring jaw and feeder arm: the cast stainless steel feeder arm position can be adjusted to smoothly feed the rope out of the jaws and into the cockpit.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
