Click on the image to view the original image

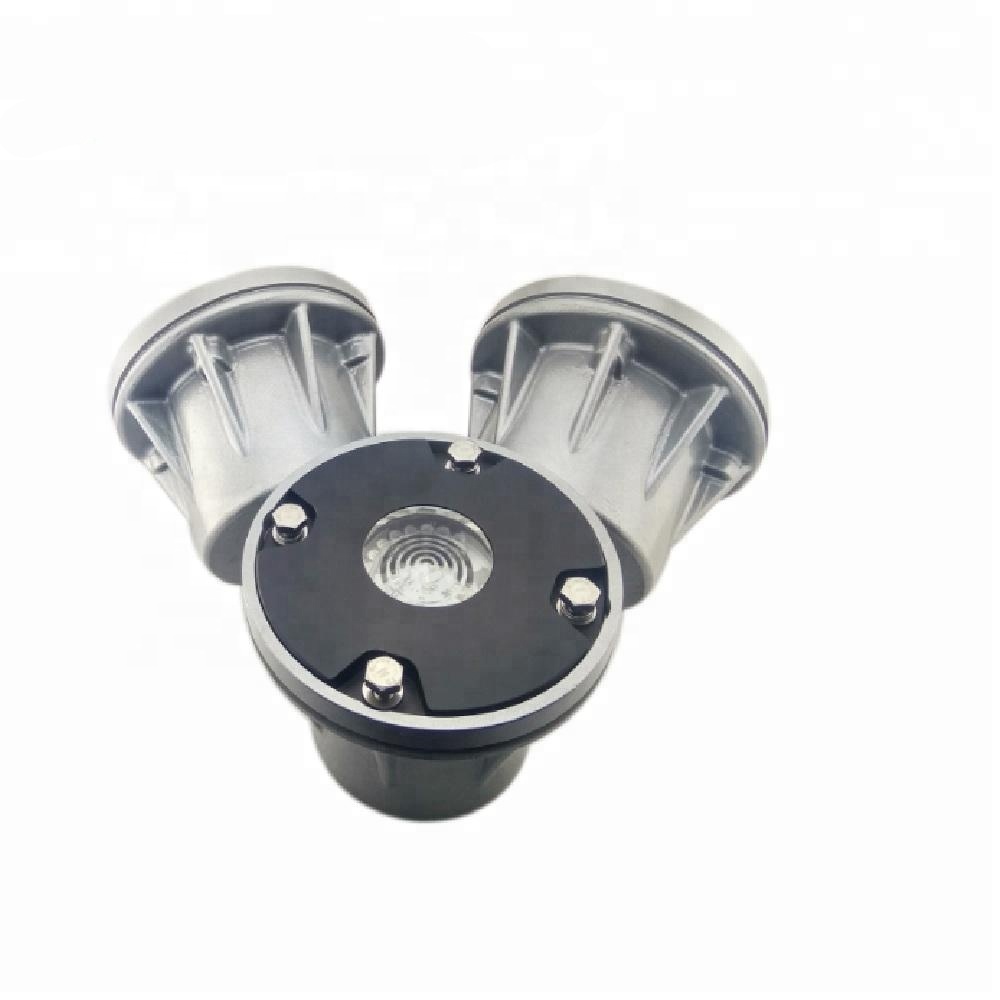

Helipad guide inset light led light aviation light
This Touchdown and lift-off area light emitting green steady burning light at night or in the daytime with poor visibility to provide good visibility. It shall be placed along the edge of the area designated for use as the Touchdown and lift-off area or within a distance of 1.5 m from the edge. Aiming point lights shall be collocated with the aiming point marking. It always emitting white steady burning light. Inset light is always be used at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.
| SPECIFICATIONS | JV-HP-A Touchdown and lift-off Area Inset Light |
| Light Characteristics | |
| Light Source | Ultra high intensity LED |
| Available Colors | Green, White (Other color is available) |
| Intensity(cd) | ≥100cd |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 120VAC, 220VAC, 48VDC, 24VDC or others |
| Power(W) | 20 |
| Physical Characteristics | |
| Body Material | Anodized Die-casting aluminum |
| Base Material | Painted aluminum |
| Overall size(mm) | 194×194×138 |
| Installation size(mm) | 199×199×146 |
| Weight(kg) | 4.9 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Ambient Temperature(℃) | -55℃~+70℃ |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume | Heliports 5.3.7, 5.3.8 |
| Options Available | Infrared LED compatible for NVG (Night |
| Vision Goggles) | |
| Marine Treated | |
| Anodized color |
1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
Adress: Xinke International Building, Qibo Center, Liangjiang New Area, Chongqing, China
Contact for more details!
