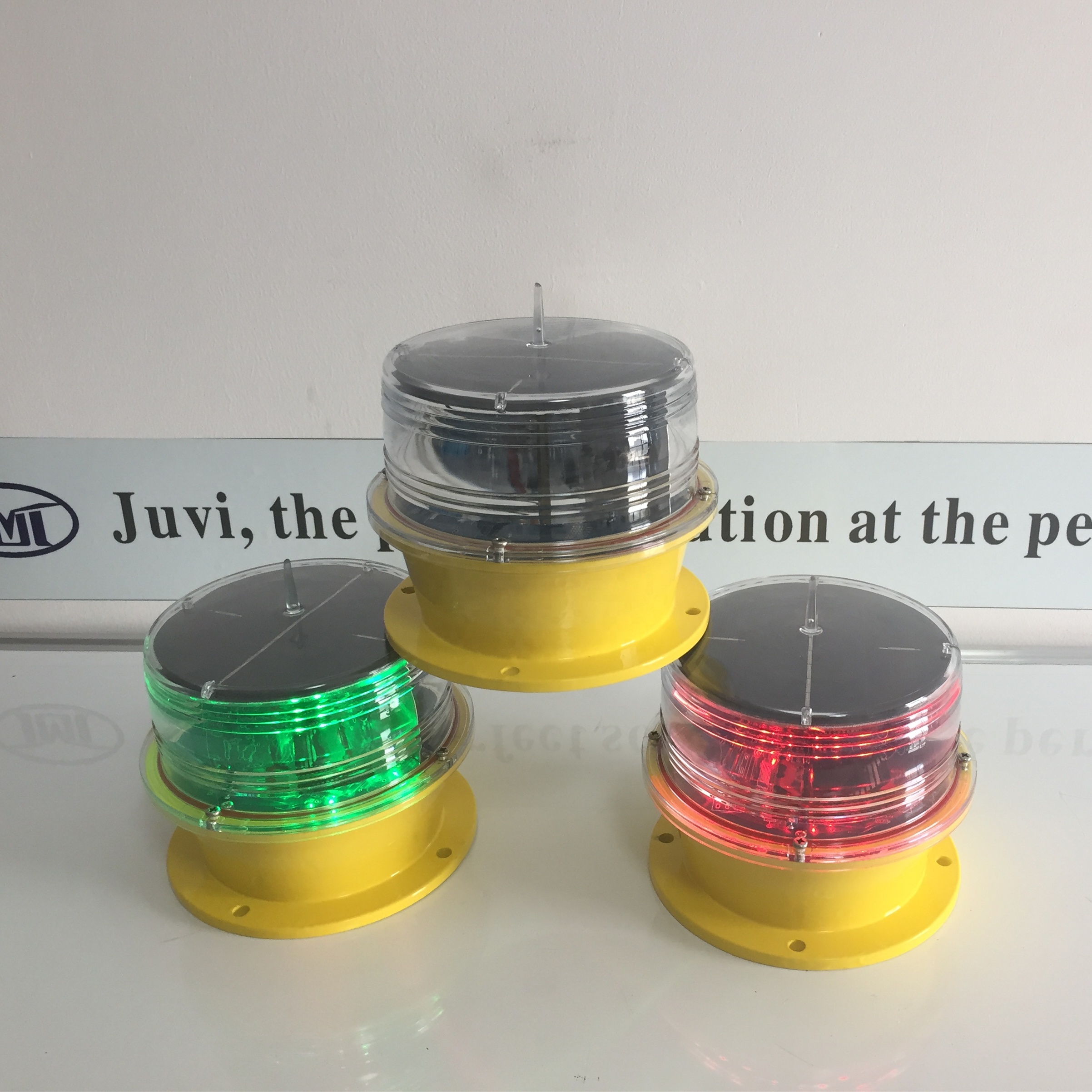

Offshore solar power lantern signal navigation light

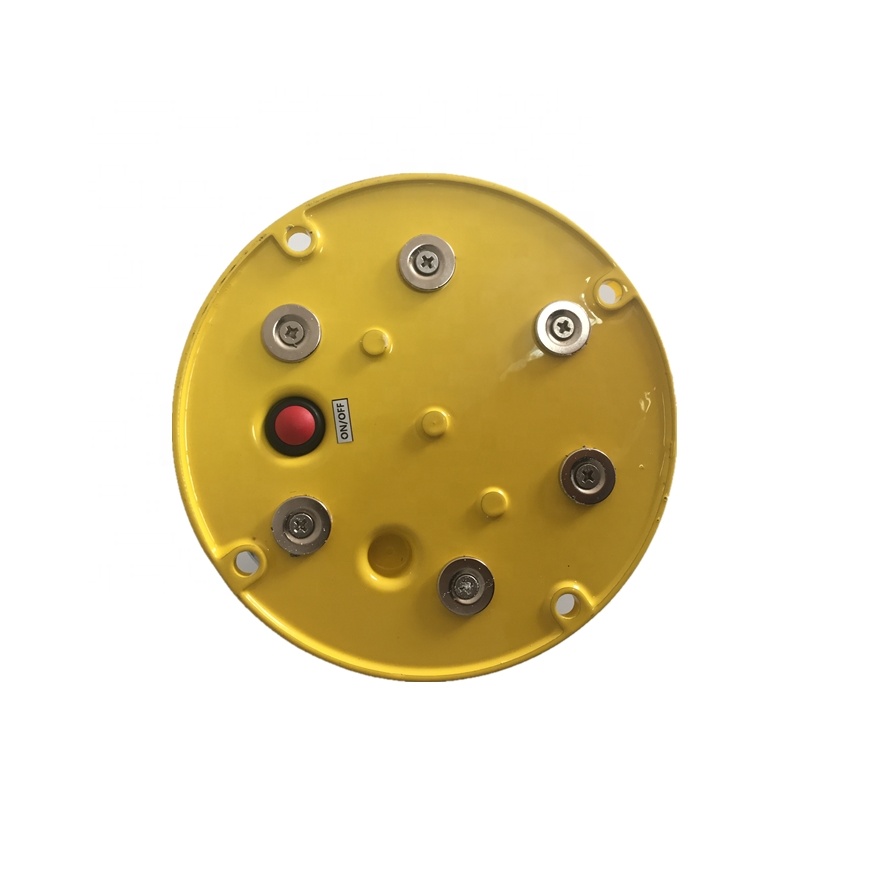

This LED Marine Lanterns is completely self-contained lantern, adopting insert high efficient solar panels integrated design, cooperate with solar dedicated lithium ion battery as power supply. It is full-sealed structure ensure(IP68) no water go inside. There is a ON/OFF button under base make local control easier.
| SPECIFICATIONS | JV-LS-C-1 LED Solar Powered Marine Lanterns |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red, Green, Yellow, White, Blue |
| Visible Range(NM) | 2-3 (AT-0.74) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | 7 |
| Flash Characteristics | Adjustable Steady-burning/Flash mode |
| Operation Mode | Dusk-to-dawn Automatically (Built-in photocell) |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 3.7Vdc |
| Power(W) | 1.5 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Monocrystalline Silicon |
| Output(watts) | 2 |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | Lithium ion battery |
| Battery Capacity (Ah) | 8 |
| Nominal Voltage (V) | 3.7 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | Steady:80 |
| Flashing: 210 | |
| Physical Characteristics | |
| Body Material | UV protected Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting(mm) | 190×190×12 |
| Dimension(mm) | 220 by 220 by 233 |
| Weight(kg) | 1 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| IALA | Singal colors complicant to IALA E-200-1 |
| Options Available | Charging port |
| Remote Control | |
| 256 flashing light characteristics | |
| Auto/Manual toggle switch |
