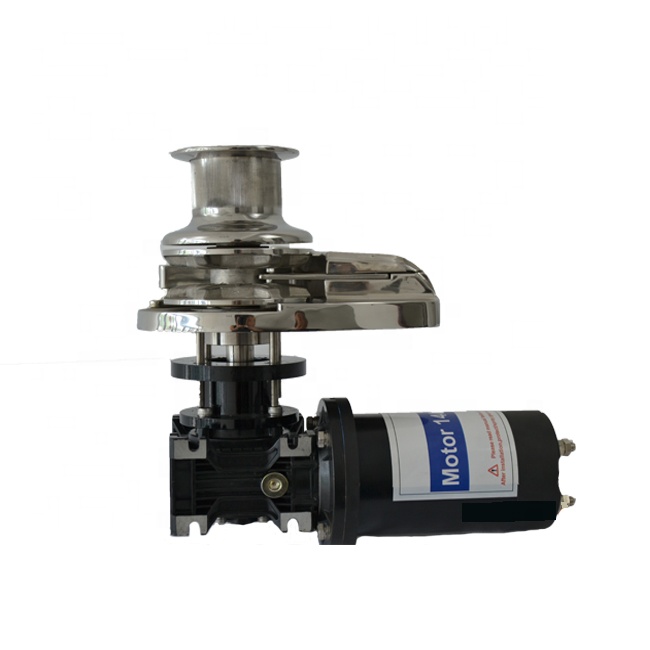

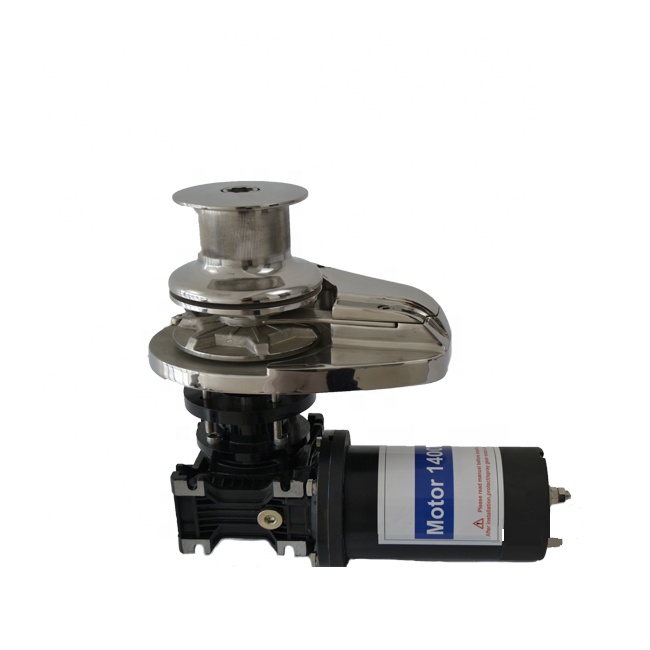

boat yacht marine anchor windlass
| AC vertical windlass | Model | Net Weight (kg) | Power Supply | Motor | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| JV911-X1 | 31 | 220V/380V | 2000W | 700-1200 | 1500-2500 | 20m/min | 18-22mm | 8/10mm | |
| JV911H-X1 | 33 | 2000W | 700-1200 | 1500-2500 | |||||
| JV911-X2 | 35 | 3000W | 1000-150 | 2300-2800 | |||||
| JV911H-X2 | 37 | 3000W | 1000-150 | 2300-2800 | |||||
| JV1011-X1 | 32 | 2000W | 700-1200 | 1500-2500 | 20-26mm | 10/12/13mm | |||
| JV1011H-X1 | 35 | 2000W | 700-1200 | 1500-2500 | |||||
| JV1011-X2 | 36.5 | 3000W | 1000-150 | 2300-2800 | |||||
| JV1011H-X2 | 38.5 | 3000W | 1000-150 | 2300-2800 |
Features:
1. Vertical design suits powerboats or sailboats and can be utilized for anchor ropes, as docking capstans on larger craft, or auxiliary line hauling.
2. High-quality polished 316 stainless steel surface makes for a beautiful appearance.
3. Simplified installation by modular design and precise alignment of gearbox to the top works utilizing marine-grade stainless steel studs.
4. Rope-chain gypsy, choice of two gypsy.
5. Fit include hand-switch, foot-switch, realay and solenoid.
6. 3 year warranty.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
Address:3Rd Buliding, Xinke International Building,Yubei District, Chongqing, China
