Home > Products > GB003H 4000W Marine Boat Electric Anchor Horizontal Windlass

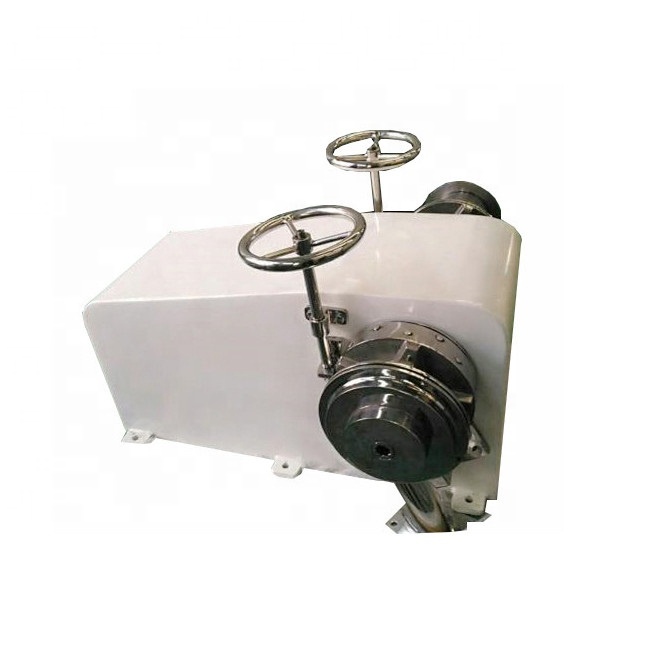

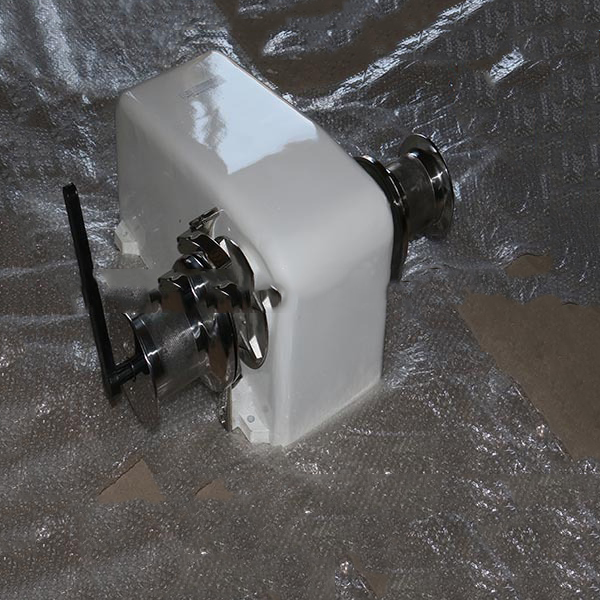

GB003H 4000W Marine Boat Electric Anchor Horizontal Windlass
Click on the image to view the original image
Product： views：4GB003H 4000W Marine Boat Electric Anchor Horizontal Windlass
Branch： JUVI
Size： 50X50X40 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:57
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
GB003H
Power Source:
Electric
Application:
Boat
Product name:
4000W Marine Boat Electric Anchor Horizontal Windlass
Motor power:
4000W
Max. Load (kg):
520
Max. Pull (kg):
1100
Power supply:
220V 380V
Weight:
320kg
Max.Line Speed(m/min):
25m/min
chain Size:
16mm
Usage:
Cable Pulling Machine
usage:
boat/ship/yacht/marine

Packaging & Delivery

Selling Units:
Single item
Single package size:
50X50X40 cm
Single gross weight:
40.0 kg
Package Type:
Standard packing
Lead Time:
Quantity(Piece)1 - 30>30
Est. Time(days)7To be negotiated
Product Description

4000W Marine Boat Electric Anchor Horizontal Windlass

Model

Net Weight

(kg)

Power

Supply

Motor

No Load

Absorption

Max. Load

(kg)

Max. Pull

(kg)

Line SpeedRope SizeChain Size
SH40013.512V/24V600W  60022m/min6/7mm
SH1000181000W  75025m/min8mm
JVH-0111612V/24V600W50A19060030m/min12-14mm6-7mm
JVH-01225.51000W90A35075025m/min14-16mm8-10mm
JVH-013321400W125A520110025m/min18-20mm
JVH-014341600W140A660140020m/min20-24mm10-12mm
JVH-01536220V/380V2000W6A900200010-13mm
JVH-016383000W9A1200250010-13mm
EB20008.512V/24V    6 feet/min
EB300011
GB001H160 2200W 19060030m/min 12.5mm
GB002H260 3500W 35075025m/min 14mm
GB003H320 4000W 5201100 16mm
GB004H410 5000W 660140020m/min 17.5mm
GB005H490 6000W 9002000 19mm
GB006H530 7500W 12002500 20.5mm



Features:

1.Twin gypsy, twin brakes, one capstan, but you also choose twin capstans.

2.Independent operation of capstans and gypsy by declutching the drive.

3.Simple deck mounted installation with no under deck parts.

4.Simplified maintenance with ability to strip the running gear (chain-wheel and drum) from the windlass without disturbing the windlass mounting.

5.1800 days warranty.

Other products

Company Information

1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.

2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)

3. Marine deck mooring: Anchor, Anchor chain.

4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.

5. Customized products according to customers" request.







Advantages





Customers Visiting





Packaging & Shipping

I. Packaging

1.Wooden Case;   2.Iron Frame;    3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.



FAQ

Q1: Why we choose you?

  11 professional engineers can provide overall solution services.

  13 years specialising in marine deck equipment .

  18 long-term cooperation supporting factories.

  24 hours a day after-sale technical support .

Q2: What kind of payments do you accept?

T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..

Q3: How about the Delivery Time?

  We could finish the production within 30 days

Q4: What"s the MOQ?

   MOQ is 1 set.
