- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Model Number:
- JV411H
- Power Source:
- Electric
- Application:
- Boat
- Product name:
- 400W Stainless Steel Anchor Windlass winch
- Motor:
- 400W
- Power Supply:
- 12V/24V
- Max. Load (kg):
- 250
- Max. Pull (kg):
- 700
- Chain Size:
- 7/8mm
- Line Speed:
- 20m/min
- Rope Size:
- 18-22mm
- No Load Absorption:
- 30A
- Weight:
- 16.5kg
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 26.5X12.2X22.5 cm
- Single gross weight:
- 10.0 kg
- Package Type:
- Neutral packing
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 10 >10 Est. Time(days) 5 To be negotiated

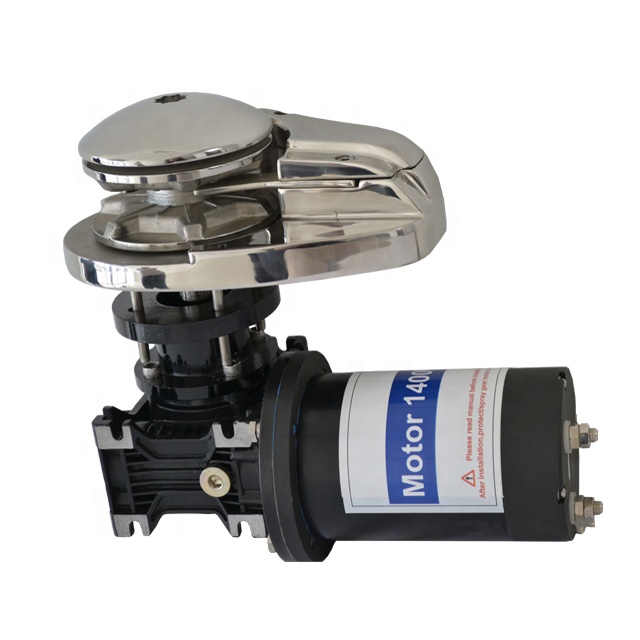

400W Stainless Steel Anchor Windlass winch
Vertical windlass | Model | Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| JV411 | 9.7 | 12V/24V | 400W | 30A | 125 | 420 | 30m/min | 12-14mm | 6/7mm | |
| JV411H | 10.5 | 400W | 30A | 130 | 450 | 30m/min | 12-14mm | 6/7mm | ||
| JV511 | 10 | 600W | 60A | 186 | 560 | 25m/min | 12-14mm | 6/7mm | ||
| JV511H | 11 | 600W | 60A | 210 | 600 | 25m/min | 12-14mm | 6/7mm | ||
| JV611 | 16.5 | 800W | 100A | 250 | 700 | 20m/min | 18-22mm | 7/8mm | ||
| JV611H | 18 | 800W | 100A | 280 | 700 | 20m/min | 18-22mm | 7/8mm | ||
| JV711 | 22.5 | 1200W | 120A | 400 | 1200 | 20m/min | 18-22mm | 8/10mm | ||
| JV711H | 24 | 1200W | 120A | 400 | 1200 | 20m/min | 18-20mm | 8/10mm | ||
| JV811 | 24 | 1600W | 170A | 660 | 1600 | 20m/min | 20-26mm | 8/10/12mm | ||
| JV811H | 25.5 | 1600W | 170A | 660 | 1600 | 20m/min | 20-26mm | 8/10/12mm | ||
| JV1011 | 24.5 | 2000W | 170A | 660 | 1900 | 20m/min | 20-26mm | 10/12/13mm | ||
| JV1011H | 27.5 | 2000W | 170A | 660 | 1900 | 20m/min | 20-26mm | 10/12/13mm |
1. Vertical design suits powerboats or sailboats and can be utilized for anchor ropes, as docking capstans on larger craft, or auxiliary line hauling.
2. High-quality polished 316 stainless steel surface makes for a beautiful appearance.

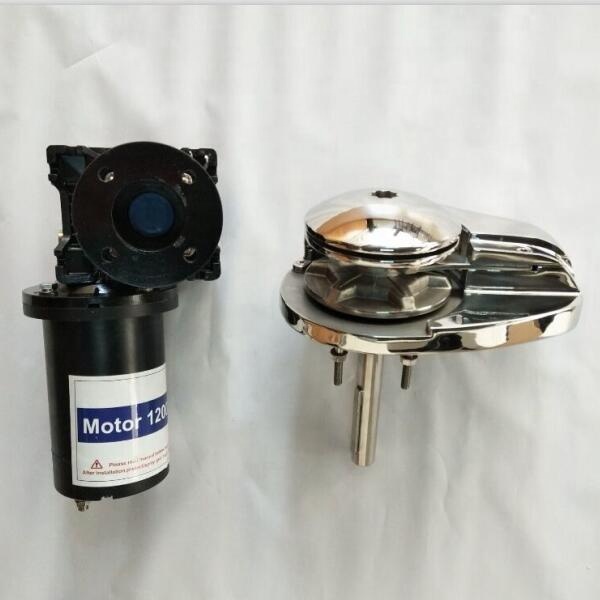

3. Simplified installation by modular design and precise alignment of gearbox to the top works utilizing marine-grade stainless steel studs.
4. Rope-chain gypsy, choice of two gypsy.
5. Fit include hand-switch, foot-switch, relay and solenoid.
6. 3 year warranty.
