Home > Products > TG27 1000W 220V outdoor marine ship boat tungsten halogen searchlight

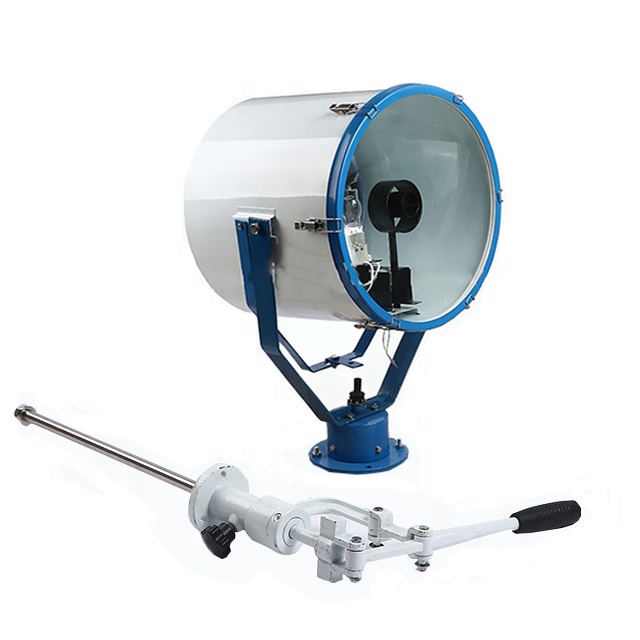

TG27 1000W 220V outdoor marine ship boat tungsten halogen searchlight
Click on the image to view the original image
Product： views：2TG27 1000W 220V outdoor marine ship boat tungsten halogen searchlight
Branch： JUVI
Size： 80X38X50 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:57
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
220
Lamp Luminous Flux(lm):
23000
Working Temperature(℃):
-30 - 50
Working Lifetime(Hour):
10000
Lamp Body Material:
Stainless Steel
IP Rating:
IP56
Certification:
CE
Place of Origin:
China
Brand Name:
JUVI
Model Number:
TG26
Application:
Boat ship yacht marine
Light Source:
Halogen Bulbs
Product Name:
1000W 220V outdoor marine ship boat tungsten halogen searchlight
Voltage:
220V
Power:
1000W
Irradiation distance:
1550m
Outside diameter of cable:
10-12mm
Protection class:
IP56
Luminous flux:
23000Lm
Material:
stainless steel
Weight:
16.5kg
Lamp holder:
GY9.5

Packaging & Delivery

Selling Units:
Single item
Single package size:
80X38X50 cm
Single gross weight:
30.0 kg
Package Type:
Netural packing
Lead Time:
Quantity(Set)1 - 50>50
Est. Time(days)7To be negotiated
Product Description

 1000W 220V outdoor marine ship boat tungsten halogen searchlight

The scope of application

1. Applied to far distance illumination and searching when night navigation, especially for illumination of sea-route and two banks and surface search when accrose the

complex water area, such as narrow channel and the inland river riveway etc.

2. Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.

Products characteristic

1.  The shell is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lampshade, high quality brass base.

2.  The lamp bend for +30° degrees by joy stick, adjust 350°degrees horizontally, equipped joy stick.

3.  Parallel light-beam, far illumination distance, concentrated light.

4.  Conform to<GRADE ENTRY NORMS FOR STEEL SHIPS>.

Specifications

TypeVoltagePowerLamp holderIlluminantIrradiation distance
(m)		Luminous flux
(lm)

Protection

class

Weight
TG26220V 50/60Hz300WGY9.5Tungsten halogen light11756900IP5616.2kg
500W124012500
TG271000W15502300018.5kg
