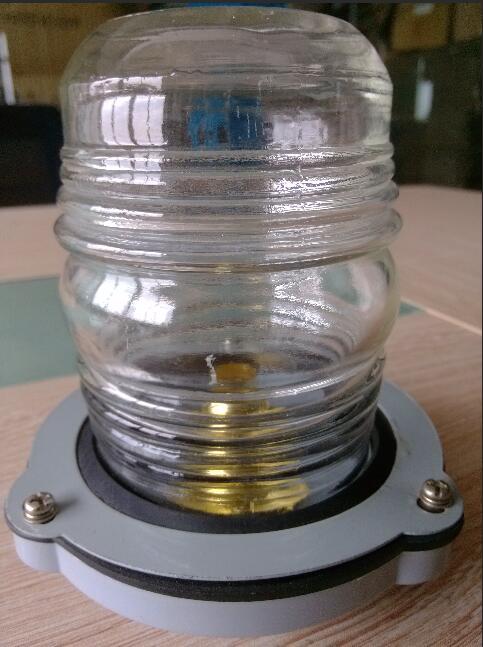

25W marine signal deck navigation light fixture
The scope of application
Applied to the ships with the length less than 12m as lamp signal liaison when night navigation.
Products characteristic
1. It is convenient to install and replace the bulb, and there are automatic aleak holes in the bottom.
2. The shell adopts good quality metal material steel, the surface is painted the special mold-powder, has the feature of corrosion-resisting and shock resistance.
3. The lampshade adopts good quality glass, and it has good function of illumination.
Adopt standard
1. Conform to (THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COL LISION AT SEA,1972 ) and (GRADE ENTRY NORMS FOR STEEL SHIPS)
2. Conform to the standard of marine electric signal light"s technical condition GB/T3028-1995.
Production authentication
Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
Specifications
Name/Type | Visibility | Level arc | Color | Weight |
CXH1-3 Starboard light | 1n.m | 112.5° | Green | 0.80kg |
CXH2-3 Port light | 1n.m | 112.5° | Red | 0.79kg |
CXH3-3 Masthead light | 2n.m | 225° | White | 0.73kg
|
CXH4-3 Stern light | 2n.m | 135° | White/Yellow | 0.77kg |
CXH6-3 All-round light | 2n.m | 360° | Red/Green/White | 0.60kg |
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
Address:3Rd Buliding, Xinke International Building,Yubei District, Chongqing, China
