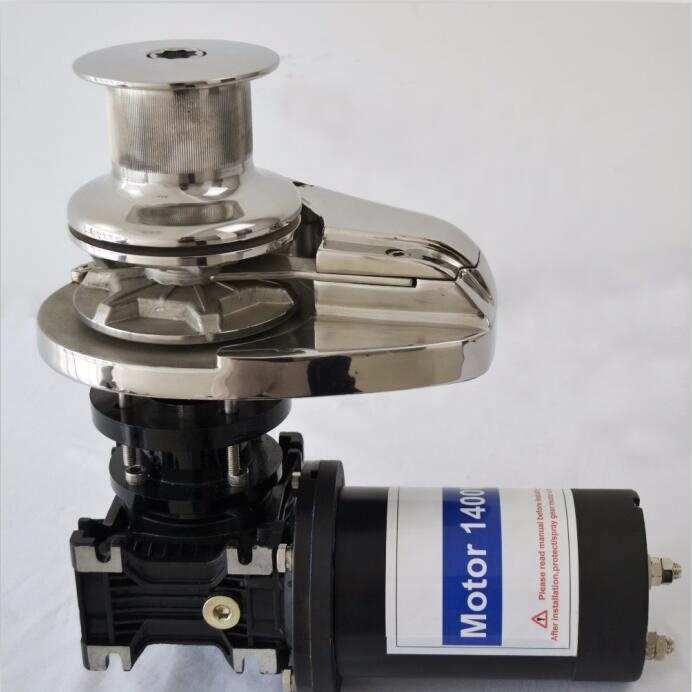

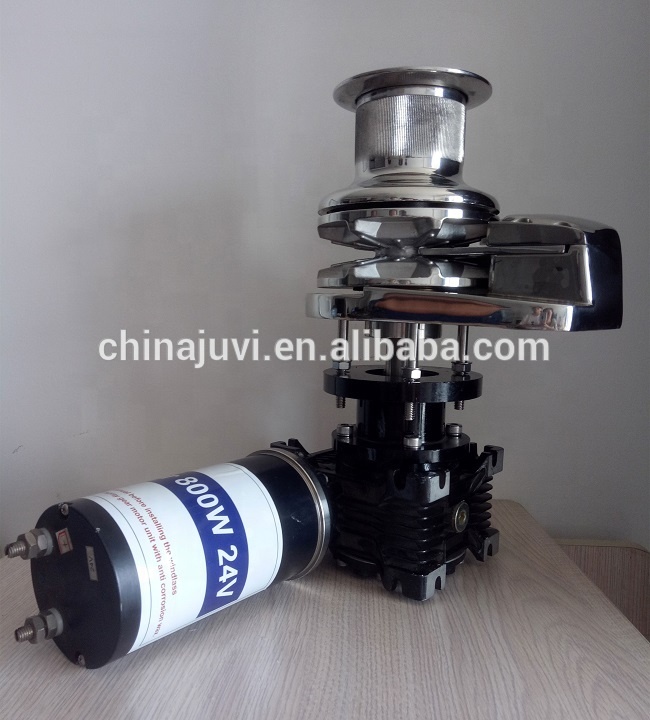

12V 1400W high speed windlass for boat 55ft to 90ft
Vertical windlass | Model | Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| JV411 | 9.7 | 12V/24V | 400W | 30A | 125 | 420 | 30m/min | 12-14mm | 6/7mm | |
| JV411H | 10.5 | 400W | 30A | 130 | 450 | 30m/min | 12-14mm | 6/7mm | ||
| JV511 | 10 | 600W | 60A | 186 | 560 | 25m/min | 12-14mm | 6/7mm | ||
| JV511H | 11 | 600W | 60A | 210 | 600 | 25m/min | 12-14mm | 6/7mm | ||
| JV611 | 16.5 | 800W | 100A | 250 | 700 | 20m/min | 18-22mm | 7/8mm | ||
| JV611H | 18 | 800W | 100A | 280 | 700 | 20m/min | 18-22mm | 7/8mm | ||
| JV711 | 22.5 | 1200W | 120A | 400 | 1200 | 20m/min | 18-22mm | 8/10mm | ||
| JV711H | 24 | 1200W | 120A | 400 | 1200 | 20m/min | 18-20mm | 8/10mm | ||
| JV811 | 24 | 1600W | 170A | 660 | 1600 | 20m/min | 20-26mm | 8/10/12mm | ||
| JV811H | 25.5 | 1600W | 170A | 660 | 1600 | 20m/min | 20-26mm | 8/10/12mm | ||
| JV1011 | 24.5 | 2000W | 170A | 660 | 1900 | 20m/min | 20-26mm | 10/12/13mm | ||
| JV1011H | 27.5 | 2000W | 170A | 660 | 1900 | 20m/min | 20-26mm | 10/12/13mm |
Features:
1. Vertical design suits powerboats or sailboats and can be utilized for anchor ropes, as docking capstans on larger craft, or auxiliary line hauling.
2. High-quality polished 316 stainless steel surface makes for a beautiful appearance.
3. Simplified installation by modular design and precise alignment of gearbox to the top works utilizing marine-grade stainless steel studs.
4. Rope-chain gypsy, choice of two gypsy.
5. Fit include hand-switch, foot-switch, relay and soleniod.
6. 1800 days warranty.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
Address:3Rd Buliding, Xinke International Building,Yubei District, Chongqing, China
