Capstan-001 12v 600w stainless steel boat rope capstan winch for sale
| Capstan | Model | Net Weight (kg) | Power Supply | Motor | Max. Load | Max. Pull (kg) | Line Speed | Rope Size |
| capstan-001 | 7 | 12V/24V | 600W | 160 | 320 | 25m/min | 8-10mm | |
| capstan-002 | 9 | 800W | 200 | 380 | 10-12mm | |||
| capstan-003 | 16 | 1200W | 260 | 420 | 20m/min | 14-16mm | ||
| capstan-004 | 18 | 1600W | 340 | 900 | 16-18mm |
Features:
1. Polished stainless steel finish.
2. Fluted capstan for line grip.
3. Reversible motor.
4. Easily disassembled for servicing: disassemble from top and bottom.
5. Large capstan drums for increased line hold.
6. Gearbox is driven by a vertically mounted below deck.

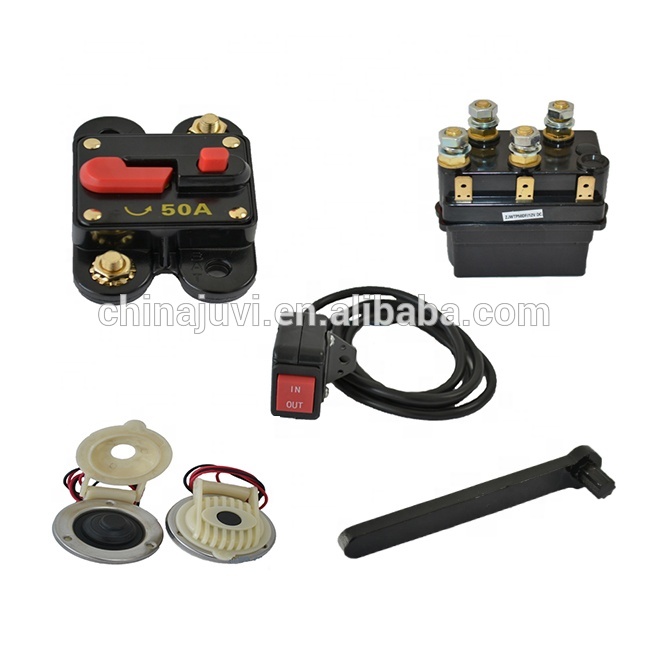

7. Fit include hand-switch, foot-switch, control box and wrench.
1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
