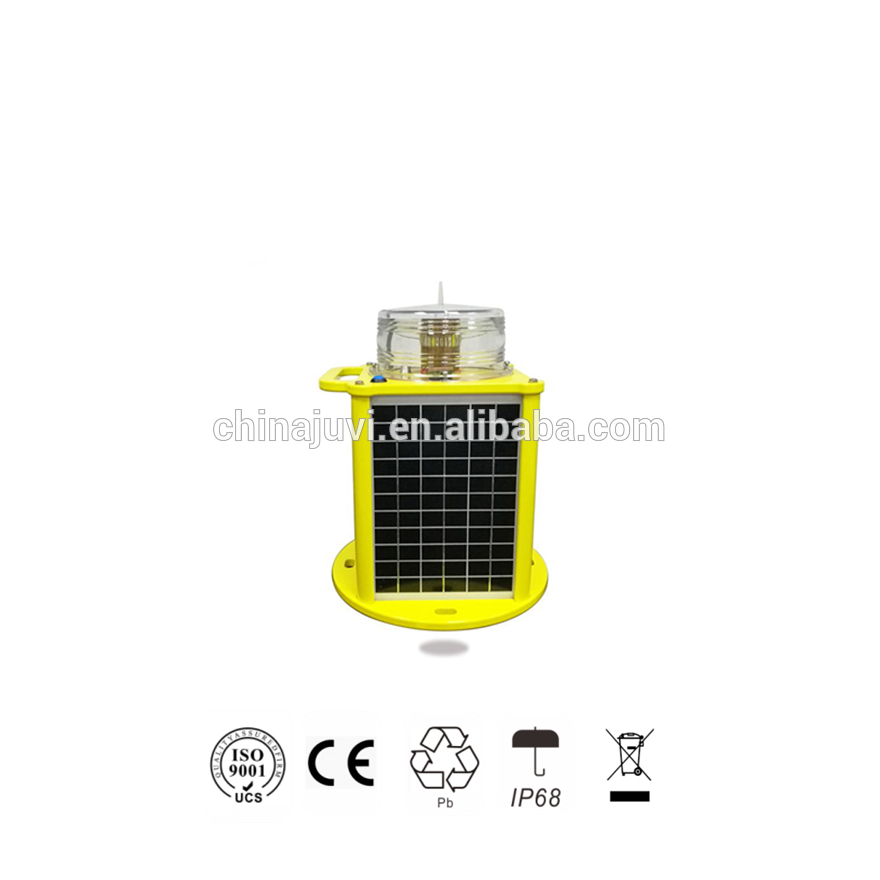

JV-LS-C-6-1 Marine LED Solar Rechargeable Self-contained Lantern
This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles.
CREE Ultra high intensity LED is used as light source which make performance better.
Bluetooth remote control 256 IALA flashes, there is no need use of extra remoter, any cellphone with Bluetooth could turn on/off, set the flash rate of the lantern.
| SPECIFICATIONS | JV-LS-C-6-1 Marine LED Solar Rechargeable Self-contained Lantern |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red, green, yellow, white, blue |
| Intensity(cd) | 15cd (3nm),35cd (4nm),75cd(5NM),150cd(6nm) (6NM) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | >9 |
| Flash Characteristics | Adjustable 256 IALA light characteristics |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| 24hours operation as option | |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 12Vdc |
| Power(W) | 1.2 |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono-crystalline Silicon |
| Output(watts) | 24W (6W×4) |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | VRLA (Valve-regulated Lead Acid Battery) |
| Battery Capacity (Ah) | 12 |
| Nominal Voltage (V) | 12 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | Steady: 100 |
| Flashing: 240 | |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |

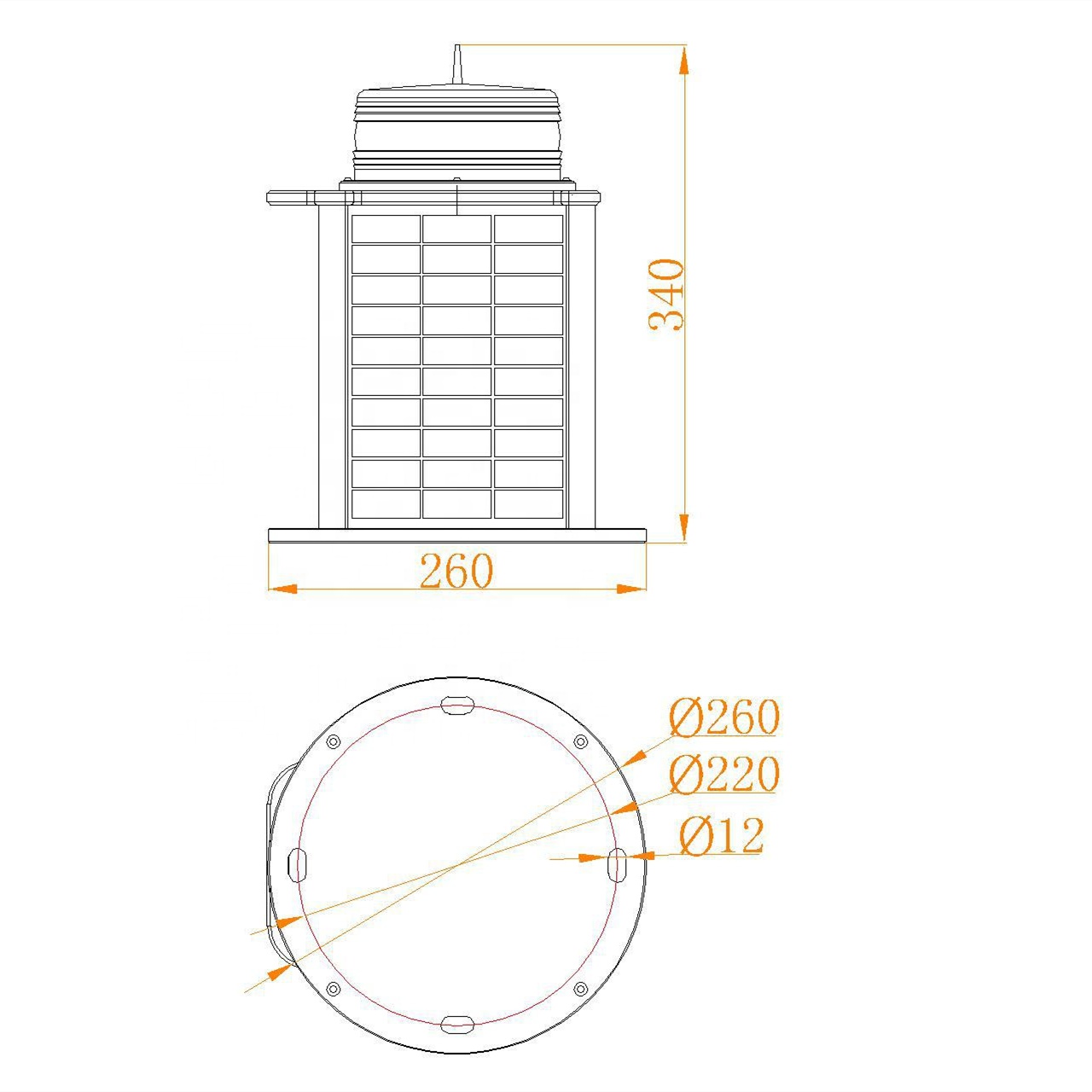

| Mounting | 220×220×M10 |
| Dimension(mm) | 260×260×340 |
| Weight(kg) | 5 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| IALA | Signal colors comply to IALA E-200-1 |
| Options Available | Charging port |
| Remote Control | |
| Auto/Manual toggle switch | |
| Bluetooth Remote Control 256 flashes | |
| GPS synchronization |
1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
Adress: Xinke International Building, Qibo Center, Liangjiang New Area, Chongqing, China
Contact for more details!
