JV-HP-A Aviation Airport Guide LED Obstruction Light In Stock
This Touchdown and lift-off area light emitting green steady burning light at night or in the daytime with poor visibility to provide good visibility. It shall be placed along the edge of the area designated for use as the Touchdown and lift-off area or within a distance of 1.5 m from the edge. Aiming point lights shall be collocated with the aiming point marking. It always emitting white steady burning light. Inset light is always be used at locations where the lights are frequently knocked down by aircraft or maintenance vehicles.
| SPECIFICATIONS | JV-HP-A Aviation Airport Guide LED Obstruction Light In Stock |
| Light Characteristics | |
| Light Source | Ultra high intensity LED |
| Available Colors | Green, White (Other color is available) |
| Intensity(cd) | ≥100cd |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 120VAC, 220VAC, 48VDC, 24VDC or others |
| Power(W) | 20 |
| Physical Characteristics | |
| Body Material | Anodized Die-casting aluminum |
| Base Material | Painted aluminum |

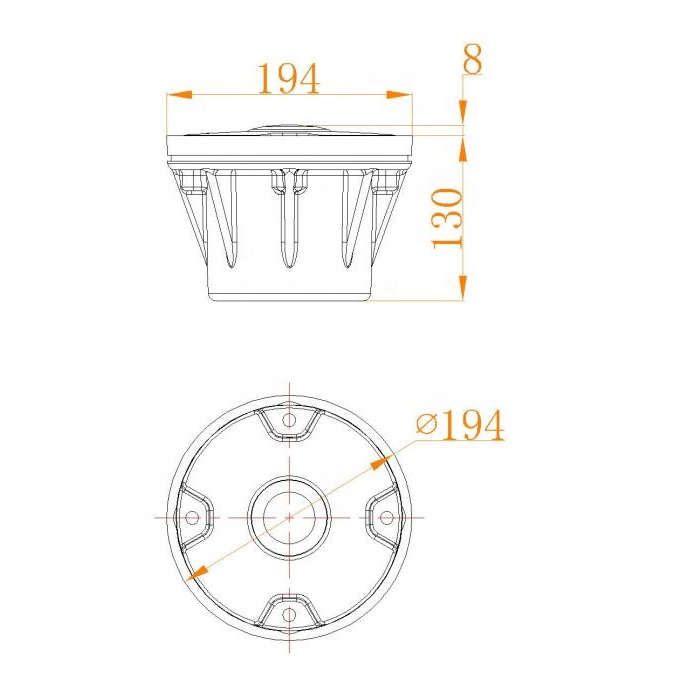

| Overall size(mm) | 194×194×138 |
| Installation size(mm) | 199×199×146 |
| Weight(kg) | 4.9 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Ambient Temperature(℃) | -55℃~+70℃ |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume | Heliports 5.3.7, 5.3.8 |
| Options Available | Infrared LED compatible for NVG (Night |
| Vision Goggles) | |
| Marine Treated | |
| Anodized color |
