Home > Products > 2200W 3PH Two gypsy marine electric horizontal windlass GB001H

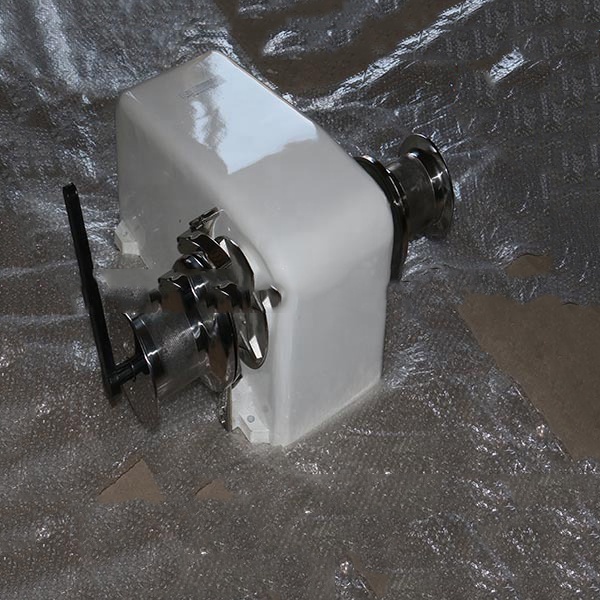

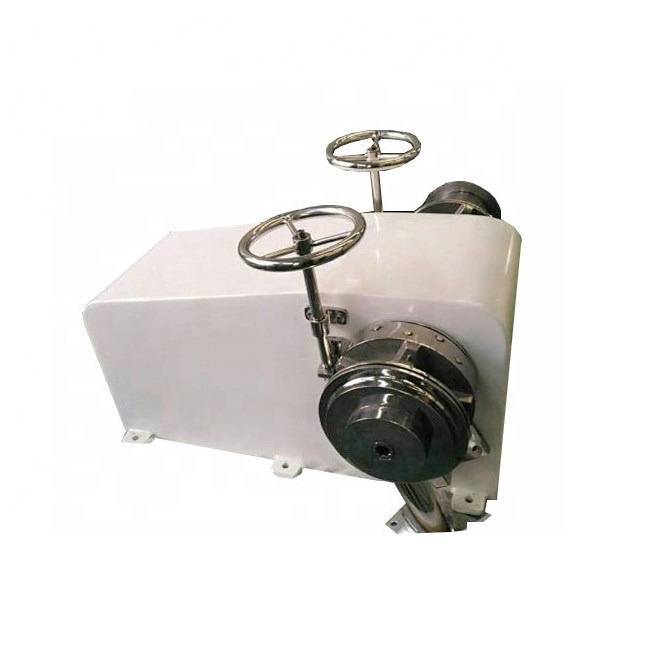

2200W 3PH Two gypsy marine electric horizontal windlass GB001H
Click on the image to view the original image
Product： views：22200W 3PH Two gypsy marine electric horizontal windlass GB001H
Branch： JUVI
Size： 58X58X58 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:58
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
GB006H
Power Source:
Electric
Application:
Boat
Product name:
2200W 3PH Two gypsy marine electric horizontal windlass
Motor power:
2200W
Max. Load (kg):
190
Max. Pull (kg):
600
Weight:
160kg
Power supply:
220V 380V
chain Size:
12.5mm
Usage:
boat marine anchor pulling
Max.Line Speed(m/min):
30m/min
usage:
boat/ship/yacht/marine

Packaging & Delivery

Selling Units:
Single item
Single package size:
58X58X58 cm
Single gross weight:
40.0 kg
Package Type:
Standard packing
Lead Time:
Quantity(Piece)1 - 30>30
Est. Time(days)7To be negotiated
Product Description

2200W 3PH Two gypsy marine electric horizontal windlass

Model

Net Weight

(kg)

Power

Supply

Motor

No Load

Absorption

Max. Load

(kg)

Max. Pull

(kg)

Line SpeedRope SizeChain Size
SH40013.512V/24V600W  60022m/min6/7mm
SH1000181000W  75025m/min8mm
JVH-0111612V/24V600W50A19060030m/min12-14mm6-7mm
JVH-01225.51000W90A35075025m/min14-16mm8-10mm
JVH-013321400W125A520110025m/min18-20mm
JVH-014341600W140A660140020m/min20-24mm10-12mm
JVH-01536220V/380V2000W6A900200010-13mm
JVH-016383000W9A1200250010-13mm
EB20008.512V/24V    6 feet/min
EB300011
GB001H160 2200W 19060030m/min 12.5mm
GB002H260 3500W 35075025m/min 14mm
GB003H320 4000W 5201100 16mm
GB004H410 5000W 660140020m/min 17.5mm
GB005H490 6000W 9002000 19mm
GB006H530 7500W 12002500 20.5mm



Features:

1.Twin gypsy, twin brakes, one capstan, but you also choose twin capstans.

2.Independent operation of capstans and gypsy by declutching the drive.

3.Simple deck mounted installation with no under deck parts.

4.Simplified maintenance with ability to strip the running gear (chain-wheel and drum) from the windlass without disturbing the windlass mounting.

Other products

Company Information

1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.

2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)

3. Marine deck mooring: Anchor, Anchor chain.

4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.

5. Customized products according to customers" request.







Advantages





Customers Visiting





Packaging & Shipping

I. Packaging

1.Wooden Case;   2.Iron Frame;    3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.



FAQ

Q1: Why we choose you?

  11 professional engineers can provide overall solution services.

  13 years specialising in marine deck equipment .

  18 long-term cooperation supporting factories.

  24 hours a day after-sale technical support .

Q2: What kind of payments do you accept?

T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..

Q3: How about the Delivery Time?

  We could finish the production within 30 days

Q4: What"s the MOQ?

   MOQ is 1 set.
