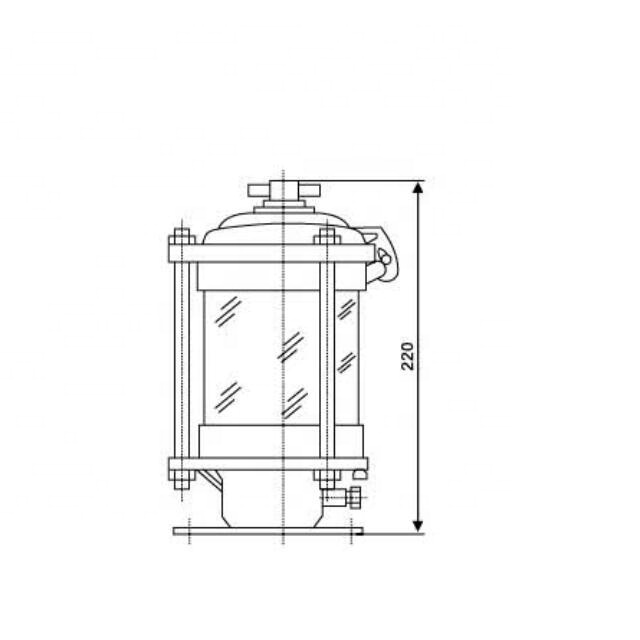

40W 220V marine anchor light fixture
The scope of application
Applied to the ships as to navigation lamp signal of use to anchor and take the ground as lamp signal.
Products characteristic

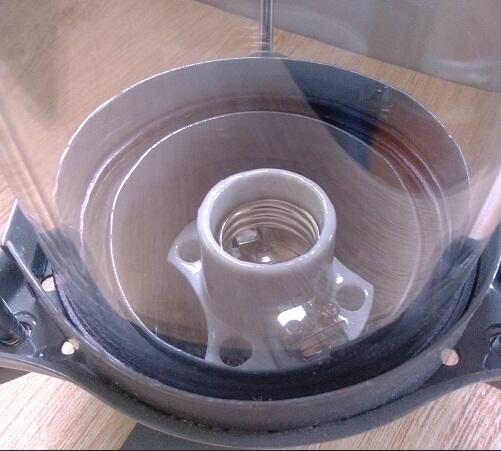

1.The shell is made of good quality steel, lampshade adopts good quality glass.
2.The shell structure has good seal performance, and it is convenient to install and remove.
Adopt standard
1. Approval by CCS(China Classification Society), certificate number 0051SQ20619ROM.
2. Conform to (THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972) and (GRADE ENTRY NORMS FOR STEEL SHIPS)
3. Conform to the standard of marine electric signal light"s technical condition G/T3028-1995.
Specifications
Name/Type |
Visibility | Lamp Holder | Bulb Power | Level arc |
Color |
Weight |
CXH8-1 Anchor light |
3n.m |
E27 |
220V/40 |
360° |
Transparent |
1.7kg |
CXH8-2 Anchor light |
2n.m |
Bl5d |
24V/15W |
360° |
Transparent |
0.75kg |
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
