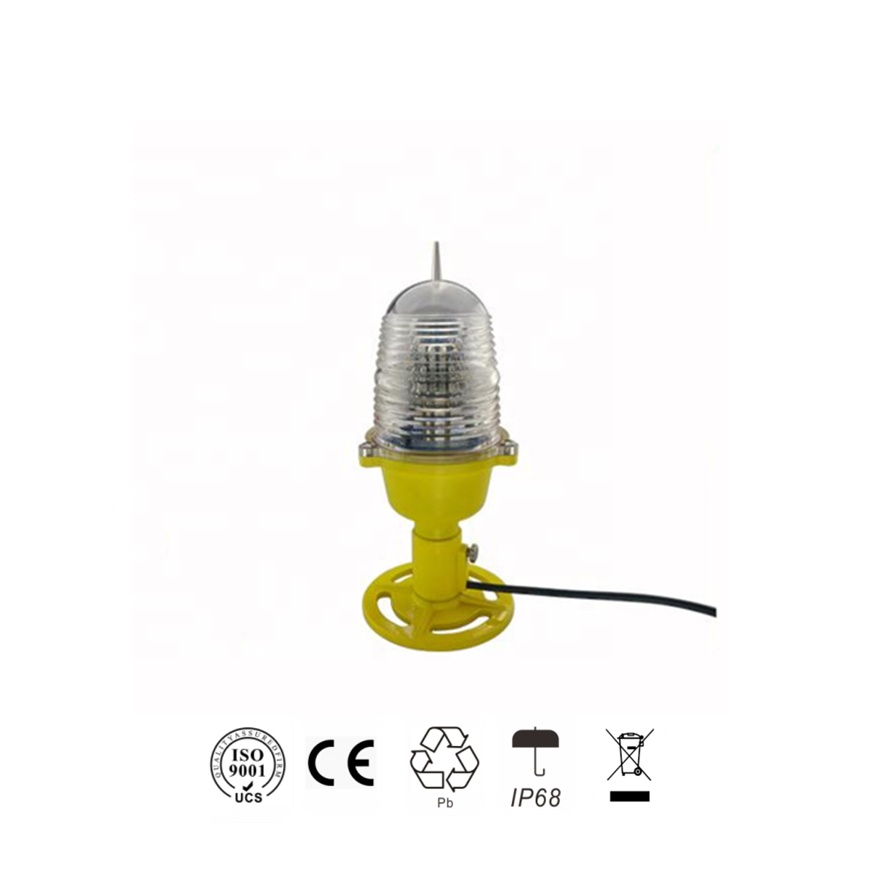

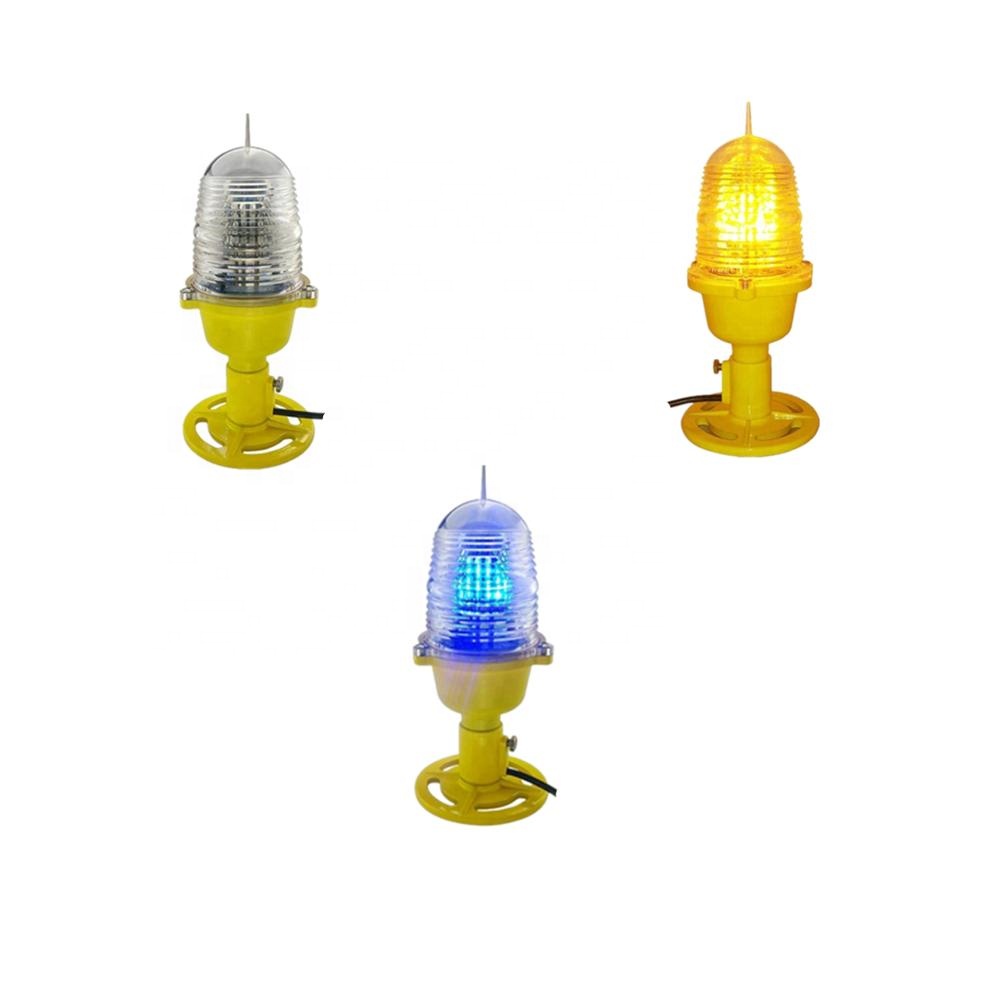

JV-HP-T Airport LED Obstruction Runway Warning Light
JV-HP-T Taxiway Edge Light installed on the edge of the helipad taxiway. It emit blue steady burning light at night. Light base has Fragile coupling which effectively reduce secondary damage if aircraft hit the light.
| SPECIFICATIONS | JV-HP-T Airport LED Obstruction Runway Warning Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Blue |
| Intensity(cd) | ≥25cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12-48VDC) or AC(110-240VAC) |
| Power(W) | 7 |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 93×93×12 |
| Dimension(mm) | 136×136×250 |
| Weight(kg) | 1.4 |
| Base | Frangible coupling |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Ambient Temperature(℃) | -55℃~+70℃ |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume | Heliports 5.3.6 |
| Options Available | Powder-coated color |
| Infrared LED compatitble for NVG (Night | |
| Vision Goggles) | |
| Marine Treated | |
| Power coated color |
1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
