The scope of application
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic
1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment.

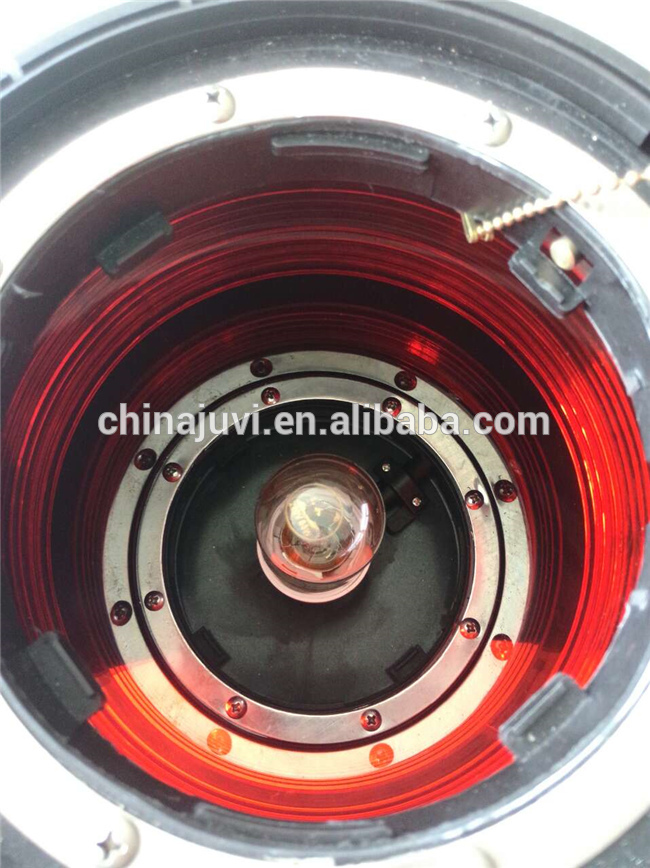

3. The signal lights uses exclusive LED illuminant which accords with ship rules and reguations, More energy efficient, longer working life.
4. The signal lights can work normally under the temperature -30"C -55"C.
Adopt standard
GB/T 3028, MSC 253(8) resolution, THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA, 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS.
Specifications
| Visibility | Level arc | Illuminant | Protection class | Cable outside Diameter (mm) | Color | Weight | Rated voltager | Power | |
CXH-101PL double-deck navigation signal light | CXH1-101PL Starboard light | 3n.m | 112.5. | LED | IP56 | 10~12 | Green | 6.2kg | AC100-240V 50/60Hz, DC24V | 2*8W |

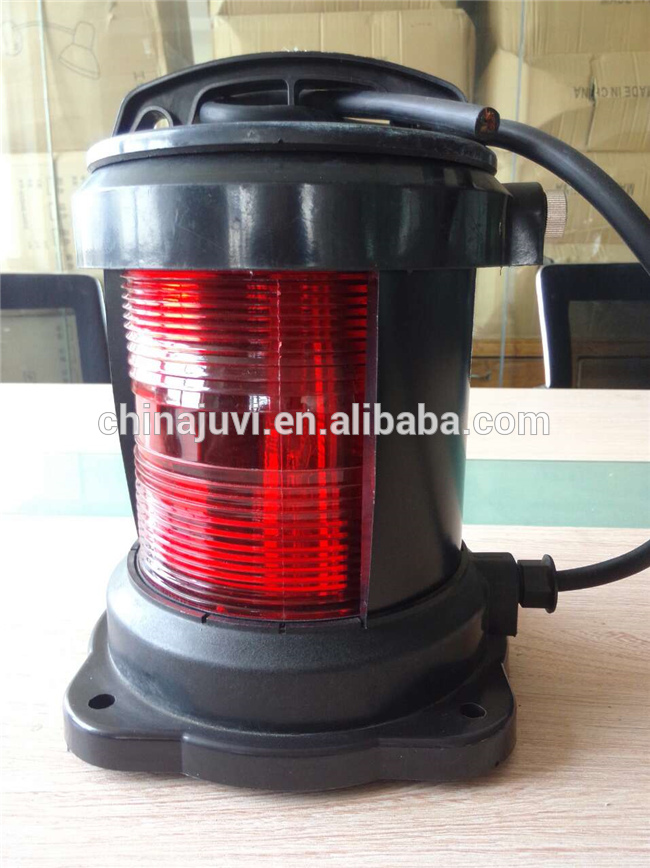

CXH2-101PL Port light | 3n.m | 112.5. | Red | 6.2kg | ||||||
CXH3-101PL Masthead light | 6n.m | 225. | White | 6.2kg | ||||||
CXH4-101PL Stem light | 3n.m | 135. | White/Yellow | 6.2kg | ||||||
CXH6-101PL All-round light | 3n.m | 360. | Red/Green/White | 6kg |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label,Color Inner Box,etc |
| Delivery | By Courier,By Air,By Sea |
| Port | Ningbo,Shanghai,Guangzhou |
