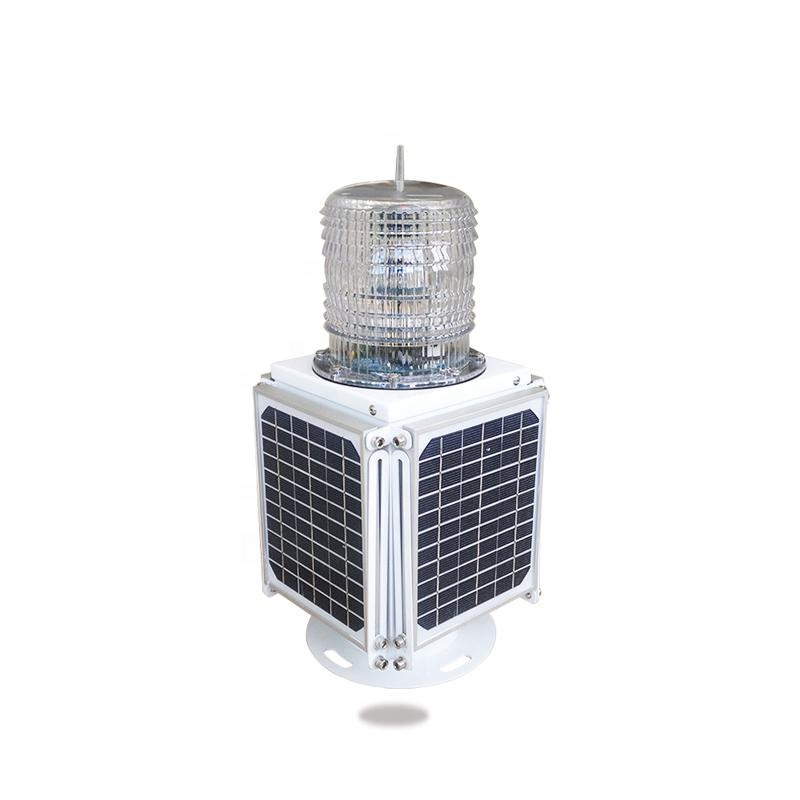

JV-LS-C-4S Sea LED Solar Lantern for Boat Navigation Light

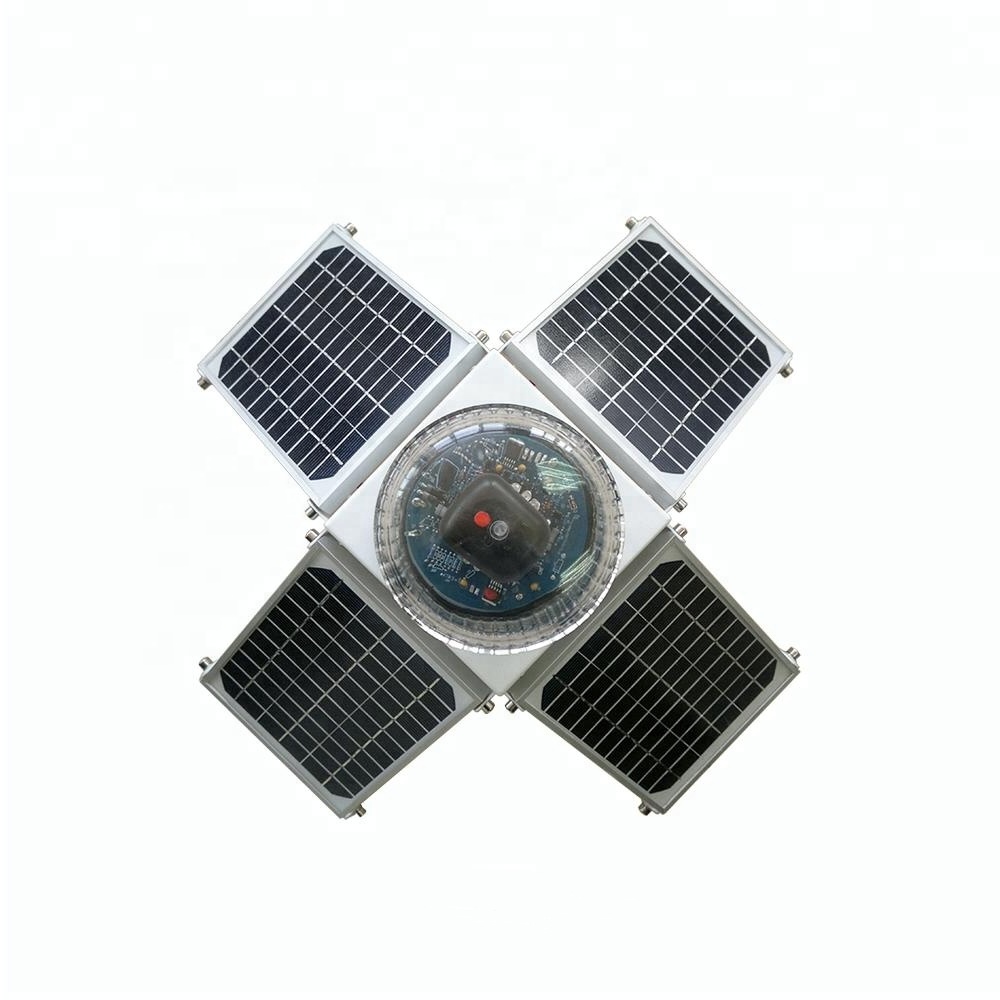

This This LED Marine Lanterns is completely self-contained lantern. Four (4) solar panels are integrated into the assembly and mounted to collect sunlight at all angles. And all solar panel vertical angle is adjustable(45°~90°) ON/OFF button located interface, so there is no need to open the light, user could turn on/off light easily.
| SPECIFICATIONS | JV-LS-C-4S Solar Powered Marine Lanterns |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red, green, yellow, white, blue |
| Intensity(cd) | 15cd (3nm),35cd (4nm),75cd(5NM),(6NM) |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | >9 |
| Flash Characteristics | Adjustable 256 IALA light characteristics |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| 24hours operation as option | |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 12Vdc |
| Power(W) | 24W |
| Circuit Protection | Integrated |
| Solar Characteristics | |
| Solar Module Type | Mono-crystalline Silicon |
| Output(watts) | 24W (6W×4) |
| Charging Regulation | Microprocessor controlled |
| Battery Characteristics | |
| Battery type | VRLA (Valve-regulated Lead Acid Battery) |
| Battery Capacity (Ah) | 12 |
| Nominal Voltage (V) | 12 |
| Battery Service Life | Average 3 years |
| Autonomy (hours) | Steady: 100 |
| Flashing: 240 | |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 160×160×M10 |
| Dimension(mm) | 220×220×470 |
| Weight(kg) | 7.5 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| IALA | Signal colors comply to IALA E-200-1 |
| Options Available | Charging port |
| Remote Control | |
| Auto/Manual toggle switch | |
| Bluetooth Remote Control 256 flashes | |
| GPS synchronization |
1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
