Click on the image to view the original image
- Input Voltage(V):
- 220
- Lamp Luminous Flux(lm):
- 6900
- Beam Angle(°):
- 360
- Working Temperature(℃):
- -30 - 30
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Stainless Steel
- IP Rating:
- IP56
- Certification:
- BV, CE
- Place of Origin:
- China
- Brand Name:
- JUVI
- Model Number:
- JV26-B
- Application:
- Boat yacht, marine search light
- Light Source:
- Halogen Bulbs
- Product Name:
- 300W long rangemarine search light
- Voltage:
- 110V/220/230V
- Power:
- 300W
- Outside diameter of cable:
- 10-12mm
- Protection class:
- IP56
- Material:
- stainless steel
- Luminous flux:
- 6900Lm
- Weight:
- 16.5kg
- Lamp holder:
- GY9.5
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 64X42X44 cm
- Single gross weight:
- 20.0 kg
- Package Type:
- Netural packing

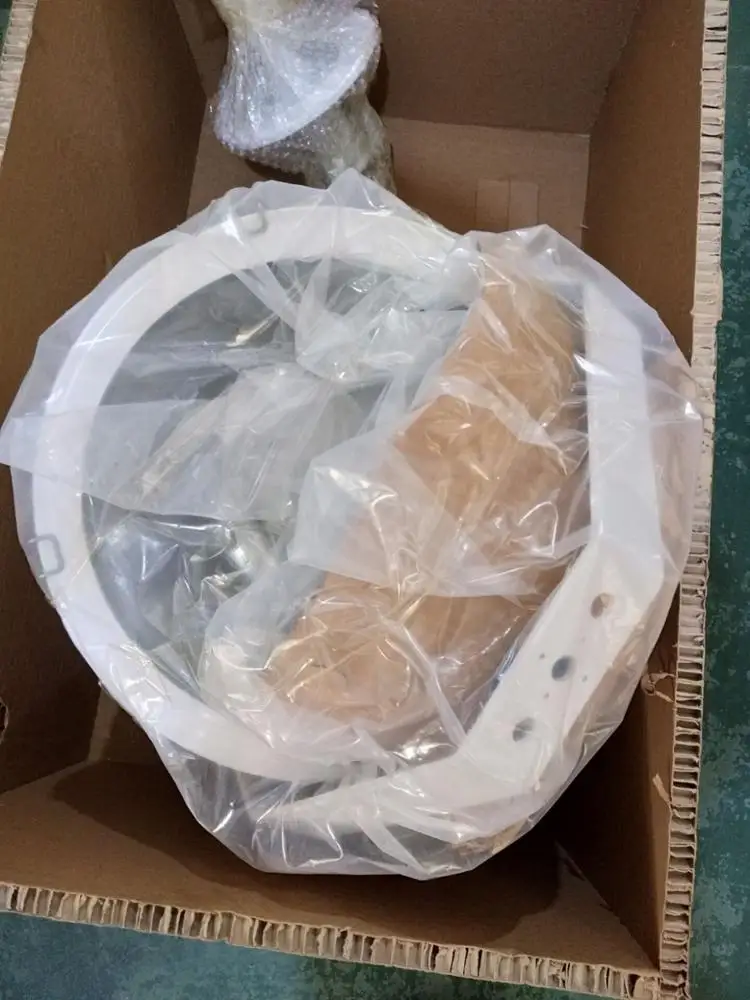

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 50 >50 Est. Time(days) 7 To be negotiated
300W long range marine search light
The scope of application
1. Applied to far distance illumination and searching when night navigation, especially for illumination of sea-route and two banks and surface search when accrose the
complex water area, such as narrow channel and the inland river riveway etc.
2. Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
Products characteristic
1. The shell is made of good quality stainless steel, has good quality stainless steel bracket, good quality toughened glass lampshade, high quality brass base.
2. The lamp bend for +30° degrees by joy stick, adjust 350°degrees horizontally, equipped joy stick.
3. Parallel light-beam, far illumination distance, concentrated light.
4. Conform to<GRADE ENTRY NORMS FOR STEEL SHIPS>.
Specifications
| Type | Voltage | Power | Luminous flux | Lamp holder | Illuminant | Cable outside diameter | Protection class | Weight |
TG26-B SEARCH LIGHT | 24V | 250W | 5600 | G6.35 | Tungsten halogen light | φ10-φ12 | IP56 | 20.5kg |
| 220V/50Hz 220V/60Hz | 300W | 6900 | GY9.5 | |||||
| 500W | 12500 | |||||||
TG27-B SEARCH LIGHT | 1000W | 23000 | 20kg | |||||
TG28-B SEARCH LIGHT | 2000W | 53000 | GY16 | 31.5kg |
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
Address:3Rd Buliding, Xinke International Building,Yubei District, Chongqing, China
