Chongqing Juvi Helipad Light
| Heliport Light | ||||||||||||
| No. | Type | Flash Characteristics | Intensity(cd) | Available Colors | Light Source | Installation size(mm) | Weight(KG) | Overall size(mm) | Power(W) | Operating Voltage | ||

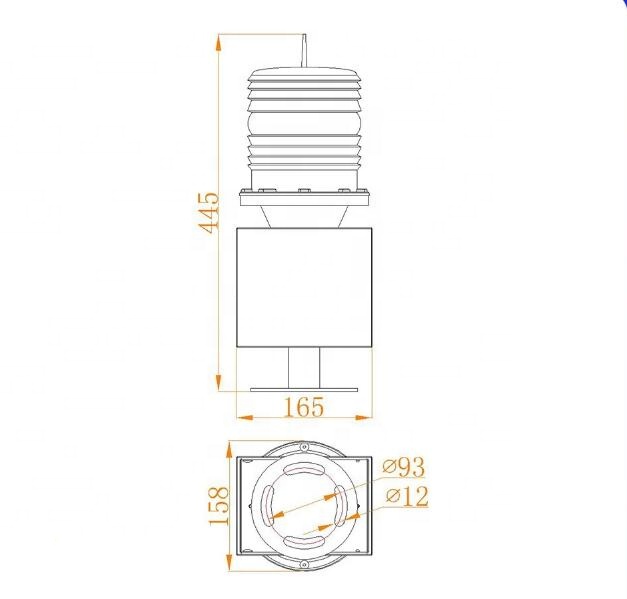

| 1 | JV-HP/B | Flash | ≥ 2500cd | White | LED | Φ100×12 | 3 | Φ158×410 | 15W | 100-265VAC | ||
| 2 | JV-HP/A | Steady burning | ≥ 100cd | Green, White (Other color is available) | LED | Φ194×138 | 4.9 | Φ199×146 | 20W | 100-240VAC | ||

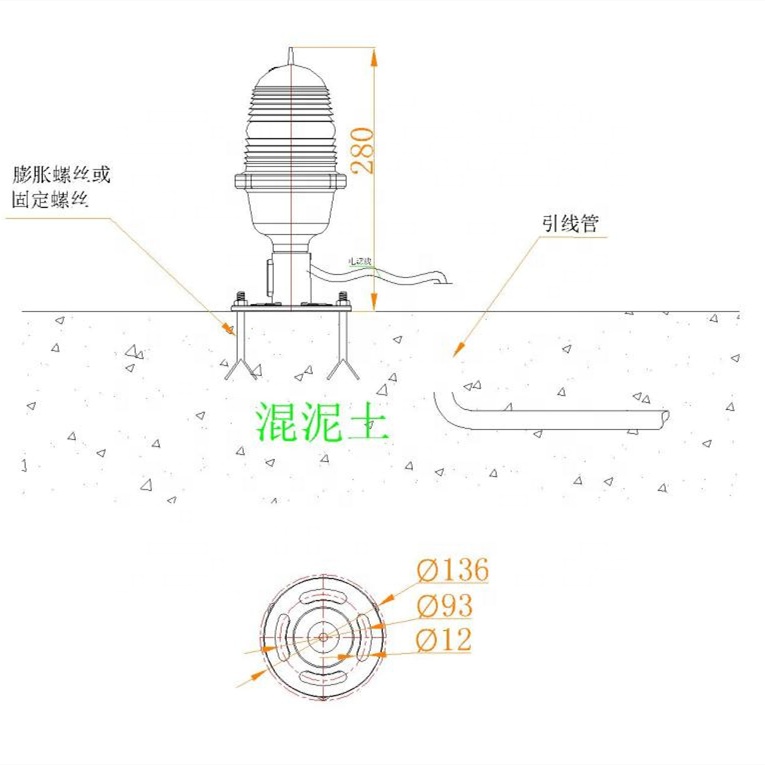

| 3 | JV-HP/E | Steady burning | ≥ 25cd | Green, White (Other color is available) | LED | Φ93 × Φ12 | 1.4 | Φ136×280 | 10W | 100-240VAC | ||
| 4 | JV-HP/U | Steady burning | ≥ 50cd | Green, White (Other color is available) | LED | Φ194×138 | 4.9 | Φ199×146 | 20W | 100-240VAC | ||
| 5 | JV-HP/T | Steady burning | ≥ 50cd | Green, White (Other color is available) | LED | Φ93 × Φ12 | 1.4 | Φ136×280 | 10W | 100-240VAC | ||
1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
Adress: Xinke International Building, Qibo Center, Liangjiang New Area, Chongqing, China
Contact for more details!
