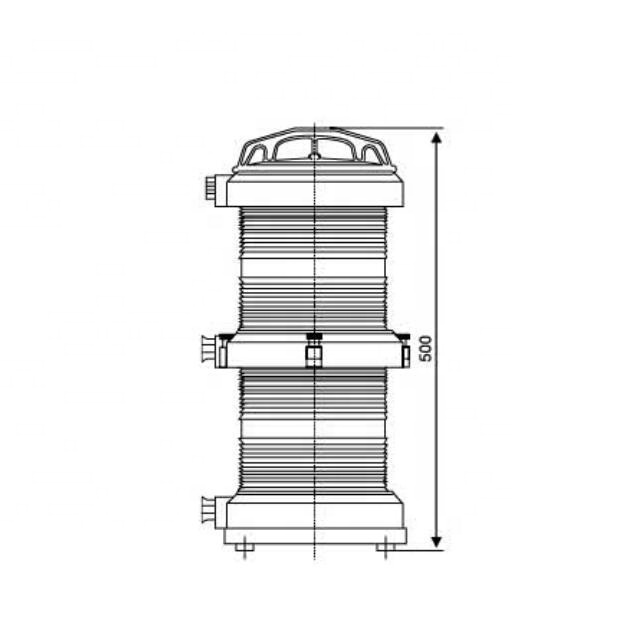

12V 24V marine navigation light all round boat light
The scope of application
Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic
1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment.
3. The connection between the lamp holder and the light base is clamshell type, it is easy to unscrew the top cover and replace the bulb, this structure is more stable than the previous plug-in type.
4. The signal lights adopt the signal light"s bulb which conform to the ship norm. and the average life is more than 700h.
5. The signal lights can work normally under the temperature -30℃-55℃.
Adopt standard
1. Conform to THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972 and GRADE ENTRY NORMS FOR STEEL SHIPS
2. Conform to the international standard IEC60598-1-2008
3. Conform to the standard of marine electric signal light"s technical
Specifications
| Type | Visibility | Level arc | Lamps holder | Bulb | Cable outside diameter | Color | Weight |
| CXH1-101P | 3n.m | 112.5° | P28S | 24V/2×60W60cd 110V/2×60W60cd 220V/2×60W60cd | φ12-φ13 | Green | 5.00kg |
| CXH2-101P | 3n.m | 112.5° | Red | 5.00kg | |||
| CXH3-101P | 6n.m | 225° | Transparent | 4.90kg | |||
| CXH4-101P | 3n.m | 135° | Transparent Yellow | 4.80kg | |||
| CXH6-101P | 3n.m | 360° | Red Green Transparent | 4.50kg |
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
