Home > Products > marine anchor 12v electric SS316 horizontal winch windlass JVH-011
marine anchor 12v electric SS316 horizontal winch windlass JVH-011
Click on the image to view the original image
Product： views：2marine anchor 12v electric SS316 horizontal winch windlass JVH-011
Branch： JUVI
Type： horizontal winch windlass
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 18:58
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
JVH-011
Power Source:
Electric
Application:
boat yacht
Product name:
marine anchor 12v electric SS316 horizontal winch windlass
Max Pressure(bar):
600W
Max. Load (kg):
190
Chain Size:
6-7mm
Max. Pull (kg):
600
Max.Line Speed(m/min):
30m/min
Type:
horizontal winch windlass
Weight:
16kg
Rope Size:
12-14mm
Power supply:
12V 24V
Supply Ability
Supply Ability:
10000 Pair/Pairs per Month
Packaging & Delivery
Packaging Details
Standard packing
Port
Shanghai/Shenzhen/Guangzhou/Ningbo/Shanghai
Lead Time:
Quantity(Pieces)1 - 50 >50
Est. Time(days)7To be negotiated
Product Description

marine anchor 12v electric SS316 horizontal winch windlass

Model

Net Weight

(kg)

Power

Supply

Motor

No Load

Absorption

Max. Load

(kg)

Max. Pull

(kg)

Line SpeedRope SizeChain Size
SH40013.512V/24V600W  60022m/min6/7mm
SH1000181000W  75025m/min8mm
JVH-0111612V/24V600W50A19060030m/min12-14mm6-7mm
JVH-01225.51000W90A35075025m/min14-16mm8-10mm
JVH-013321400W125A520110025m/min18-20mm
JVH-014341600W140A660140020m/min20-24mm10-12mm
JVH-01536220V/380V2000W6A900200010-13mm
JVH-016383000W9A1200250010-13mm
EB20008.512V/24V    6 feet/min
EB300011
GB001H160 2200W 19060030m/min 12.5mm
GB002H260 3500W 35075025m/min 14mm
GB003H320 4000W 5201100 16mm
GB004H410 5000W 660140020m/min 17.5mm
GB005H490 6000W 9002000 19mm
GB006H530 7500W 12002500 20.5mm



Features:

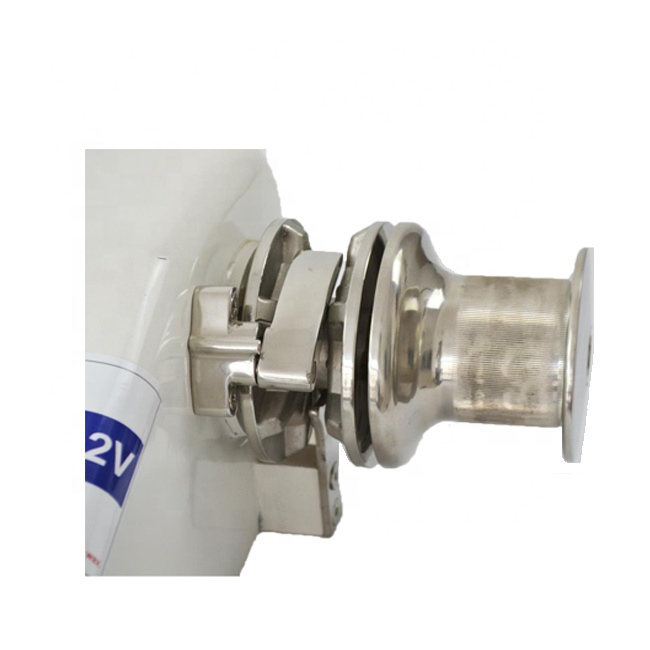

1.Twin capstan, single gypsy, but you also can choose twin gypsy.

2.Reversible motor.

3.Independent operation of capstans and gypsy by declutching the drive.

4.Simple deck mounted installation with no under deck parts.

5.Simplified maintenance with ability to strip the running gear (chain-wheel and drum) from the windlass without disturbing the windlass mounting.

6.Totally sealed gearbox with ground worm drive.

7.Horizontal windlass casing are cast marine grade aluminium alloy with white epoxy enamel finish.

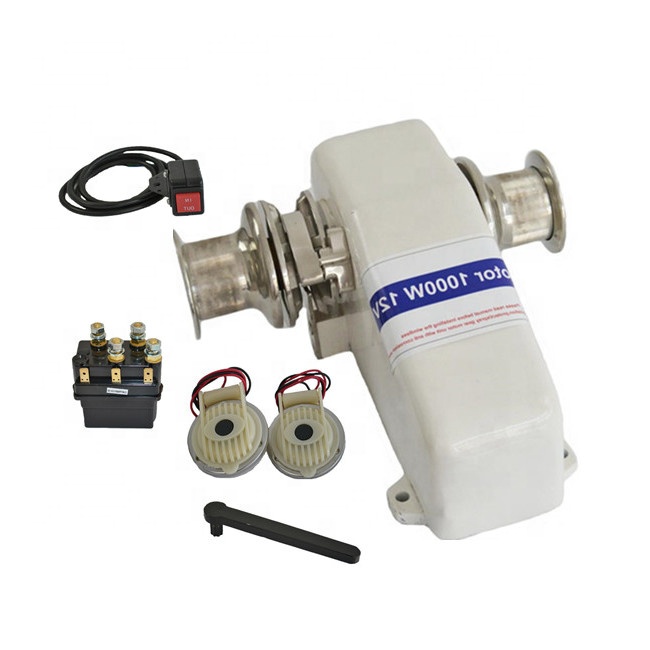

8.Fit include hand-switch,foot switch,manual handle,solenoid,circuit breaker.

9.1800 days warranty.
