Click on the image to view the original image
- Place of Origin:
- China
- Brand Name:
- JUVI
- Model Number:
- JVW-015S
- Power Source:
- Electric
- Application:
- Boat yacht
- Product name:
- shovel anchor winch drum for sailboat yacht
- Motor:
- 2500W
- Power Supply:
- 12V 24V
- Max. Load:
- 980kg
- Max. Pull:
- 1800kg
- Line Speed:
- 20m/min
- Chain Size:
- 10-13mm
- Rope Size:
- 24-30mm
- No Load Absorption:
- 105A
- Weight:
- 115kg
- Supply Ability:
- 100000 Set/Sets per Month
- Packaging Details
- Netural packing
- Port
- Shanghai/Ningbo/Guangzhou/Shenzhen

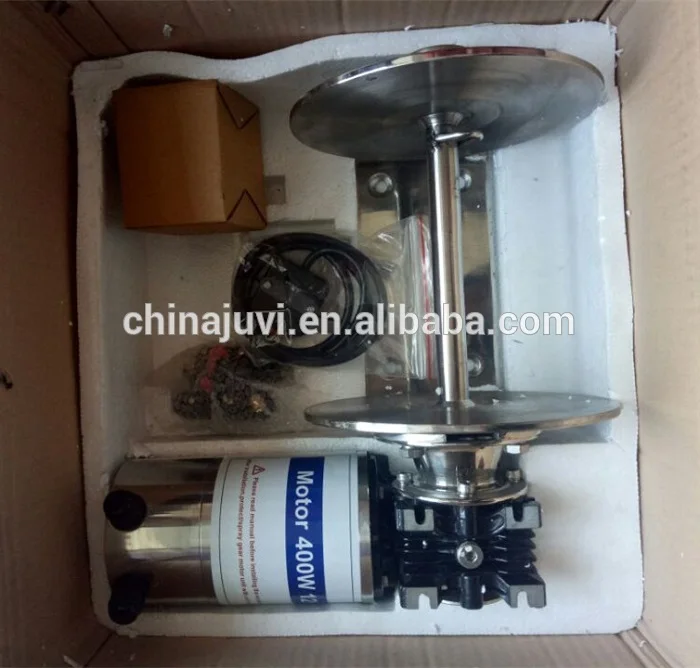

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 30 >30 Est. Time(days) 7 To be negotiated

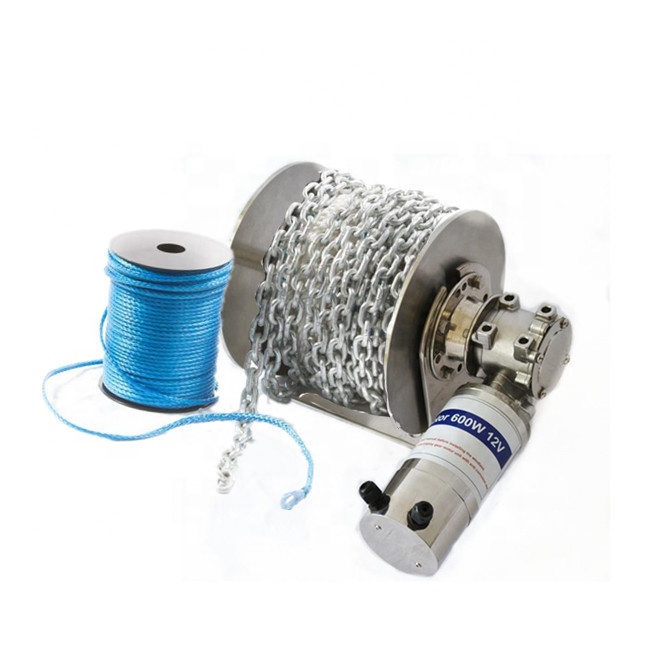

shovel anchor winch drum for sailboat yacht
| Model | Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| JVW-010 | 9 | 12V/24V | 400W | 30A | 120 | 320 | 30m/min | 6mm | 5-6mm |
| JVW-011 | 16 | 600W | 50A | 190 | 600 | 30m/min | 6-8mm | 5-6mm | |
| JVW-012 | 20 | 1000W | 90A | 350 | 750 | 25m/min | 8-10mm | 6-8mm | |
| JVW-013 | 30 | 1400W | 120A | 480 | 900 | 20m/min | 10-14mm | 8-10mm | |
| JVW-014 | 43 | 1600W | 135A | 680 | 1200 | 20m/min | 10-14mm | 8-10mm | |
| JVW-015 | 115 | 24V/48V | 2500W | 105A | 980 | 1800 | 20m/min | 24-30mm | 10-13mm |
| JVW-010S | 12 | 12V/24V | 400W | 30A | 120 | 320 | 30m/min | 6mm | 5-6mm |
| JVW-011S | 17.5 | 600W | 50A | 190 | 600 | 30m/min | 6-8mm | 5-6mm | |
| JVW-012S | 22 | 1000W | 90A | 350 | 750 | 25m/min | 8-10mm | 6-8mm | |
| JVW-013S | 35 | 1400W | 120A | 480 | 900 | 20m/min | 10-14mm | 8-10mm | |
| JVW-014S | 44 | 1600W | 135A | 680 | 1200 | 20m/min | 10-14mm | 8-10mm |
Features:
1.The fully sealed gearbox is driven by a vertically mounted, permanent magnet motor.
2.Gearbox housing are marine grade alloy and drum is stainless steel.
3.The speed of retrieval increases with each revolution.
4.The rope and chain does not twist and tangle causing the unit to malfunction.
5.The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well.
6.To protect the motor, the circuit breaker will trip out if there is a power overload (for example if the anchor is stuck on the bottom).
7.Easily disassembled for servicing.
8.Fit include hand-switch, solenoid, circuit breaker.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
Address:3Rd Buliding, Xinke International Building,Yubei District, Chongqing, China
Contact Sophie for more details!
