- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Model Number:
- JVW-014
- Power Source:
- Electric
- Application:
- Boat
- Product name:
- 12V 24V 1600W electric double drum winch
- Motor:
- 1600W
- Power Supply:
- 12V 24V
- Max. Load:
- 6800kg
- Max. Pull:
- 1200kg
- Line Speed:
- 20m/min
- Rope Size:
- 10-14mm
- Chain Size:
- 8-10mm
- No Load Absorption:
- 1350A
- Weight:
- 44kg
- Supply Ability:
- 100000 Set/Sets per Month
- Packaging Details
- Netural packing
- Port
- Shanghai/Ningbo/Guangzhou/Shenzhen

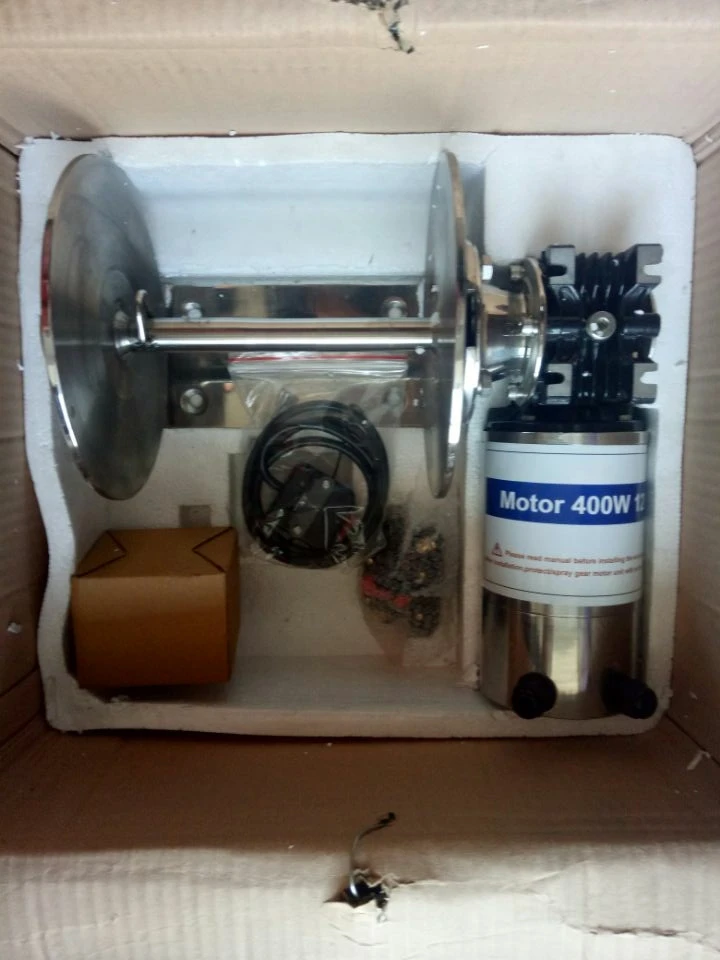

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 30 >30 Est. Time(days) 7 To be negotiated

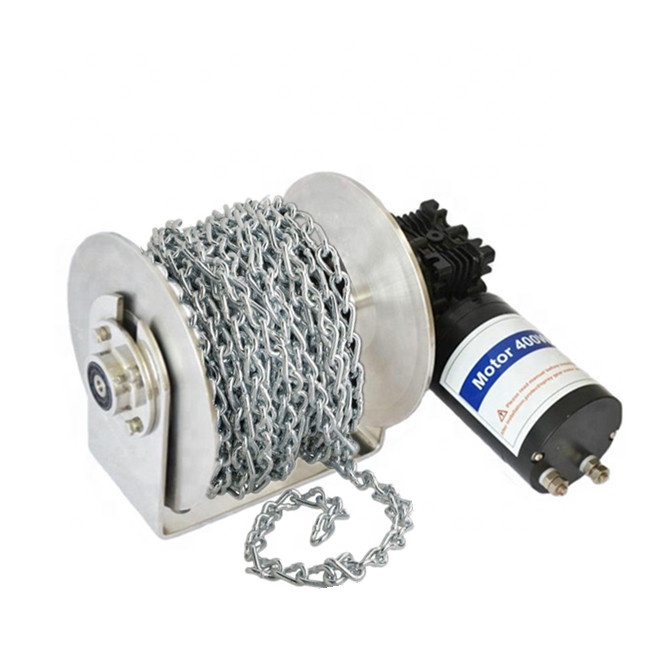

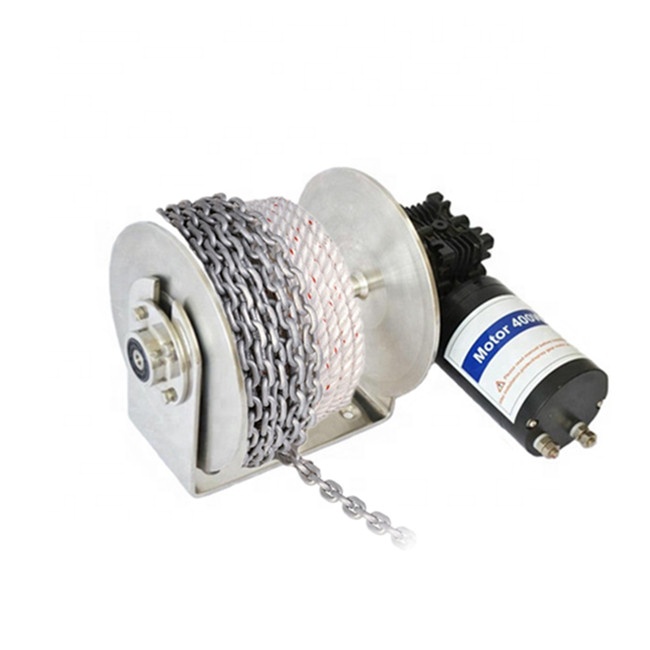

12V 24V 1600W electric double drum winch
| Model | Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| JVW-010 | 9 | 12V/24V | 400W | 30A | 120 | 320 | 30m/min | 6mm | 5-6mm |
| JVW-011 | 16 | 600W | 50A | 190 | 600 | 30m/min | 6-8mm | 5-6mm | |
| JVW-012 | 20 | 1000W | 90A | 350 | 750 | 25m/min | 8-10mm | 6-8mm | |
| JVW-013 | 30 | 1400W | 120A | 480 | 900 | 20m/min | 10-14mm | 8-10mm | |
| JVW-014 | 43 | 1600W | 135A | 680 | 1200 | 20m/min | 10-14mm | 8-10mm | |
| JVW-015 | 115 | 24V/48V | 2500W | 105A | 980 | 1800 | 20m/min | 24-30mm | 10-13mm |
| JVW-010S | 12 | 12V/24V | 400W | 30A | 120 | 320 | 30m/min | 6mm | 5-6mm |
| JVW-011S | 17.5 | 600W | 50A | 190 | 600 | 30m/min | 6-8mm | 5-6mm | |
| JVW-012S | 22 | 1000W | 90A | 350 | 750 | 25m/min | 8-10mm | 6-8mm | |
| JVW-013S | 35 | 1400W | 120A | 480 | 900 | 20m/min | 10-14mm | 8-10mm | |
| JVW-014S | 44 | 1600W | 135A | 680 | 1200 | 20m/min | 10-14mm | 8-10mm |
Features:
1.The fully sealed gearbox is driven by a vertically mounted, permanent magnet motor.
2.Gearbox housing are marine grade alloy and drum is stainless steel.
3.The speed of retrieval increases with each revolution.
4.The rope and chain does not twist and tangle causing the unit to malfunction.
5.The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well.
6.To protect the motor, the circuit breaker will trip out if there is a power overload (for example if the anchor is stuck on the bottom).
7.Easily disassembled for servicing.
8.Fit include hand-switch, solenoid, circuit breaker.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
