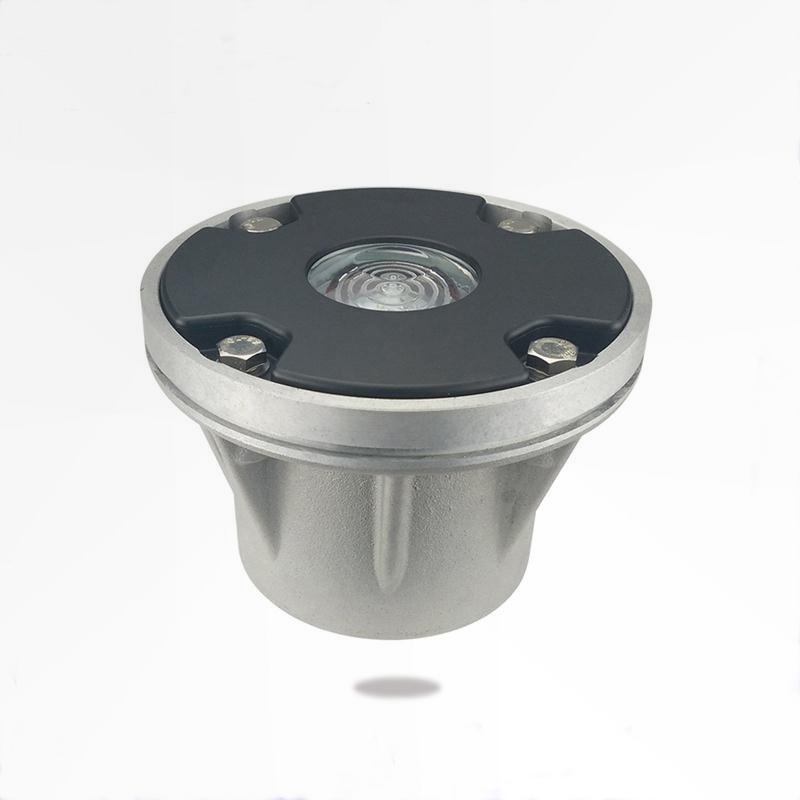

JV-HP-U helipad touchdown and lift off led light LED inset heliport lights
Inset light is always be used at locations where the lights are frequently knocked down by aircraft or maintenance vehicles. JV-HP-U located as near as practicable to the edges of the taxiway, runway turn pad, holding bay, apron or runway, etc., or outside the edges at a distance of not more than 3m.
| SPECIFICATIONS | JV-HP-U Helipad Taxiway Edge Inset Light |
| Light Characteristics | |
| Light Source | Ultra high intensity LED |
| Available Colors | Blue |
| Intensity(cd) | ≥100cd |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 120VAC, 220VAC, 48VDC, 24VDC or others |
| Power(W) | 8 |
| Physical Characteristics | |
| Body Material | Anodized Die-casting aluminum |
| Base Material | Painted aluminum |
| Overall size(mm) | 194×194×138 |
| Installation size(mm) | 199×199×146 |
| Weight(kg) | 4.9 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Ambient Temperature(℃) | -55℃~+70℃ |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume I, 5.3.17 |
| Options Available | Infrared LED compatitble for NVG (Night |
| Vision Goggles) | |
| Marine Treated | |
| Anodized color |
1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
