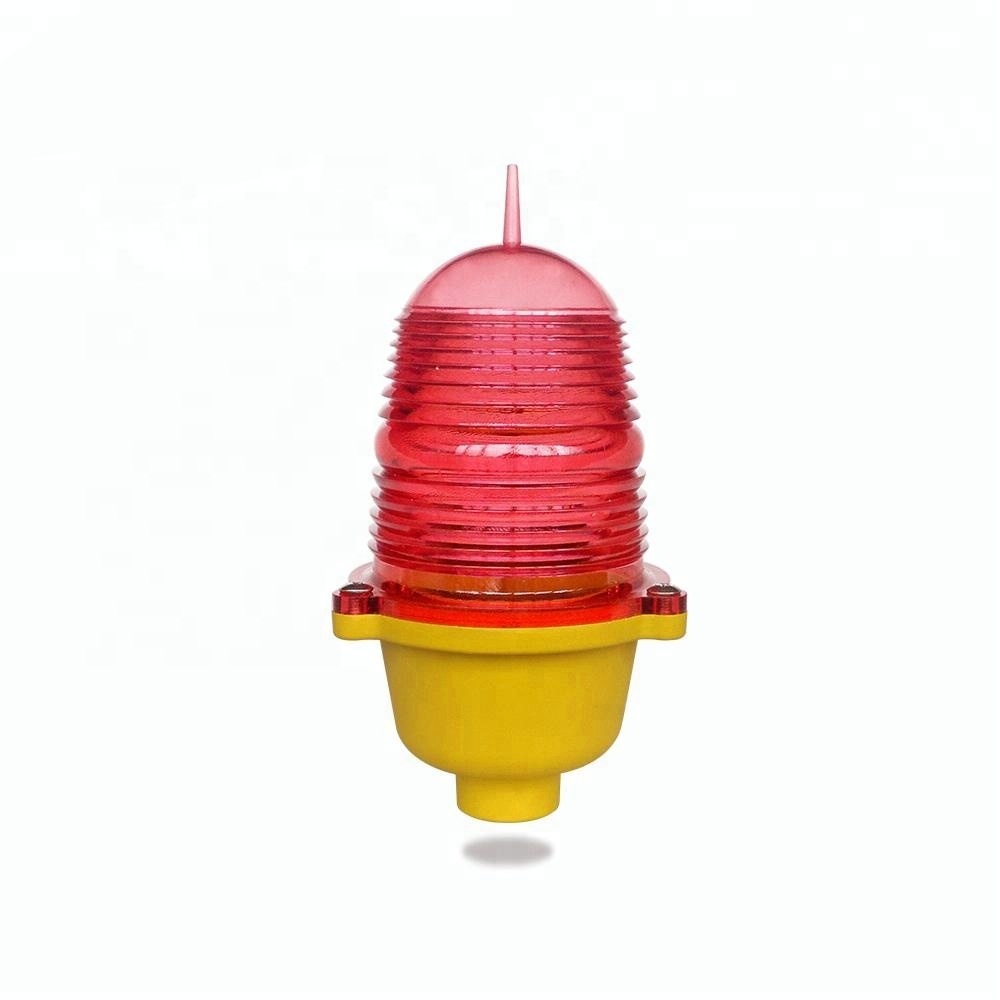

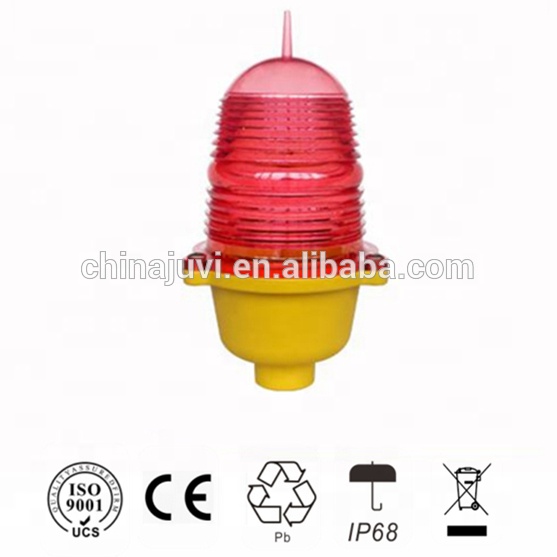

JV-LI-B Steady Burning Low-Intensity Aviation LED Obstruction Red Light
This Low-intensity light is a steady burning aviation obstruction light designed for marking top of obstacle that do not exceed 45 meters in height.
| SPECIFICATIONS | JV-LI-B Low-intensity Single Aviation Obstruction Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Red(Other color is optional) |
| Intensity(cd) | 10cd (type A), 32.5cd(type B), others optional |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady-burning/Flashing(20fpm) adjustable |
| Operation Mode | Dusk-to-dawn Automatically as standard. |
| 24hours operation as option | |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12-48VDC) or AC(110-240VAC) |
| Power(W) | 3 |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |
| Mounting | 3/4" pipe thread as standard or 1" optional |
| Dimension(mm) | 136×136×220 |
| Weight(kg) | 1 |
| Product Life Expectancy | 5 years Plus |
| Environmental Factors | |
| Ambient Temperature(℃) | -55℃~+70℃ |
| Humidity | 10%-95% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | Annex 14 Volume 1,"Aerodrome Design and |
| Operations’ Sixth edition July 2013, table 6.3 | |
| Low-intensity Type A/B Obstacle Light | |
| FAA | L-810 Steady-burning Red Aviation Obstruction |
| Light | |
| Options Available | |
| Flashing rate | |
| Powder-coated color | |
| NVG(Night Vision Goggles) compatible LED | |
| GSM Monitoring |
