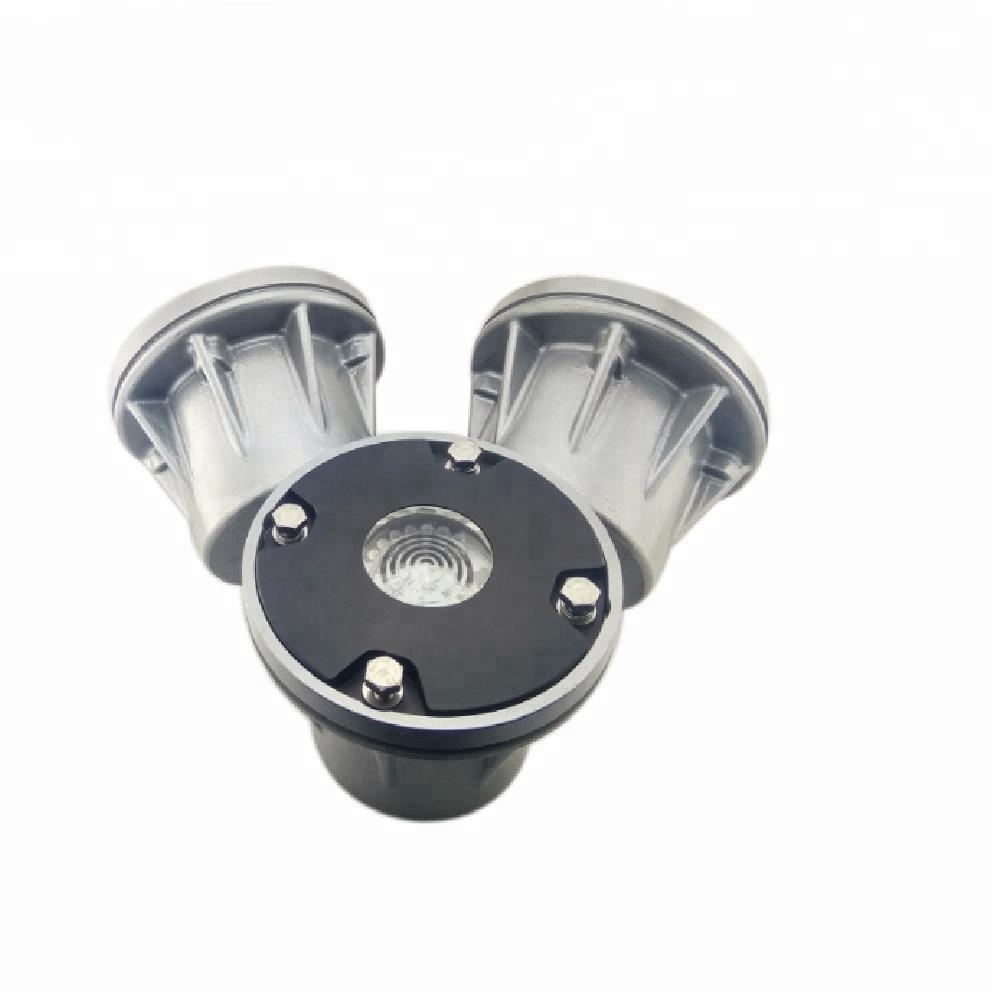

JV-HP-U airport inset light
Inset light is always be used at locations where the lights are frequently knocked down by aircraft or maintenance vehicles. JV-HP-U located as near as practicable to the edges of the taxiway, runway turn pad, holding bay, apron or runway, etc., or outside the edges at a distance of not more than 3m.
| SPECIFICATIONS | JV-HP-U Helipad Taxiway Edge Inset Light |
| Light Characteristics | |
| Light Source | Ultra high intensity LED |
| Available Colors | Blue |
| Intensity(cd) | ≥100cd |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | 120VAC, 220VAC, 48VDC, 24VDC or others |
| Power(W) | 8 |
| Physical Characteristics | |
| Body Material | Anodized Die-casting aluminum |
| Base Material | Painted aluminum |

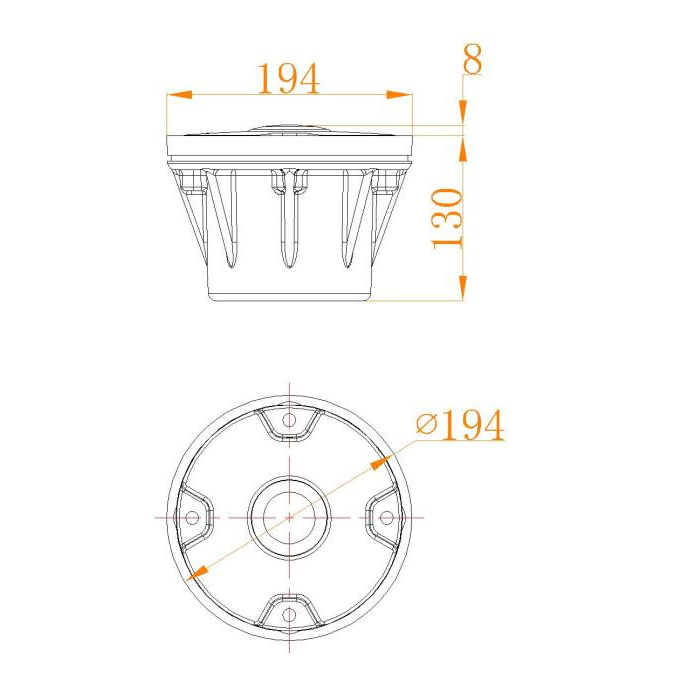

| Overall size(mm) | 194×194×138 |
| Installation size(mm) | 199×199×146 |
| Weight(kg) | 4.9 |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Ambient Temperature(℃) | -55℃~+70℃ |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP68 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume I, 5.3.17 |
| Options Available | Infrared LED compatitble for NVG (Night |
| Vision Goggles) | |
| Marine Treated | |
| Anodized color |
