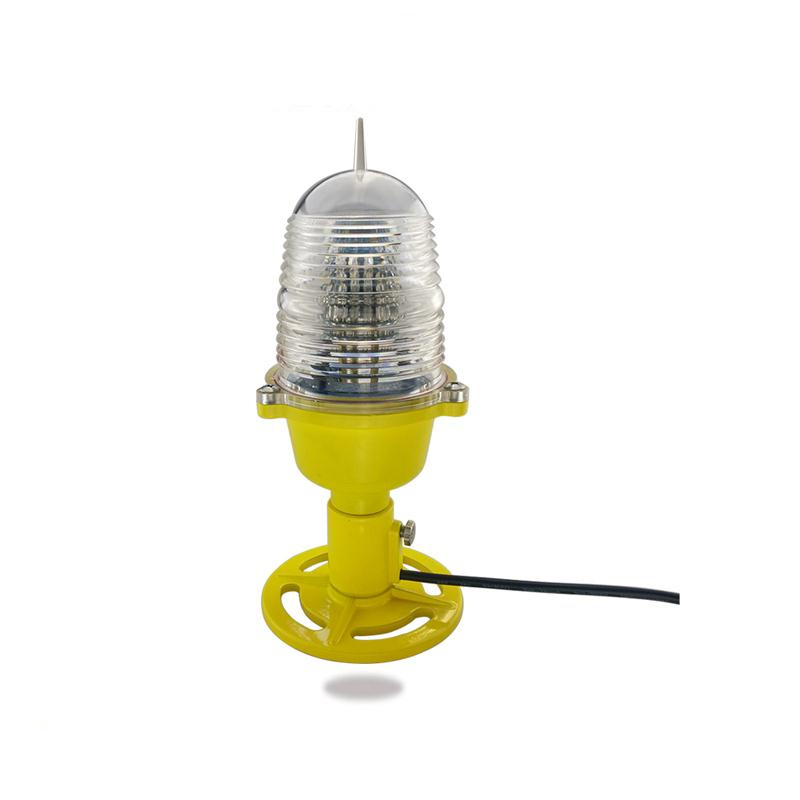

JV-HP-T IP65 Blue Led Steady Burning Taxiway Edge Light Helipad Lights
JV-HP-T Taxiway Edge Light installed on the edge of the helipad taxiway. It emit blue steady burning light at night. Light base has Fragile coupling which effectively reduce secondary damage if aircraft hit the light.
| SPECIFICATIONS | JV-HP-T Helipad Elevated Taxiway Edge Light |
| Light Characteristics | |
| Light Source | LED |
| Available Colors | Blue |
| Intensity(cd) | ≥25cd |
| Horizontal Output(degrees) | 360 |
| Vertical Divergence(degrees) | ≥10 |
| Flash Characteristics | Steady burning |
| Operation Mode | 24hours operation |
| LED Life Experience(hours) | >100,000 |
| Electrical Characteristics | |
| Operating Voltage | DC(12-48VDC) or AC(110-240VAC) |
| Power(W) | 7 |
| Circuit Protection | Integrated |
| Physical Characteristics | |
| Body Material | Polycarbonate |
| Base Material | Powder-coated Die-casting aluminum |
| Mounting | 93×93×12 |
| Dimension(mm) | 136×136×250 |
| Weight(kg) | 1.4 |
| Base | Frangible coupling |
| Product Life Expectancy | Average 5 years |
| Environmental Factors | |
| Ambient Temperature(℃) | -55℃~+70℃ |
| Humidity | 0~100% |
| Wind Speed | 80m/s |
| Waterproof | IP65 |
| Compliance | |
| ICAO | ICAO Annex 14 Volume | Heliports 5.3.6 |
| Options Available | Powder-coated color |
| Infrared LED compatitble for NVG (Night | |
| Vision Goggles) | |
| Marine Treated | |
| Power coated color |
