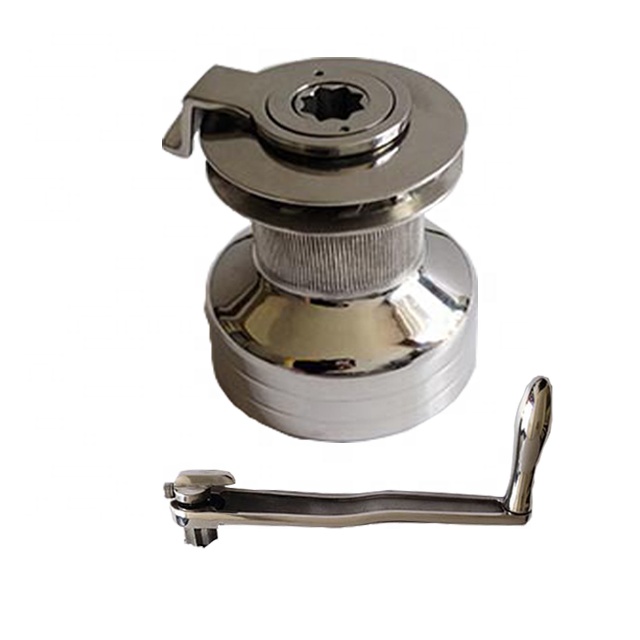

stainless steel yacht marine handle sailing winch
| Model | Weight kg | SWL kg | Line Entry mm | Line Size mm | Gear Ratio | Power Ratio | ||
| 1 st | 2nd | 1 st | 2nd | |||||
| JVSW-001 | 3.8 | 570 | 58 | 8-12 | 2:1 | 16:01 | ||
| JVSW-002 | 5.5 | 690 | 69 | 8-12 | 2:1 | 4.5:1 | 14.2:1 | 29:1 |
| JVSW-003 | 6.5 | 790 | 79 | 8-12 | 1.8:1 | 6:01 | 13.5:1 | 40.5:1 |
| JVSW-004 | 9.5 | 1200 | 84 | 8-14 | 2.5:1 | 7.8:1 | 13.8:1 | 44.6:1 |
| JVSW-005 | 16.5 | 1250 | 86 | 8-14 | 2.8:1 | 9.2:1 | 13.8:1 | 48.8:1 |
| JVSW-006 | 19.5 | 1480 | 115 | 8-16 | 3:01 | 11.5:1 | 13.9:1 | 55:1 |
| JVSW-007 | 23 | 1700 | 122 | 8-18 | 3.2:1 | 15:01 | 13.5:1 | 65:1 |
Designed for boat builders and sailors. Winches feather mirror-polished drums with stainless steel tops, self-sailing jaws. And we’ve completely covered the winch tops so clothing or fingers do not get caught in moving parts. Available in 1 or 2 speed self-sailing styles.
Features:
1.Simple servicing: no tools are required to service the winches.
2.Gripping surface drum: the drum’s gripping surface is shaped for each winch size and drum material and features ribs to maximize gripping power and greatly reduce line wear.
3.Whole mirror-polished: the whole winch mirror-polished, whole stainless steel.
4.Wave spring jaw and feeder arm: the cast stainless steel feeder arm position can be adjusted to smoothly feed the rope out of the jaws and into the cockpit.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
