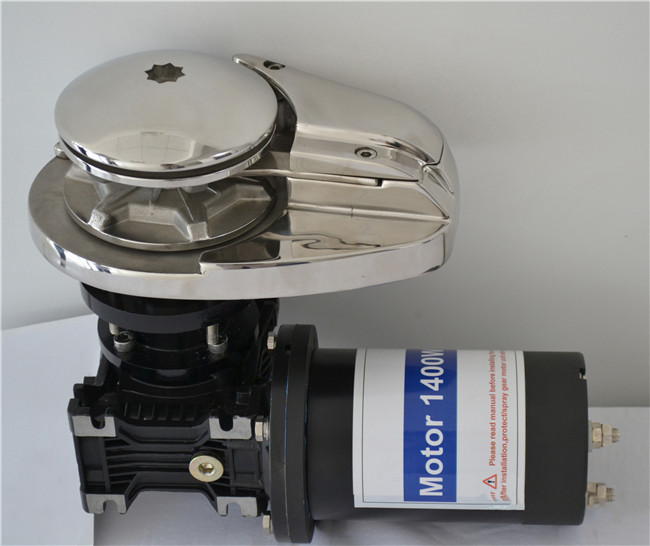

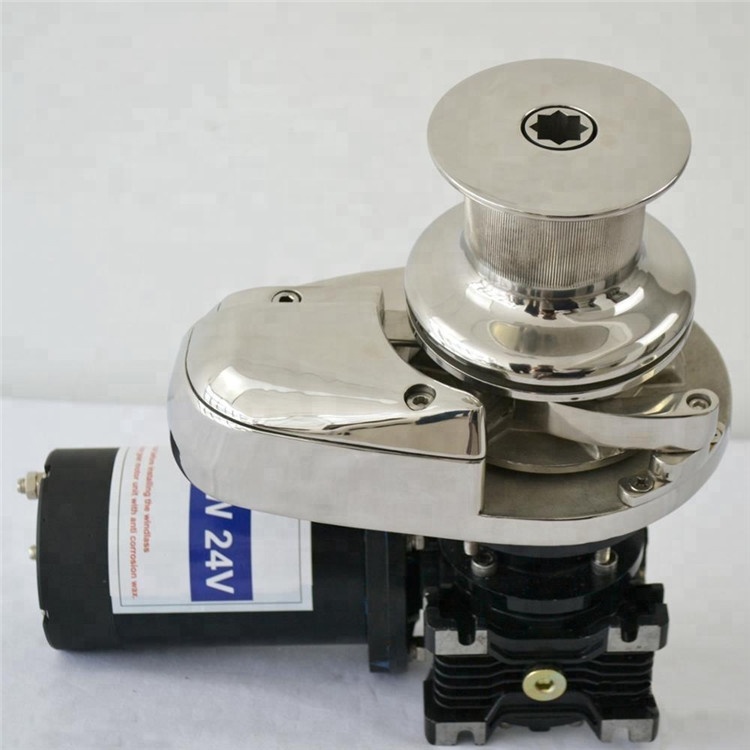

JV811L 1600W stainless steel anchor winch vertical small 12v electric winch for boat yacht
DC Vertical Windlass | Model | Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| JV411L | 9.7 | 12V/24V | 400W | 30A | 125 | 420 | 30m/min | 12-14mm | 6/7mm | |
| JV411H | 10.5 | 130 | 450 | |||||||
| JV511L | 10 | 600W | 60A | 186 | 560 | 25m/min | ||||
| JV511H | 11 | 210 | 600 | |||||||
| JV611L | 16.5 | 800W | 100A | 250 | 700 | 20m/min | 18-22mm | 7/8mm | ||
| JV611H | 18 | 280 | 700 | |||||||
| JV711L | 22.5 | 1200W | 120A | 400 | 1200 | 8/10mm | ||||
| JV711H | 24 | 400 | 1200 | 18-20mm | ||||||
| JV811L | 24 | 1600W | 170A | 660 | 1600 | 20-26mm | 8/10/12mm | |||
| JV811H | 25.5 | 1600 | ||||||||
| JV1011L | 24.5 | 2000W | 1900 | 10/12/13mm | ||||||
| JV1011H | 27.5 | 1900 |
Main Features
• Mirror polished AISI 100% 316 stainless steel base and drum, fully waterproof and rustproof
• Low head (without drum) or high head (with drum)
• Rope and chain combination gypsy
• Independent gypsy and drum operation
• Manual chain release
• IP65 rated high performance motor
• Anodised marine aluminium gearbox
• Full range of power options including AC, DC
• Standard equipment: handle, hand-switch, solenoid.
Optional accessories: foot-switch, circuit breaker, remote control
1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
