- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Model Number:
- JCY42-2E
- Material:
- Steel, steel/PC
- Type:
- European
- Light Source:
- fluorescent
- Number of Lights:
- 2
- Working Lifetime(Hour):
- 10000
- Beam Angle(°):
- 180
- Input Voltage(V):
- 110v 220v
- Support Dimmer:
- No
- Application:
- boat
- Name:
- steel marine fluorescent pendant light fixture with emergency
- Power:
- 2*40W
- Voltage:
- 110V/220V
- Power factor:
- >0.85
- Cable outside diameter:
- 12-16mm
- Protection class:
- IP56
- Weight:
- 8kg
- part:
- With emergency
- Function:
- marine boat ship lighting
- Supply Ability:
- 10000 Set/Sets per Month
- Packaging Details
- Neutral packing
- Port
- Shanghai/Guangzhou/Shenzhen/Ningbo
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 30 >30 Est. Time(days) 7 To be negotiated

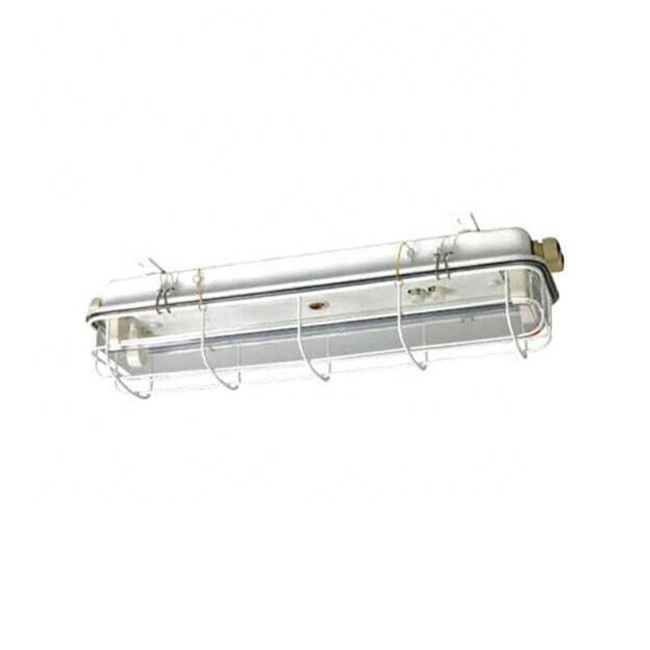

2*40w CCS steel marine fluorescent pendant light fixture with emergency
The scope of application
Applied to illumination of water dripping, water spattering, water coagulating place in ships, such as oven cabin, dry cabin, tunnel, pipeline and weather deck etc..
Products characteristic
1. The shell adopts good quality steel plate tensioned, lampshade adopts injection of PC, and has the seal structure.
2. In order to prevent from electric shocking, equipped with a copper earthing rod with mark in the lights.
3. Plug-in type lamp holder, equipped wiring terminal inside, convenient to connect.
4. The lamp equipped Bl5d lamp holder, used for 24V/15W emergency bulb, the edge of lampshade marks the marking,remark clear that need the emergency device when order.
5. Equipped compensating capacitance inside the lamp, also has the good effect of start.
Adopt standard
Conform to CB/3857-1999 standard.
Production authentication
Approval by CCS(China Classification Society), certificate number 00515Q20619ROM.
Specifications
| Type | Power | Voltage | Power factor | Lamp holder | Protection class | Weight | Material |
| JCY22-2 | 2×20W | 110V/60Hz 220V/50Hz 220V/60Hz | >0.85 | G13 | IP56 | 4.2kg | - |
| JCY22-2E | 4.2kg | With emergency | |||||
| JCY22-2EF | 4.71kg | Withem emergency and guard | |||||
| JCY32-2 | 2×30W | 9.0kg | - | ||||
| JCY32-2E | 9.0kg | With emergency | |||||
| JCY32-2EF | 9.0kg | Withem emergency and guard | |||||
| JCY42-2 | 2×40W | 7.5kq | - | ||||
| JCY42-2E | 7.5kq | Withem ergency | |||||
| JCY42-2EF | 8.95kg | Withem emergency and guard |
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
