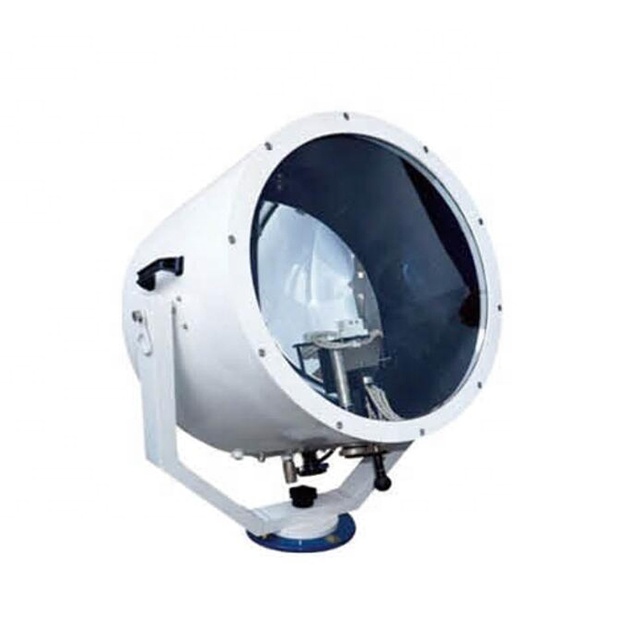

2000W 3000W ABS boat ship marine lighting Suez canal search light
The scope of application
Applied to illuminations of ship pass through the Suez Canal and the narrow sea-route when night navigation, can search and illuminate the obstacle on the surface.
Products characteristic:
1. The lamp body adopts good quality aluminium alloy, the weight is light, good quality toughened glass lampshade.
2. Design with two bulbs structure, has rotary switch inside, can change between the bulbs under the electricity
3. Two hemisphere reflector, can adjust the reflect effect between the + 50 horizontally on.
4. Equipped safe vent-valve under the lamp canister, can ensure the air pressure balance in and out the lamp canister.
5. The lamp can bend for ± 30° , adjust ± 180° horizontally.
6. Parallel light-beam, far illumination distance.
7. Conform to (GRADE ENTRY NORMS FOR STEEL SHIPS )and the request of (SUEZ CANAL NAVIGATION RULES)
8. Patent No.: 201520694772.X
Specifications
| Type | Voltage | Illuminant | Lamp holder | Power | Luminous flux | Irradiate distance | Protection class | Cable outside diameter | Weight |
| TZ5 | 220V/50Hz 220V/60Hz | Tungsten halogen light | GY16 | 110V 2000W 110V 3000W | 530001m | ≥1800m | IP56 | φ14-φ16 | 29kg |
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
