Home > Products > 12v electric boat capstan winch AC vertical windlass JV911H-X1

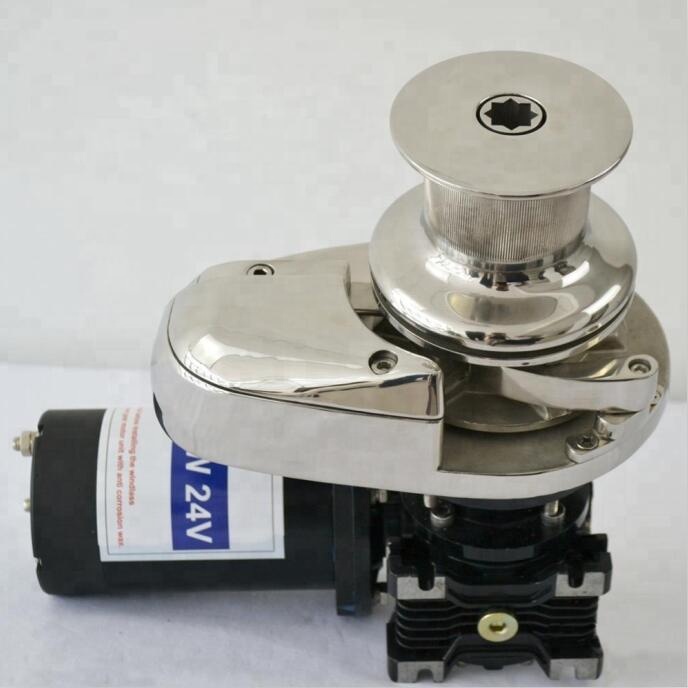

12v electric boat capstan winch AC vertical windlass JV911H-X1
Click on the image to view the original image
Product： views：212v electric boat capstan winch AC vertical windlass JV911H-X1
Branch： JUVI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:00
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
JV911H-X1
Power Source:
Electric
Application:
Boat
Product name:
AC vertical windlass
Max. Load (kg):
700-1200
Motor:
2000W
Power Supply:
220V/380V
Chain Size:
8mm
Weight:
33 kg
Line Speed:
20m/min
Max. Pull (kg):
1500-2500
No Load Absorption:
8A
Rope Size:
16-20mm
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard packing
Port
Shanghai/Guangzhou/Shenzhen
Lead Time:
Quantity(Pieces)1 - 30 >30
Est. Time(days)2To be negotiated
Product Description
AC
vertical windlass		Model

Net Weight

(kg)

Power

Supply

Motor

Max. Load

(kg)

Max. Pull

 (kg)

Line

Speed

Rope Size

Chain Size

JV911-X131220V/380V2000W700-12001500-250020m/min18-22mm8/10mm
JV911H-X1332000W700-12001500-2500
JV911-X2353000W1000-1502300-2800
JV911H-X2373000W1000-1502300-2800
JV1011-X1322000W700-12001500-250020-26mm10/12/13mm
JV1011H-X1352000W700-12001500-2500
JV1011-X236.53000W1000-1502300-2800
JV1011H-X238.53000W1000-1502300-2800





1. Vertical design suits powerboats or sailboats and can be utilized for anchor ropes, as docking capstans on larger craft, or auxiliary line hauling.

2. High-quality polished 316 stainless steel surface makes for a beautiful appearance.

3. Simplified installation by modular design and precise alignment of gearbox to the top works utilizing marine-grade stainless steel studs.

4. Rope-chain gypsy, choice of two gypsy.

5. Fit include hand-switch, foot-switch, control box and wrench.

6. 3 year warranty.
