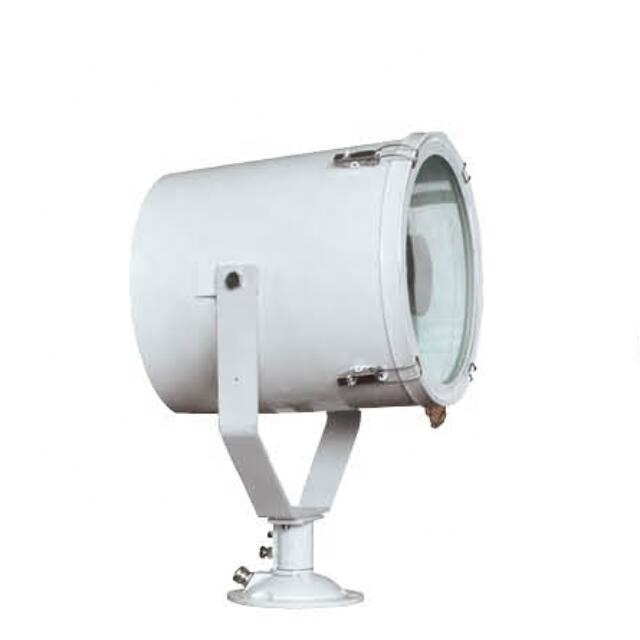

TG28-A 2000w marine search remote control search light GY16 lamp holer
The scope of application
Applied to Signal exchange between ships, the visibility distance is 15n.m.
Products characteristic
1. Equipped focus nut under the light shell, can adjust lighting focus.
2. Inside the light equips grid, joy stick, and can send the lighting signal according to the requirement.
3. Can rotate for 180° horizontally, and pitching 30° by the lift-hole or controller.

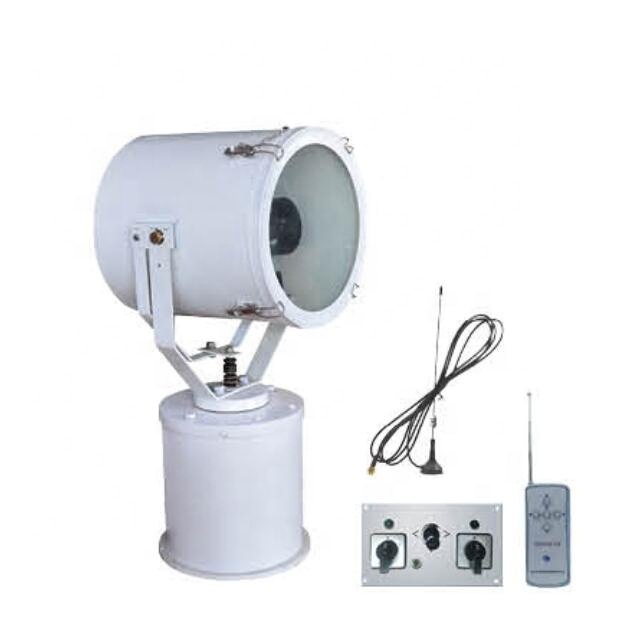

4. Products with wireless remote control, can control the operation of the wireless 100 m lamp assembly, the leading domestic Line level, and through product design patents.
5. Patent No.: ZL 201420804513.3.
Specifications
| Type | Voltage | Power | Luminous flux | Lamp holder | Illuminant | Cable outside diameter | Protection class | Weight |
| TG26-B | 220V/50HZ 220V/60HZ | 300W | 6900 | GY9.5 | Tungsten halogen light | φ10-φ12 | IP56 | 40kg |
| 500W | 12500 | |||||||
| TG27-B | 1000W | 23000 | GX9.5 | 40kg | ||||
| TG28-B | 2000W | 53000 | GY16 | 70kg |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label,Color Inner Box,etc |
| Delivery | By Courier,By Air,By Sea |
| Port | Ningbo,Shanghai,Guangzhou |
