Home > Products > 12V 24V yacht drum anchor winch rope capstan JVVC-001

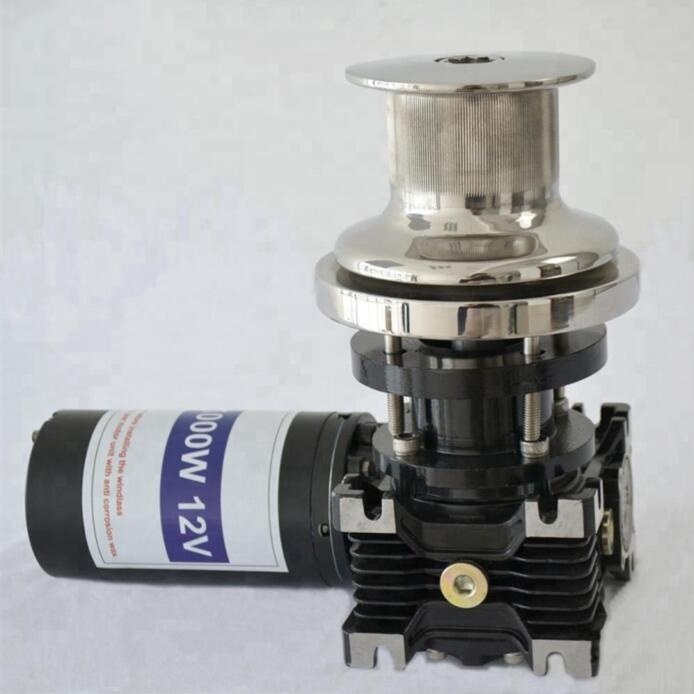

12V 24V yacht drum anchor winch rope capstan JVVC-001
Click on the image to view the original image
Product： views：312V 24V yacht drum anchor winch rope capstan JVVC-001
Branch： JUVI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:00
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
JVVC-001
Power Source:
Electric
Application:
Boat
Product name:
12V 24V yachtdrum anchor winch rope capstan
Max. Load (kg):
160
Max. Pull (kg):
400
Power Supply:
12V/24V
Motor:
600W
Weight:
10KG
Line Speed:
25m/min
Rope size:
12mm
Material:
corrosion resistant material
usage:
Carrying Heavy Goods
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Neutral packing
Port
Shanghai/Guangzhou/Shenzhen
Lead Time:
Quantity(Pieces)1 - 10 >10
Est. Time(days)7To be negotiated
Product Description

12V 24V yacht  drum anchor winch rope capstan

Model

Net Weight

 (kg)

Power SupplyMotor

No Load

Absorption

Max. Load

 (kg)

Max. Pull

(kg)

Line SpeedRope SizeChain Size
JVVC-0019.512V/24V600W 19040025m/min12mm-
JVVC-0021412V/24V1000W 35068025m/min14-16mm-
JVVC-0052112V/24V1600W 520123020m/min16-20mm-
JVVC-00632380V2000W 680176020m/min20-24mm-
JVVC-00748380V3000W 890213020m/min24-30mm-
JVVC-003712V/24V400W30A12542030m/min12mm6-7mm
JVVC-004912V/24V600W60A21060025m/min12mm6-7mm



Features:

1.Designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels.

2.Line hauling from any direction.

3.Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade stainless steel bolts.

4.Compact, reliable gearbox, made of corrosion resistant material.

5.Heavy duty, dual direction motors, designed for marine winches.

6.Easily disassembled for servicing.

7.Fit include hand-switch, foot-switch, solenoid ,relay and circuit breaker.
