Home > Products > 12V 24V SH1000 electric horizontal capstan winch windlass 1000W

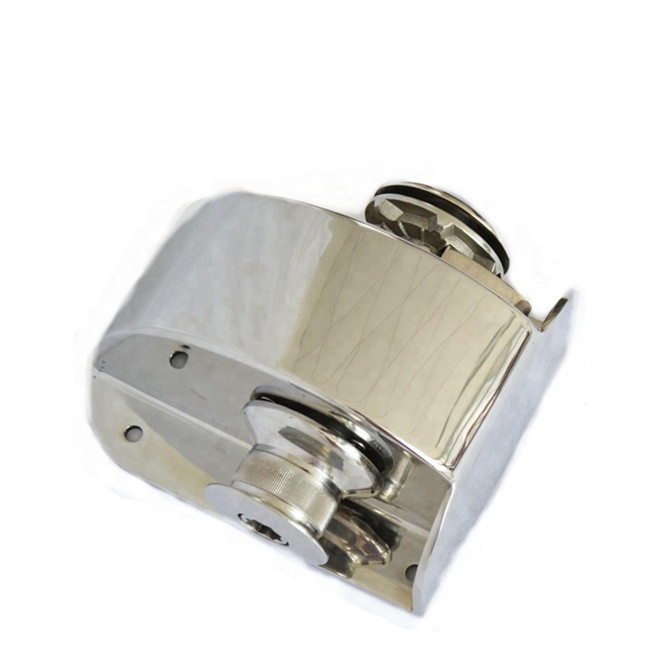

12V 24V SH1000 electric horizontal capstan winch windlass 1000W
Click on the image to view the original image
Product： views：212V 24V SH1000 electric horizontal capstan winch windlass 1000W
Branch： JUVI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:00
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
SH1000
Power Source:
Electric
Application:
Cranes
Product name:
electric horizontal capstan electric windlass 12V 24V
Max Pressure(bar):
1000W
Max. Load (kg):
350
Max. Pull (kg):
750
Max.Line Speed(m/min):
25m/min
Power supply:
24V 12V
Chain Size:
8mm
Motor:
vertical motor
Weight:
18kg
Material:
stainless steel 316
Supply Ability
Supply Ability:
100000 Pair/Pairs per Month
Packaging & Delivery
Packaging Details
netural packing
Port
Shanghai/Ningbo/Guangzhou/Shenzhen
Lead Time:
Quantity(Pieces)1 - 10 >10
Est. Time(days)7To be negotiated
Product Description
Model

Net Weight

(kg)

Power

Supply

Motor

No Load

Absorption

Max. Load

(kg)

Max. Pull

(kg)

Line SpeedRope SizeChain Size
SH40013.512V/24V600W  60022m/min6/7mm
SH1000181000W  75025m/min8mm
JVH-0111612V/24V600W50A19060030m/min12-14mm6-7mm
JVH-01225.51000W90A35075025m/min14-16mm8-10mm
JVH-013321400W125A520110025m/min18-20mm
JVH-014341600W140A660140020m/min20-24mm10-12mm
JVH-01536220V/380V2000W6A900200010-13mm
JVH-016383000W9A1200250010-13mm
EB20008.512V/24V    6 feet/min
EB300011
GB001H160 2200W 19060030m/min 12.5mm
GB002H260 3500W 35075025m/min 14mm
GB003H320 4000W 5201100 16mm
GB004H410 5000W 660140020m/min 17.5mm
GB005H490 6000W 9002000 19mm
GB006H530 7500W 12002500 20.5mm



1. Available in high or low profile, with different drives and recommended for boats up to 70m. can use chains up to 20.5mm with stud link in diameter.

2. Optional accessories: on-off valve, pressure relief valve, flow control valve, foot switch.
