Overview
Quick Details
- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Model Number:
- JV611H
- Power Source:
- Electric
- Application:
- Boat
- Capacity:
- 700kg
- Product name:

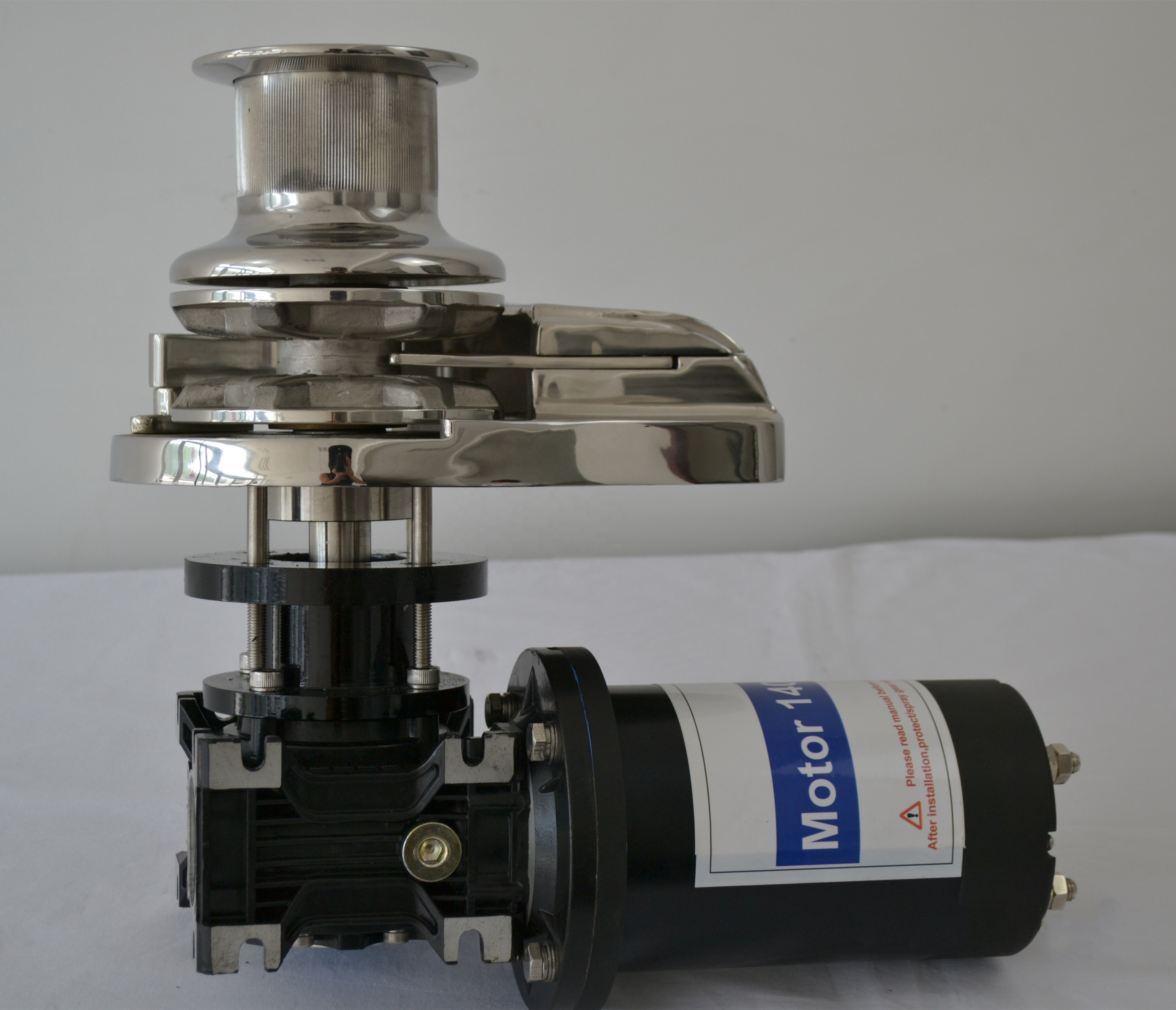

- Boatlectric vertical anchor windlass
- Motor(W):
- 400, 600, 800, 1200,1600, 2000
- Power Supply:
- 12V/24V
- Max. Load (kg):
- 125, 130, 186, 210, 250, 280, 400, 660,
- Max. Pull (kg):
- 420, 450, 560, 600, 700, 1200, 1600, 1900
- Line Speed(m/min):
- 20, 25, 30
- Rope Size(mm):
- 12-14, 18-22, 18-20, 20-26
- Chain Size(mm):
- 6/7, 7/8, 8/10, 8/10/12, 10/12/13
- No Load Absorption:
- 30A, 60A, 100A, 120A, 170A
- Weight(kg0:
- 9.7-27.5
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 48X43X23 cm
- Single gross weight:
- 20.0 kg
- Package Type:
- Standard export packaging
- Lead Time:
Quantity(Set) 1 - 20 >20 Est. Time(days) 1 To be negotiated
