Home > Products > JV611H 12v boat electric vertical anchor winch with drum capstan

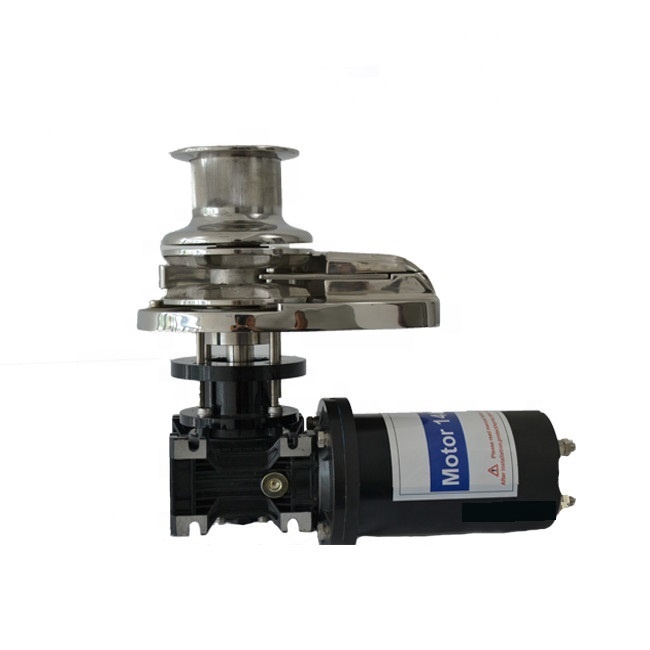

JV611H 12v boat electric vertical anchor winch with drum capstan
Click on the image to view the original image
Product： views：2JV611H 12v boat electric vertical anchor winch with drum capstan
Branch： JUVI
Size： 48X43X23 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:00
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
JV611H
Power Source:
Electric
Application:
Boat
Capacity:
700kg
Product name:
Boatelectric vertical anchor winch
Motor(W):
400, 600, 800, 1200,1600, 2000
Power Supply:
12V/24V
Max. Load (kg):
125, 130, 186, 210, 250, 280, 400, 660,
Max. Pull (kg):
420, 450, 560, 600, 700, 1200, 1600, 1900
Line Speed(m/min):
20, 25, 30
Rope Size(mm):
12-14, 18-22, 18-20, 20-26
Chain Size(mm):
6/7, 7/8, 8/10, 8/10/12, 10/12/13
No Load Absorption:
30A, 60A, 100A, 120A, 170A
Weight(kg0:
9.7-27.5

Packaging & Delivery

Selling Units:
Single item
Single package size:
48X43X23 cm
Single gross weight:
20.0 kg
Package Type:
Standard export packaging
Lead Time:
Quantity(Set)1 - 20>20
Est. Time(days)1To be negotiated
Product Description

JV611H 12v boat electric vertical anchor winch with drum capstan

DC

Vertical

Windlass

Model

Net

Weight

(kg)

Power

Supply

Motor

No Load

Absorption

Max.

Load
(kg)

Max.

Pull

(kg)

Line

Speed

Rope Size

Chain

Size

JV4119.712V/24V400W30A12542030m/min12-14mm6/7mm
JV411H10.5130450
JV51110600W60A18656025m/min
JV511H11210600
JV61116.5800W100A25070020m/min18-22mm7/8mm
JV611H18280700
JV71122.51200W120A40012008/10mm
JV711H24400120018-20mm
JV811241600W170A660160020-26mm8/10/12mm
JV811H25.51600
JV101124.52000W190010/12/13mm
JV1011H27.51900

 Features:

1. Vertical design suits powerboats or sailboats and can be utilized for anchor ropes, as docking capstans on larger craft, or auxiliary line hauling.

2. High-quality polished 316 stainless steel surface makes for a beautiful appearance.

3. Simplified installation by modular design and precise alignment of gearbox to the top works utilizing marine-grade stainless steel studs.

4. Rope-chain gypsy, choice of two gypsy.

5. Fit include hand-switch, foot-switch, control box and wrench.

6. One year warranty.

Other products

Company Information

1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.







Advantages





Customers Visiting





Packaging & Shipping

I. Packaging

1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.



FAQ

Q1: Why we choose you?

  11 professional engineers can provide overall solution services.

  13 years specialising in marine deck equipment .

  18 long-term cooperation supporting factories.

  24 hours a day after-sale technical support .

Q2: What kind of payments do you accept?

 T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..

Q3: How about the Delivery Time?

  We could finish the production within 30 days

Q4: What"s the MOQ?

   MOQ is 1 set.
