Click on the image to view the original image
- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Part:
- Marine Light
- Product Name:
- marine navigation light
- Level arc:
- 225°
- Visibility:
- 6n.m
- Lamp Holder:
- P28S
- LightSource:
- LED
- Weight:
- 8.0kg
- Color:
- Red
- Protection class:
- IP55
- Cable outside Diameter (mm):
- 10-12
- Application:
- boat/port/vessel/ship/craft
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 20X15.5X44 cm
- Single gross weight:
- 8.0 kg
- Package Type:
- netural packing

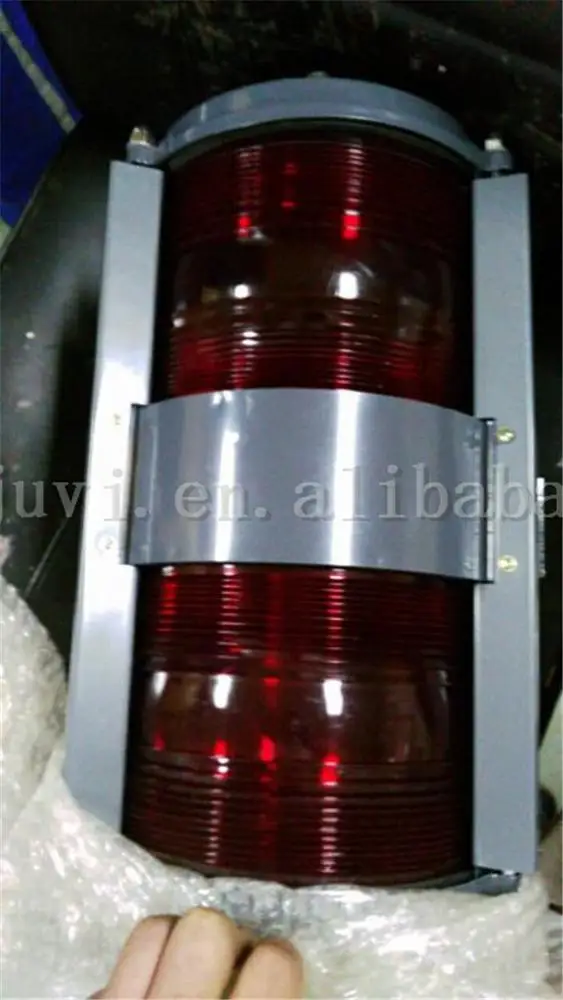

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 1 >1 Est. Time(days) 2 To be negotiated
CXH2-10B Promotional Marine Boat Red Port Light Led Navigation Signal Light
The scope of application
1. The scope of application.
2. Applied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.
Products characteristic
1. The shell is made of high-strenth engineering plastic PA+GF, the lampshade adopts injection of PC, lens hood adopts good quality stainless steel.
2. The signal lights have the whole seal structure, it is waterproof under the bad environment
3. The connection between the lamp holder and the light base is clamshell type, it is easy to unscrew the top cover and replace the bulb, this structure is more stable than the previous plug-in type.
4. The signal lights adopt the signal light"s bulb which conform to the ship norm. and the average life is more than 700h.
5. The signal lights can work normally under the temperature -30℃-55℃.
Adopt standard
1. Conform to (THE INTERNATIONAL REGULATIONS FOR PREVENTINGS COLLISION AT SEA 1972) and (GRADE ENTRY NORMS FOR STEEL SHIPS)
2. Conform to the international standard IEC60598-1-2008
3. Conform to the standard of marine electric signal light"s technical
Specifications
| Type | Visibility | Level arc | Lamps holder | Bulb | Protection class | Cable outside diameter | Color | Weight |
| CXH1-10B | 3n.m | 112.5° | P28S | 24V/2×60W60cd 110V/2×60W60cd 220V/2×60W60cd | IP55 | φ12-φ16 | Green | 8.0kg |
| CXH2-10B | 3n.m | 112.5° | Red | 8.0kg | ||||
| CXH3-10B | 6n.m | 225° | Transparent | 8.0kg | ||||
| CXH4-10B | 3n.m | 135° | Transparent Yellow | 8.0kg | ||||
| CXH6-10B | 3n.m | 360° | Red Green Transparent | 8.0kg |
| Packaging Detail | Label + Inner Box + Export Carton |
| Common Packing | Label,Color Inner Box,etc |
| Delivery | By Courier,By Air,By Sea |
| Port | Ningbo,Shanghai,Guangzhou |
