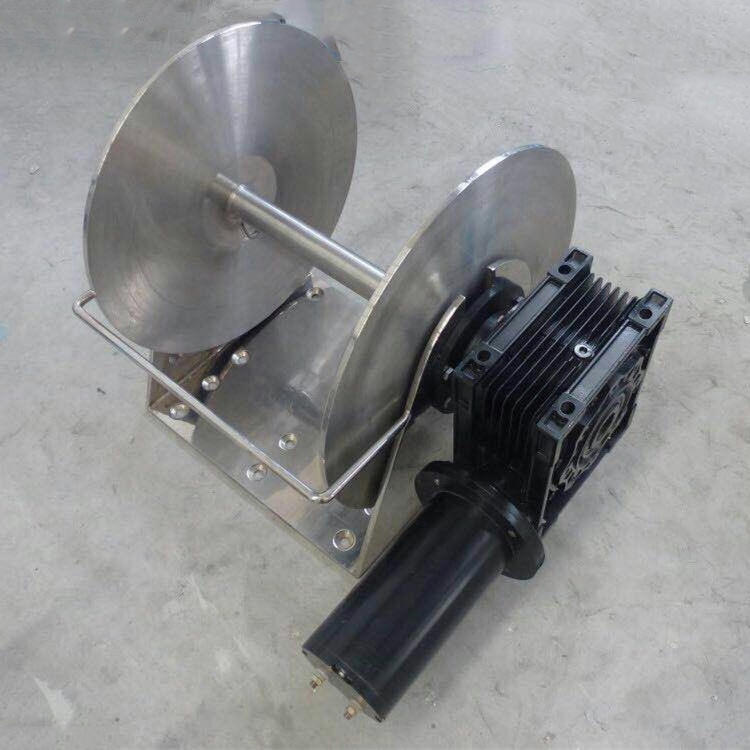

JVW-012 Boat portable capstan anchor drum winch 12v/24v
Drum Winch | Model | Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| JVW-010 | 9 | 12V/24V | 400W | 30A | 120 | 320 | 30m/min | 6mm | 5-6mm | |
| JVW-011 | 16 | 600W | 50A | 190 | 600 | 6-8mm | 5-6mm | |||
| JVW-012 | 20 | 1000W | 90A | 350 | 750 | 25m/min | 8-10mm | 6-8mm | ||
| JVW-013 | 30 | 1400W | 120A | 480 | 900 | 20m/min | 10-14mm | 8-10mm | ||
| JVW-014 | 43 | 1600W | 135A | 680 | 1200 | 10-14mm | 8-10mm | |||
| JVW-015 | 115 | 24V/48V | 2500W | 105A | 980 | 1800 | 24-30mm | 10-13mm | ||
| JVW-010S | 12 | 12V/24V | 400W | 30A | 120 | 320 | 30m/min | 6mm | 5-6mm | |
| JVW-011S | 17.5 | 600W | 50A | 190 | 600 | 6-8mm | 5-6mm | |||
| JVW-012S | 22 | 1000W | 90A | 350 | 750 | 25m/min | 8-10mm | 6-8mm | ||
| JVW-013S | 35 | 1400W | 120A | 480 | 900 | 20m/min | 10-14mm | 8-10mm | ||
| JVW-014S | 44 | 1600W | 135A | 680 | 1200 | 10-14mm | 8-10mm | |||
| JVW-015S | 119 | 24V/48V | 2500W | 105A | 980 | 1800 | 24-30mm | 10-13mm |
Perfect anchoring system for fishing boat.
Heavy duty motor, high speed, silent operation with bearing.
Constructed from 316 marine grade stainless steel.
Simply drive the boat to where you want to fish, push a button and the anchor is lowered quickly without bother.
You can lower and retrieve your anchor rope using our winches at a rate between 80 and 90 feet per minute.
Available in a range of capacities, and there’s one designed just to fit into your boat.
Features:
1. The fully sealed gearbox is driven by a vertically mounted, permanent magnet motor.
2. Gearbox housing are marine grade alloy and drum is stainless steel.
3. The speed of retrieval increases with each revolution.
4. The rope and chain does not twist and tangle causing the unit to malfunction.
5. The motor can be mounted at 30, 45 and 90 degrees to suit the configuration of the anchor well.
6. To protect the motor, the circuit breaker will trip out if there is a power overload (for example if the anchor is stuck on the bottom).
7. Easily disassembled for servicing.
8. Fit include hand-switch, solenoid, circuit breaker.
1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
