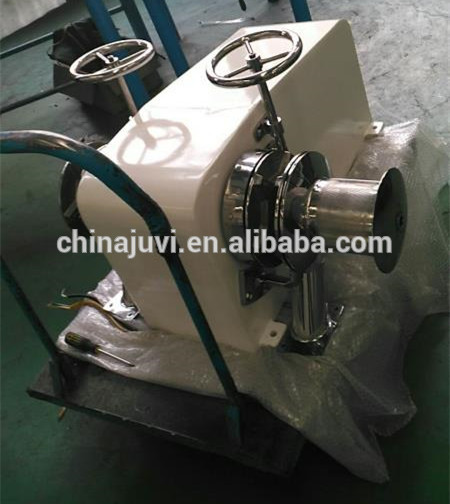

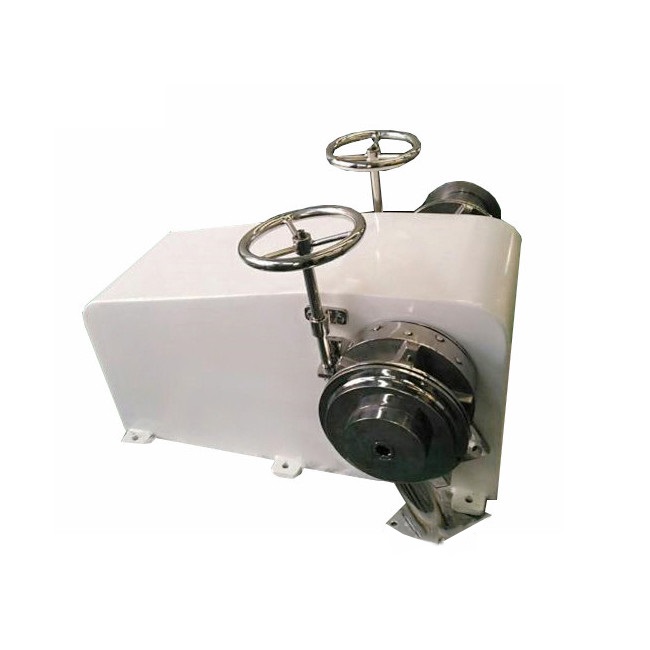

GB005H Boat ship winch horizontal anchor winch for sale
GB Series Horizontal Windlass | Model | Net Weight (kg) | Motor | Max. Load | Max. Pull (kg) | Line Speed | Chain Size | Power supply |
| GB001H | 160 | 2200W | 190 | 600 | 30m/min | 12.5mm | 3PH/50HZ | |
| GB002H | 260 | 3500W | 350 | 750 | 25m/min | 14mm | ||
| GB003H | 320 | 4000W | 520 | 1100 | 16mm | |||
| GB004H | 410 | 5000W | 660 | 1400 | 20m/min | 17.5mm | ||
| GB005H | 490 | 6000W | 900 | 2000 | 19mm | |||
| GB006H | 530 | 7500W | 1200 | 2500 | 20.5mm |
Features:
1. Twin gypsy, twin brakes, one capstan, but you also choose twin capstans.
2. Independent operation of capstans and gypsy by declutching the drive.
3. Simple deck mounted installation with no under deck parts.
4. Simplified maintenance with ability to strip the running gear (chain-wheel and drum) from the windlass without disturbing the windlass mounting.
1. Marine Lighting: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine Deck Equipments: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine Deck Mooring: Anchor, Anchor Chain.
4. Marine Life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
