Click on the image to view the original image
- Place of Origin:
- Chongqing, China
- Brand Name:
- JUVI
- Model Number:
- JVVC-001
- Power Source:
- Electric
- Application:
- Boat
- Capacity:
- 190kg
- Product name:

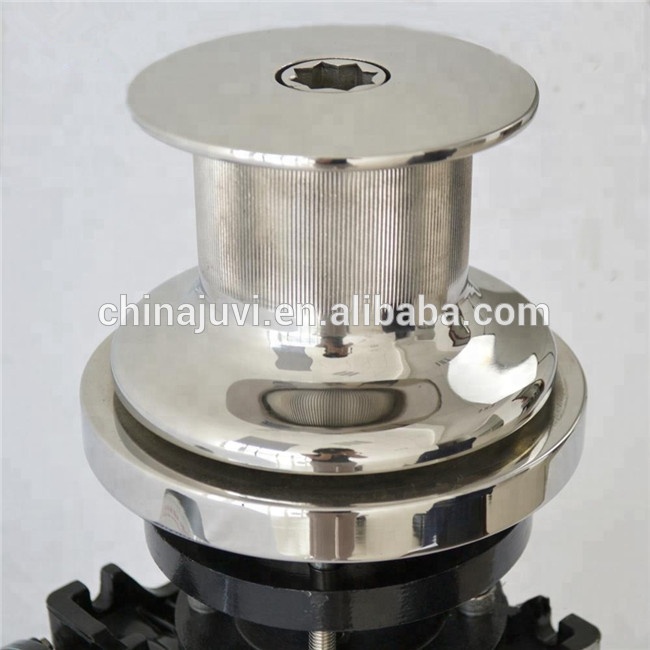

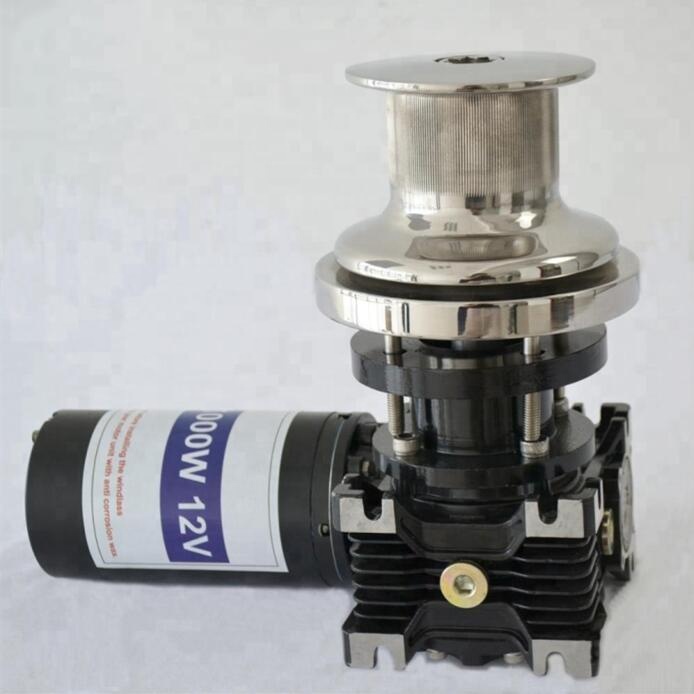

- 12V electric boat capstan winch
- Max. Load (kg):
- 190
- Max. Pull (kg):
- 400
- Rope size:
- 12mm
- Motor:
- 600W
- Weight:
- 9.2KG
- Line Speed:
- 25m/min
- Material:
- Stainless Steel 316
- Power supply:
- 12V 2V
- Usage:
- boat/yacht/marine/ship
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 270X100X80 cm
- Single gross weight:
- 10.0 kg
- Package Type:
- Neutral packing

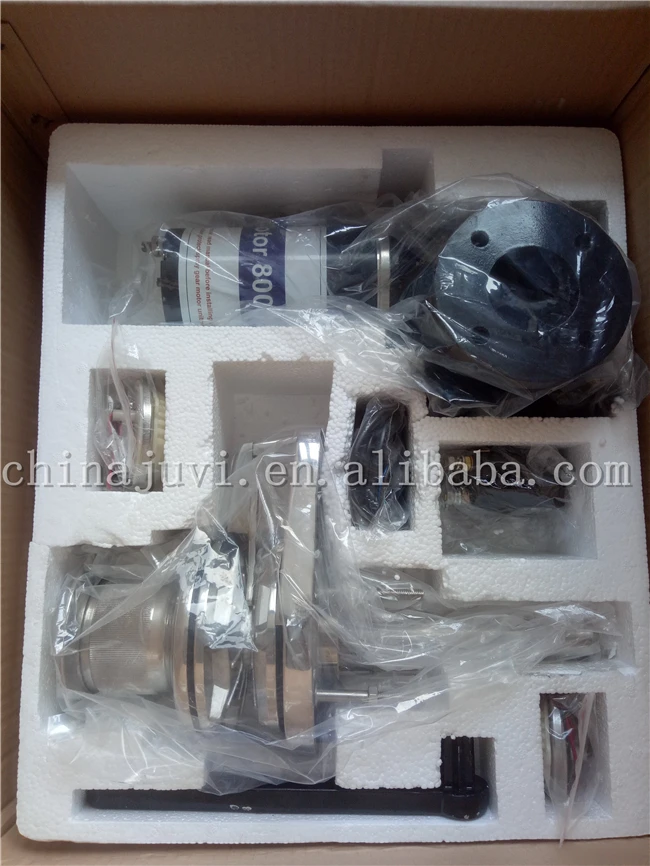

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 30 >30 Est. Time(days) 5 To be negotiated
12V electric boat capstan winch 600W for boat
| Model | Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
| JVVC-001 | 9.5 | 12V/24V | 600W | 190 | 400 | 25m/min | 12mm | - | |
| JVVC-002 | 14 | 12V/24V | 1000W | 350 | 680 | 25m/min | 14-16mm | - | |
| JVVC-005 | 21 | 12V/24V | 1600W | 520 | 1230 | 20m/min | 16-20mm | - | |
| JVVC-006 | 32 | 380V | 2000W | 680 | 1760 | 20m/min | 20-24mm | - | |
| JVVC-007 | 48 | 380V | 3000W | 890 | 2130 | 20m/min | 24-30mm | - | |
| JVVC-003 | 7 | 12V/24V | 400W | 30A | 125 | 420 | 30m/min | 12mm | 6-7mm |
| JVVC-004 | 9 | 12V/24V | 600W | 60A | 210 | 600 | 25m/min | 12mm | 6-7mm |
Features
1.Designed for simple, low cost anchor recovery on smaller boats and rope hauling on larger vessels.
2.Line hauling from any direction.
3.Simplified through deck installation by modular design and precise alignment of gearbox to the top works utilising marine-grade stainless steel bolts.
4.Compact, reliable gearbox, made of corrosion resistant material.
5.Heavy duty, dual direction motors, designed for marine winches.
6.Easily disassembled for servicing.
7.Fit include hand-switch, foot-switch, control box and wrench.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
