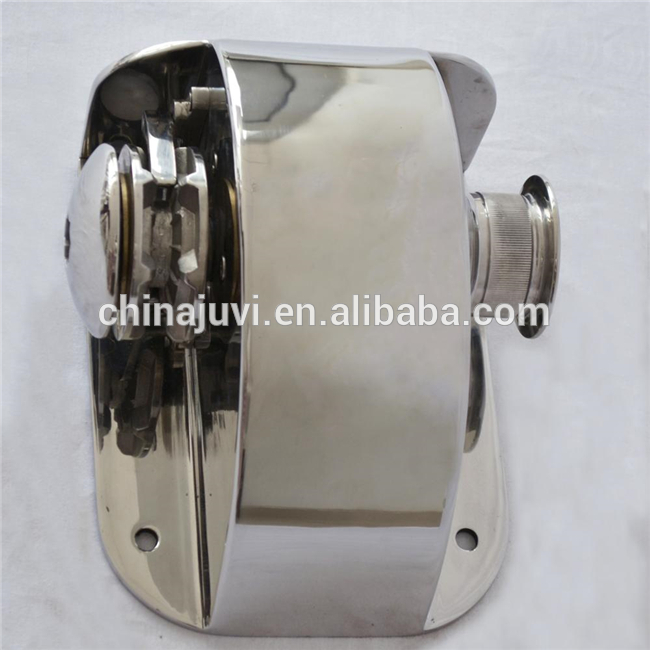

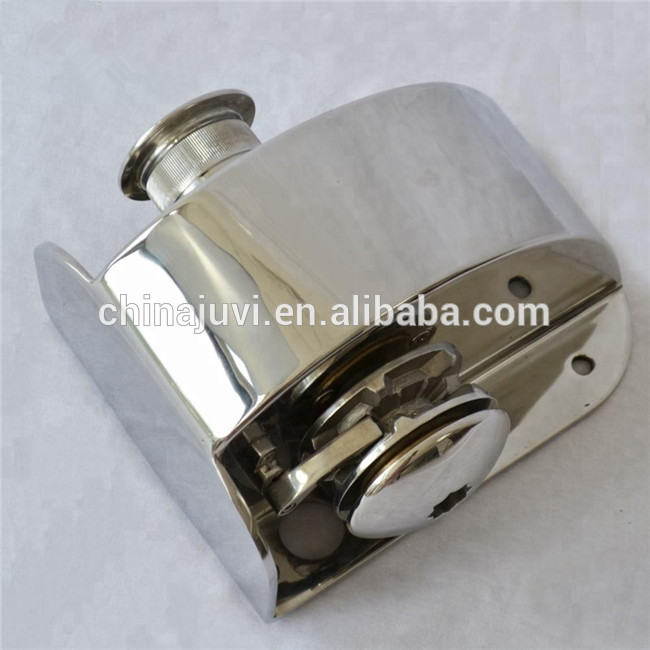

Horizontal windlass |
| Net Weight (kg) | Power Supply | Motor | No Load Absorption | Max. Load (kg) | Max. Pull (kg) | Line Speed | Rope Size | Chain Size |
SH400 | 13.5 | 12V/24V | 600W |
| 210 | 600 | 22m/min | 6/7mm |
| |
SH1000 | 18 | 1000W |
| 350 | 750 | 25m/min | 8mm |
| ||
JVH-011 | 16 | 12V/24V | 600W | 50A | 190 | 600 | 30m/min | 12-14mm | 6-7mm | |
JVH-012 | 25.5 | 1000W | 90A | 350 | 750 | 25m/min | 14-16mm | 8-10mm | ||
JVH-013 | 32 | 1400W | 125A | 520 | 1100 | 25m/min | 18-20mm | |||
JVH-014 | 34 | 1600W | 140A | 660 | 1400 | 20m/min | 20-24mm | 10-12mm | ||
JVH-015 | 36 | 220V/380V | 2000W | 6A | 900 | 2000 | 10-13mm | |||
JVH-016 | 38 | 3000W | 9A | 1200 | 2500 | 10-13mm |
1. All the outside parts is stainless steel, fully waterproof and rustproof.
2. Manual free-fall system.
3. Easy and speed installation, vertical motor allowing installation above the deck.
1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.
2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)
3. Marine deck mooring: Anchor, Anchor chain.
4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.
5. Customized products according to customers" request.
I. Packaging
1.Wooden Case; 2.Iron Frame; 3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.
Q1: Why we choose you?
11 professional engineers can provide overall solution services.
13 years specialising in marine deck equipment .
18 long-term cooperation supporting factories.
24 hours a day after-sale technical support .
Q2: What kind of payments do you accept?
T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..
Q3: How about the Delivery Time?
We could finish the production within 30 days
Q4: What"s the MOQ?
MOQ is 1 set.
