Hydraulic winch small electric winch vertical windlass JVHP1011H
Click on the image to view the original image
Product： views：2Hydraulic winch small electric winch vertical windlass JVHP1011H
Branch： JUVI
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-11-19 19:00
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
JUVI
Model Number:
JVHP1011H
Power Source:
Hydraulic
Application:
Boat
Product name:
Hydraulic winch small electric winch vertical windlass
Max Pressure(bar):
200
Flow Rate(l/min):
20-40
Max.Pull(kg):
1800
Working Load(kg):
1200
Max.Line Speed(m/min):
10-20
No Load Absorption:
30A
Chain Size(AM2):
12.5mm
Line Speed:
10-20m/min
Weight:
12.3kg
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Neutral packing
Port
Shanghai/Guangzhou/Shenzhen
Lead Time:
Quantity(Pieces)1 - 30 >30
Est. Time(days)7To be negotiated
Product Description

Hydraulic winch small electric winch vertical windlass

ModelMax. Pull (kg)Line SpeedChain SizeLift Working Load
(kg)

Max Pressure

(bar)

Flow Rate (l/min)
JVHP1011H180010-20m/min12.5mm120020020-40
JVHP1012H200010-20m/min14mm150025-50
JVHP1013H260010-15m/min16mm200028-60
JVHP1014H35008-15m/min17.5mm280028-60



Features:

1.  Stainless steel vertical windlass.

2.  Available in high or low profile, with different drives and recommended for boats up to 70m.

3. Can use chains up to 20.5mm with stud link in diameter.

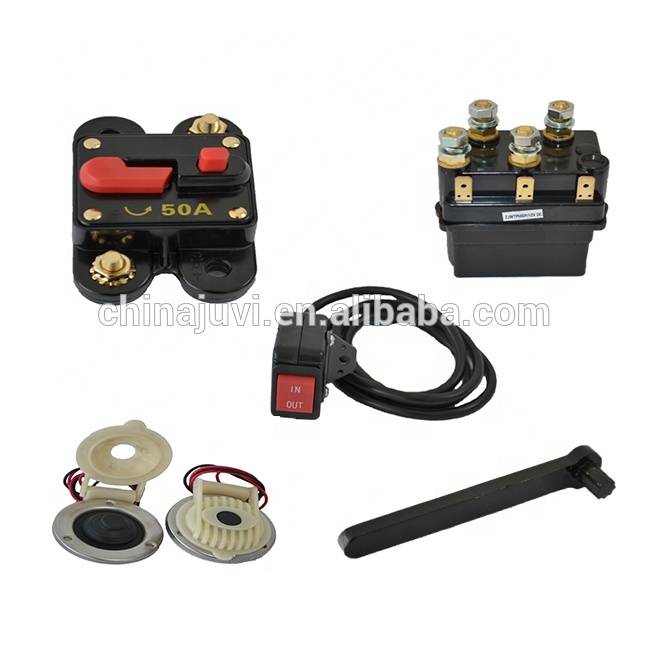

4. Optional accessories: on-off valve, pressure relief valve, flow control valve, foot switch.

Other products

Company Information

1. Marine ship yacht boat light: Navigation signal light, Incandescent light, Fluorescent light, Searchlight, Explosion-proof light etc.

2. Marine deck: Winch, Windlass, Capstan (AC, DC, Vertical, Horizontal, Electric, Hydraulic etc.)

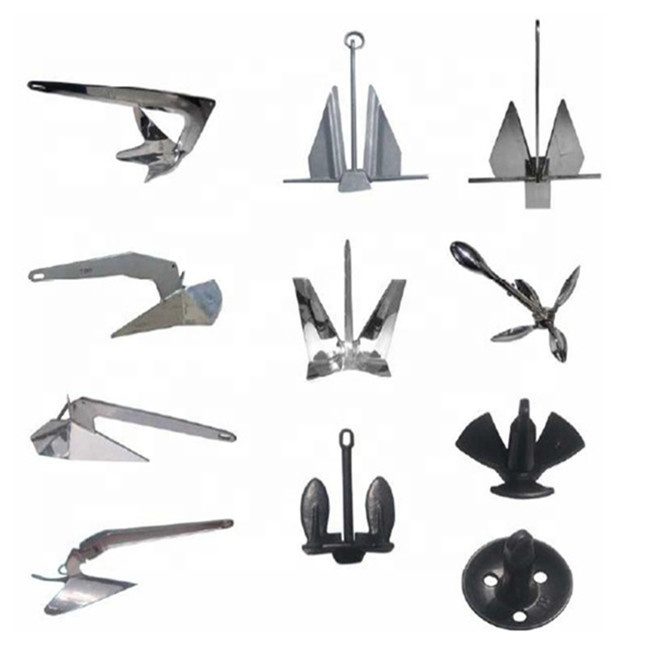

3. Marine deck mooring: Anchor, Anchor chain.

4. Marine life-saving: Rescue boat, Life Jacket, Buoy etc.

5. Customized products according to customers" request.







Advantages





Customers Visiting





Packaging & Shipping

I. Packaging

1.Wooden Case;   2.Iron Frame;    3.According to customers" request;
II. Shipping
By Express/ Air/ Sea/ Train.



FAQ

Q1: Why we choose you?

  11 professional engineers can provide overall solution services.

  13 years specialising in marine deck equipment .

  18 long-term cooperation supporting factories.

  24 hours a day after-sale technical support .

Q2: What kind of payments do you accept?

T/T, L/C, Western Union, D/A, D/P, MoneyGram, Paypal etc..

Q3: How about the Delivery Time?

  We could finish the production within 30 days

Q4: What"s the MOQ?

   MOQ is 1 set.
